Supero SuperServer 5017R-MF User Manual

Supermicro superserver user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

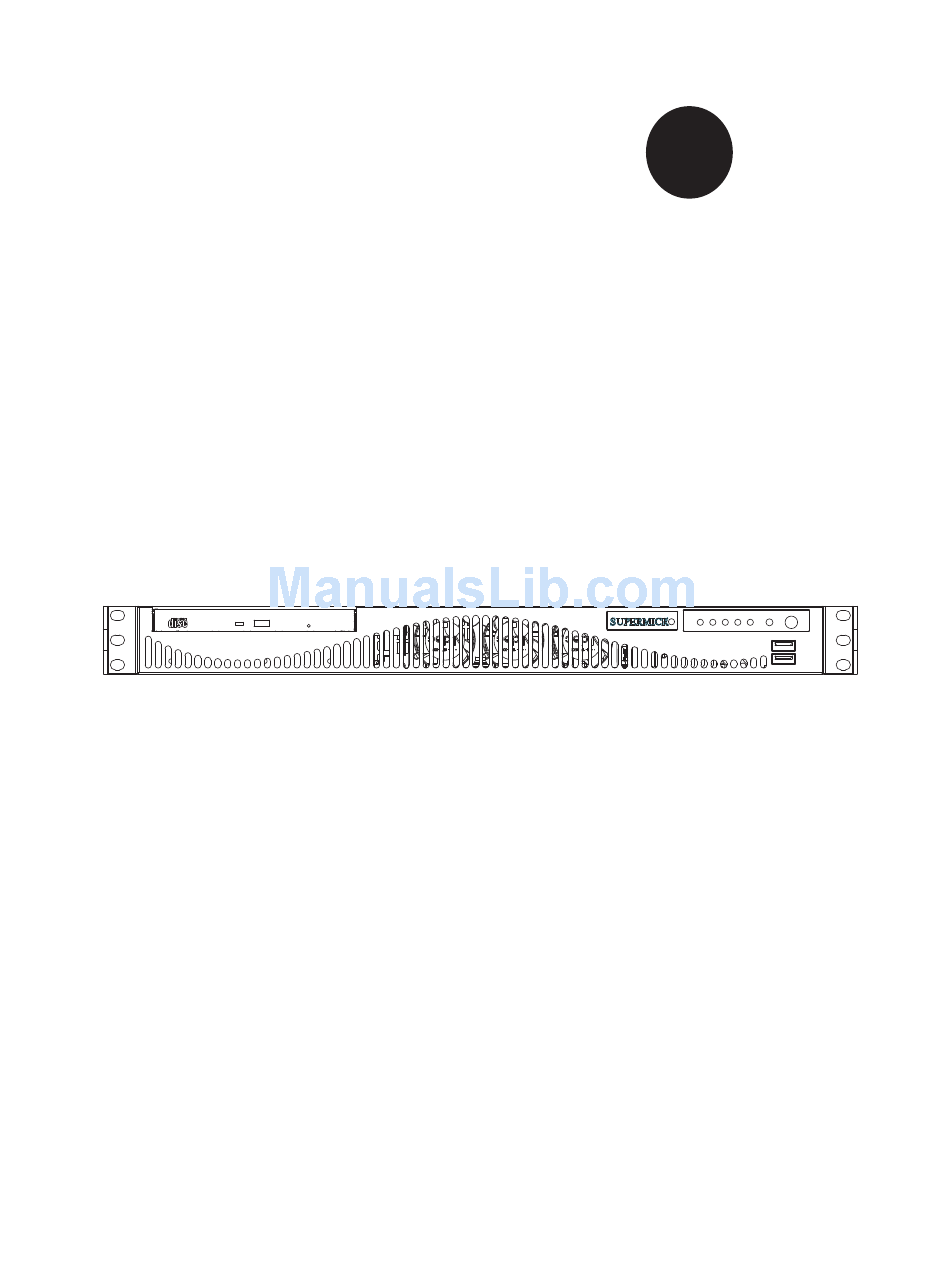

S
UPER
®
S
S
UPER
ERVER
5017R-MF
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading

Related Manuals for Supero SuperServer 5017R-MF

Summary of Contents for Supero SuperServer 5017R-MF

  • Page 1 UPER ® UPER ERVER 5017R-MF USER’S MANUAL...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    SuperServer 5017R-MF. Installation and maintenance should be performed by experienced technicians only. The SuperServer 5017R-MF is a high-end server based on the SC512F-350B 1U rackmount chassis and the Super X9SRi-F single processor serverboard.
  • Page 4 UPER ERVER 5017R-MF User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5017R-MF. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9SRi-F serverboard, including the locations and functions of connections, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 5017R-MF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Motherboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 SCU SATA ...................... 1-2 I/O Ports ......................1-2 Intel ® Intelligent Power Node Manager (NM) ..........1-2 Server Chassis Features ................
  • Page 7 Table of Contents Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Overheat/Fan Fail ................... 3-2 NIC2 ........................ 3-2 NIC1 ........................ 3-2 HDD ......................... 3-3 Power ......................3-3 Chapter 4 System Safety Electrical Safety Precautions ................4-1 General Safety Precautions ................4-2 ESD Precautions .....................
  • Page 8 UPER ERVER 5017R-MF User's Manual Chapter 6 Advanced Chassis Setup Static-Sensitive Devices .................. 6-1 Precautions ..................... 6-1 Control Panel ....................6-2 System Fans ....................6-3 System Fan Failure ..................6-3 Drive Bay Installation/Removal ............... 6-4 Accessing the Drive Bays ................6-4 DVD-ROM Drive Installation ................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 5017R-MF is a high-end server comprised of two main sub- systems: the SC512F-350B 1U server chassis and the X9SRi-F single processor motherboard. Please refer to our web site for information on operating systems that have been certifi...

  • Page 10: Motherboard Features

    ERVER 5017R-MF User's Manual Motherboard Features At the heart of the SuperServer 5017R-MF lies the X9SRi-F, a single processor motherboard based on Intel's C600 chipset. Below are the main features of the X9SRi-F (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    The SC512F-350B is a short depth (14.5") 1U rackmount server chassis. The fol- lowing is a general outline of the main features of the SC512F-350B chassis. System Power When confi gured as the SuperServer 5017R-MF, the SC512F-350B chassis features a single power supply. Serial ATA Subsystem The SC512F-350B chassis is designed to support one internal SATA hard drive.

  • Page 12: System Block Diagram

    UPER ERVER 5017R-MF User's Manual Figure 1-1. Intel C600 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. #0-8 #0-4 #0-7 VR12 #0-3 #0-6 #0-2 6 PHASE #0-5 #0-1 Sandybridge-EP 8 SNB CORE...

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER ERVER 5017R-MF User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    An optional rack rail package is available if you wish to order from Supermicro. Follow the steps in the order given to complete the installation process in a minimal amount of time. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

  • Page 16: Choosing A Setup Location

    UPER ERVER 5017R-MF User's Manual Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation • Allow the hot plug SATA drives and power supply modules to cool before touch- ing them. • Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling. Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera-...

  • Page 18: Installing The System Into A Rack

    Note: the server may be installed as is - rack hardware is optional. Basic Installation Procedure The 5017R-MF server comes with two rack mounting brackets, which are located on each side at the front of the chassis. To mount the system into a rack, simply screw these brackets directly to the front of the rack (two screws for each bracket).

  • Page 19: Installing With Rackmount Kit

    Chapter 2: Server Installation Installing with Rackmount Kit This is a guideline for installing the unit into a rack with the optional rack kit (MCP- 290-00004-03). You should also refer to the installation instructions that came with the rack unit you are using. Be aware that there are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.
  • Page 20 Figure 2-2. Installing Chassis Rails Installing the Rack Rails 1. Determine where you want to place the 5017R-MF in the rack (see Rack and Server Precautions in Section 2-3). 2. Position the fi xed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.
  • Page 21 Installing the Server into a Telco Rack If you are installing the SuperServer 5017R-MF into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.
  • Page 22 UPER ERVER 5017R-MF User's Manual Figure 2-4. Installing the Server into a Telco Rack...

  • Page 23: Checking The Serverboard Setup

    See Chapter 5 for instructions on processor installation. 2. The 5017R-MF server may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots. For details on adding system memory, refer to Chapter 5.
  • Page 24 UPER ERVER 5017R-MF User's Manual Notes 2-10...

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specifi c com- ponents.

  • Page 26: Control Panel Leds

    UPER ERVER 5017R-MF User's Manual Control Panel LEDs The control panel located on the front of the SC512F-520B chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 27: Hdd

    Chapter 3: System Interface Channel activity for HDDs. This light indicates IDE drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 28 UPER ERVER 5017R-MF User's Manual Notes...

  • Page 29: Chapter 4 System Safety

    System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5017R-MF from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 30: General Safety Precautions

    Keep the area around the 5017R-MF clean and free of clutter. • The 5017R-MF weighs approximately 18 lbs (8.2 kg). When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight. Always keep your back straight and lift with your legs.

  • Page 31: Esd Precautions

    Chapter 4: System Safety • Remove any jewelry or metal objects from your body, which are excellent metal conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present. •...

  • Page 32: Operating Precautions

    ERVER 5017R-MF User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5017R-MF is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed.

  • Page 33: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X9SRi-F motherboard, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 34: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA 2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 35 Chapter 5: Advanced Motherboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate fi...
  • Page 36 UPER ERVER 5017R-MF User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU.

  • Page 37: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard and the heatsink bracket underneath.
  • Page 38 UPER ERVER 5017R-MF User's Manual Figure 5-1. Installing the Heatsink Figure 5-2. Removing the Heatsink Screw #4 Loosen screws in the sequence shown Screw #1 Screw #2 Motherboard Screw #3...

  • Page 39: Connecting Cables

    Chapter 5: Advanced Motherboard Setup Connecting Cables Now that the processors are installed, the next step is to connect the cables to the motherboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 40: I/O Ports

    UPER ERVER 5017R-MF User's Manual Figure 5-1. Front Control Panel Header Pins (JF1) Ground Power LED Vcc/UID Switch HDD LED NIC1 LED NIC2 LED OH/Fan Fail LED Vcc/Blue UID LED Power Fail LED #3~4 Reset Button Ground Power Button Ground...

  • Page 41: Installing Memory

    Chapter 5: Advanced Motherboard Setup Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with slot DIMMA1.

  • Page 42: Memory Population Guidelines

    UPER ERVER 5017R-MF User's Manual Memory Population Guidelines DIMM slots should be populated in the following order: DIMMA1, DIMMB1, DIMMC1, DIMMD1 then DIMMA2, DIMMB2, DIMMC2, DIMMD2. • Always use DDR3 DIMM modules of the same size, type and speed. •...
  • Page 43 Chapter 5: Advanced Motherboard Setup Recommended Population (Balanced) DIMMA1 DIMMA2 DIMMB1 DIMMB2 DIMMC1 DIMMC2 DIMMD1 DIMMD2 Total Memory 12GB 16GB 16GB 24GB 32GB 16GB 32GB 64GB 128GB 16GB 16GB 32GB 16GB 16GB 16GB 16GB 64GB 16GB 16GB 16GB 16GB 16GB 16GB 96GB 16GB...

  • Page 44: Adding Pci Cards

    UPER ERVER 5017R-MF User's Manual Adding PCI Cards PCI Expansion Slots One riser card is used to support a PCI expansion (add-on) card in the system. The SC512F chassis can accommodate one standard size (full height full length) PCI expansion card. When viewed from the chassis front, the card installs to the left rear of the system.

  • Page 45: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-4. SUPER X9SRi-F Layout JCOM1 JCOM1 JKBMS1 JKBMS1 JVGA JVGA JLAN1 JLAN1 UID LED UID LED JSTBY1 JSTBY1 JLAN_USB12 JLAN_USB12 JLAN2 JLAN2 UID_LED UID_SW JVGA JCOM1 FAN4 COM1 JPG1 JPG1 FAN4 FAN4 FAN4 JPL1/2: LAN 1-2 Enable...
  • Page 46 UPER ERVER 5017R-MF User's Manual Connector Description JCOM1, JCOM2 COM1 Port, COM2 Header JIPMB1 System Management Bus Header (for IPMI) JTPM1 Trusted Platform Module (TPM) Header JUSB 4/5, 6/7, 8/9 Front Accessible USB Headers JOH1 Overheat LED/Fan Fail 3-SGPIO1 Serial General Purpose I/O Headers...

  • Page 47: Connector Defi Nitions

    Chapter 5: Advanced Motherboard Setup Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions (JPW1) Pin# Defi nition Pin # Defi nition Power Connectors +3.3V +3.3V The 24 - pin main power connector -12V +3.3V (JPW1) is used to provide power to the motherboard.
  • Page 48 UPER ERVER 5017R-MF User's Manual NIC1/NIC2 (LAN1/LAN2) The NIC (Network Interface Controller) LED connection for LAN port 1 is located LAN1/LAN2 LED on pins 11 and 12 of JF1, and the LED Pin Defi nitions (JF1) connection for LAN Port 2 is on Pins 9 Pin# Defi...
  • Page 49 Chapter 5: Advanced Motherboard Setup Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily Power Button Pin Defi nitions (JF1) contacting both pins will power on/off the Pin# Defi nition system. This button can also be confi g- ured to function as a suspend button (see Signal BIOS Setup).
  • Page 50 UPER ERVER 5017R-MF User's Manual Fan Headers The X9SRi-F has fi ve fan headers (Fan1 ~ Fan4 and FanA). These are all 4-pin fan headers, however pins 1-3 are backward Fan Header compatible with traditional 3-pin fans. Pin Defi nitions...
  • Page 51 Chapter 5: Advanced Motherboard Setup Trusted Platform Module Header Trusted Platform Module Header Pin Defi nitions This header is used to connect a Trusted Pin # Defi nition Pin # Defi nition Platform Module (TPM), available sepa- LCLK rately from a third-party vendor. A TPM is LFRAME No Pin a security device that allows encryption...
  • Page 52 UPER ERVER 5017R-MF User's Manual T-SGPIO 1/2 & 3-SGPIO 1/2 Headers Serial_Link-SGPIO Pin Defi nitions Two T-SGPIO (Serial-Link General Pur- Pin# Defi nition Defi nition pose Input/Output) headers are located next to the I-SATA ports on the mother- Ground DATA Out board.
  • Page 53 Chapter 5: Advanced Motherboard Setup Overheat LED Pin Defi nitions Overheat/Fan Fail LED (JOH1 Pin# Defi nition P3V3 The JOH1 header is used to connect an OH Active LED to provide warnings of chassis over- heat. This LED will also blink to indicate OH/Fan Fail LED Pin Defi...

  • Page 54: Jumper Settings

    UPER ERVER 5017R-MF User's Manual Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector between optional settings. Jumpers cre- Pins ate shorts between two pins to change the function of the connector. Pin 1 is Jumper identifi...
  • Page 55 Chapter 5: Advanced Motherboard Setup PCI Slot SMB Enable PCI Slot SMB Enable/Disable Jumper Settings Use Jumpers JI C1/JI C2 to enable PCI-E Setting Defi nition SMB (System Management Bus) support Closed Enabled to improve system management for the Open (Default) Disabled PCI-E slots.

  • Page 56: 5-10 Onboard Indicators

    UPER ERVER 5017R-MF User's Manual 5-10 Onboard Indicators LAN1/LAN2 LEDs LAN LED The Ethernet ports (located beside the Connection Speed Indication VGA port) have two LEDs. On each Giga- LED State Defi nition bit LAN port, one LED indicates activity...

  • Page 57: 5-11 Sata Drive Connections

    Chapter 5: Advanced Motherboard Setup 5-11 SATA Drive Connections SATA Port Pin Defi nitions Pin # Defi nition SATA Ports Ground Ten Serial ATA (SATA) ports (I-SATA 0~5 ans S-SATA 1~4) are included on the motherboard. See the table on the Ground right for pin defi...

  • Page 58: 5-12 Installing Drivers

    5-12 Installing Drivers After all the hardware and operating system have been installed, you need to install certain drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your motherboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear.

  • Page 59: Superdoctor Iii

    Chapter 5: Advanced Motherboard Setup SuperDoctor III ® The SuperDoctor III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 60 UPER ERVER 5017R-MF User's Manual Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User's Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend using SuperDoctor II. 5-28...

  • Page 61: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC512F-350B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 62: Control Panel

    UPER ERVER 5017R-MF User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure the person handling it is static protected. Figure 6-1. Chassis Views DVD-ROM Drive (Optional) Control Panel Power Supply...

  • Page 63: System Fans

    Chapter 6: Advanced Chassis Setup System Fans The 5017R-MF employs two sets of 4-cm counter-rotating fans to provide cooling. Each fan unit is made up of two fans joined back-to-back, which rotate in opposite directions. This counter-rotating action generates exceptional airfl ow and works to dampen vibration levels.

  • Page 64: Drive Bay Installation/Removal

    Note: The DVD drive is optional and does not come pre- installed in the system. Only a "slim" DVD-ROM will fi t in the 5017R-MF. Accessing the Inside of the System 1.

  • Page 65: Dvd-Rom Drive Installation

    The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The DVD-ROM must have a "slim" profi le to fi t into the 5017R-MF. If you cannot remove the top cover with the system remaining in the rack, follow the procedure below.
  • Page 66 UPER ERVER 5017R-MF User's Manual 3. Carefully lift the server out of the rack. 4. Open the cover by following the procedure described on page 6-4. 5. Remove the screws that secure the DVD-ROM drive to the chassis and then lift the drive out of the chassis.

  • Page 67: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The 5017R-MF has a single 350 watt power supply. This power supply has the capability of operating at a 100 or 240 input voltage. You must power down the system and then unplug the AC power cord to completely remove power from the system before removing the power supply.
  • Page 68 UPER ERVER 5017R-MF User's Manual 5. Reconnect the power cord, replace the chassis top cover and push the unit back into the rack. 6. Finish by turning on the power switch on the power supply, then depress the power button on the front of the system.

  • Page 69: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 70: How To Start The Setup Utility

    Warning! Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 71 <Tab> key or the arrow keys to move between fi elds. The date must be entered in Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.) Supermicro X9SRi/X9SRE Motherboard Series Version Build Date...

  • Page 72: Advanced Setup Confi Gurations

    UPER ERVER 5017R-MF User's Manual Advanced Setup Confi gurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items:  BOOT Feature Quiet Boot This option allows the bootup screen options to be modifi ed between POST mes- sages or the OEM logo.
  • Page 73 Chapter 7: BIOS 19 at boot and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 74 UPER ERVER 5017R-MF User's Manual Adjacent Cache Line Prefetch (Available when supported by the CPU) The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The CPU fetches both cache lines for 128 bytes as comprised if Enabled.
  • Page 75 Chapter 7: BIOS Power Technology This feature determines what power-saving scheme the motherboard uses. The options are Disabled, Energy Effi cient and Custom. If Custom is selected, the following options become available: EIST EIST (Enhanced Intel SpeedStep Technology) allows the system to automati- cally adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation.
  • Page 76 UPER ERVER 5017R-MF User's Manual DRAM RAPL - this feature enables DRAM Running Average Power Limit. The options are Disabled, Mode 0, and Mode 1.  Chipset Confi guration WARNING: Setting the wrong values in the following sections may cause the system to malfunction.
  • Page 77 Chapter 7: BIOS Link Speed This feature enables the user to select the target link speed for the port above. The options are GEN1, GEN2 and GEN3. IOU3 - PCIe Port This feature enables the user to select bifurcation mode for the selected root port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16.
  • Page 78 UPER ERVER 5017R-MF User's Manual Channel Interleaving This feature selects from the different channel memory interleaving meth- ods. The options are Auto, 1 Way, 2 Way, 3 Way and 4 Way. Rank Interleaving This feature selects from the different rank memory interleaving methods.
  • Page 79 Chapter 7: BIOS  South Bridge Confi guration This item displays the current South Bridge Revision. SLP_S4 Assertion Stretch Enable This feature enables or disables Assertion Stretch. The options are Enabled, and Disabled. Assertion Width This feature selects the Assertion Width. The options are 1-2 Seconds, 2-3 Seconds, 3-4 Seconds and 4-5 Seconds.
  • Page 80 UPER ERVER 5017R-MF User's Manual IDE Mode The following items are displayed when IDE Mode is selected: Serial-ATA Controller 0~1 This feature is used to activate/deactivate the SATA controller, and sets the compatibility mode. The options are Enhanced and Compatible. The default of Serial-ATA Controller 1 is Enhanced.
  • Page 81 Chapter 7: BIOS Hot Plug Set this item to Enabled to enable hot-plugging. The options are Enabled and Disabled.  PCIe/PCI/PnP Confi guration This feature allows the user to set the PCI/PnP confi gurations for the following items: PCI ROM Priority In case of multiple Option ROMs (Legacy and EFI-compatible), this feature specifi...
  • Page 82 UPER ERVER 5017R-MF User's Manual  Super IO Device Confi guration Serial Port 1 / Serial Port 2 Select Enabled to enable the onboard serial port. The options are Enabled and Disabled. Serial Port1 Settings/ Serial Port2 Settings This option specifi es the base I/O port address and the Interrupt Request address of Serial Port 1 and Serial Port 2.
  • Page 83 Chapter 7: BIOS  Remote Access Confi guration COM1/COM2/SOL Console Redirection Use this feature to enable console redirection for COM0 and COM1 ports. The op- tions are Enabled and Disabled. The default for all ports are Disabled.  Console Redirection Settings Confi...
  • Page 84 UPER ERVER 5017R-MF User's Manual  Hardware Health Confi guration Fan Speed Control Mode This feature allows the user to decide how the system controls the speeds of the onboard fans. The CPU temperature and the fan speed are correlative. When the CPU on-die temperature increases, the fan speed will also increase for effective system cooling.
  • Page 85 Chapter 7: BIOS High – The processor is running hot. This is a ‘caution’ level since the CPU’s ‘Temperature Tolerance’ has been reached (or has been exceeded) and may activate an overheat alarm: The information provided above is for your reference only. For more information on thermal management, please refer to Intel’s Web site at www.Intel.com.

  • Page 86: Network Stack

    UPER ERVER 5017R-MF User's Manual  Network Stack Use this feature to enable or disable the network stach (PXE and UEFI). The op- tions are Disabled and Enabled.  ME Subsystem Use this feature to disable or enable the ME (Management Engine) Subsystem.

  • Page 87: Event Logs

    Chapter 7: BIOS Event Logs Smbios Event Log Change this item to enable or disable all features of the Smbios Event Logging during boot. The options are Enabled and Disabled. Runtime Error Logging Support Change this item to enable or disable runtime error logging. The options are En- abled and Disabled.

  • Page 88: Ipmi

    UPER ERVER 5017R-MF User's Manual MECI The Multiple Event Count Increment (MECI) counter counts the number of oc- curences a duplicate event must happen before the MECI counter is incremented. This is a numeric value. METW The Multiple Event Time Window (METW) defi nes number of minutes must pass between duplicate log events before MECI is incremented.
  • Page 89 Chapter 7: BIOS  BMC Self Test Log This feature logs any BMC messages returned during a BMC self-test. It shows the total number of entries and will allow the viewing of each event by scrolling down. Erase Log - Select Yes, On every reset or No. When Log is Full - Select Clear Log or Do Not Log Anymore.

  • Page 90: Iscsi

    UPER ERVER 5017R-MF User's Manual Subnet Mask - Subnet masks tell the network which subnet this machine be- longs to. The value of each three-digit number separated by dots should not exceed 255. Station MAC Address - MAC addresses are 6 two-digit hexadecimal numbers (Base 16, 0 ~ 9, A, B, C, D, E, F) separated by dots (i.e., 00.30.48.D0.D4.60).

  • Page 91: Boot Settings

    Chapter 7: BIOS Boot Settings Use this feature to confi gure Boot Settings:  Boot Options Priority This feature allows the user to specify which devices are boot devices and the order of priority from which the systems boots from during startup. Boot Option #1, Boot option #2, Boot Option #3, etc The settings are Built-in EFI Shell, [any detected boot device] and Disabled.

  • Page 92: Security Settings

    UPER ERVER 5017R-MF User's Manual Security Settings • If the Administrator password is defi ned ONLY - this controls access to the BIOS setup ONLY. • If the User's password is defi ned ONLY - this password will need to be entered during each system startup or boot, and will also have Administrator rights in the setup.

  • Page 93: Exit Options

    Chapter 7: BIOS Exit Options Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave the BIOS Setup Utility and reboot the computer, so the new system con- fi...

  • Page 94: 7-10 Main Confi Guration Page

    UPER ERVER 5017R-MF User's Manual Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En-...
  • Page 95 Chapter 7: BIOS Link Speed This feature changes the link speed and duplex mode for the current port. The options are AutoNeg, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half and 100 Mbps Full. Wake On LAN This feature enables or disables the current port's Wake On LAN feature. When enabled, the system can be 'awaken' by sending a magic packet signal through the enabled LAN port.
  • Page 96 UPER ERVER 5017R-MF User's Manual Notes 7-28...

  • Page 97: Appendix A Post Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A POST Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 98 UPER ERVER 5017R-MF User's Manual Notes...

  • Page 99: Appendix B Uefi Bios Recovery Instructions

    Warning! Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 100 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" fi le in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB fl ash device and rename it to "Super ROM" for BIOS recovery use.
  • Page 101 Appendix B: UEFI BIOS Recovery Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Recovery Recovery WARNING! System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF!!! Once firmware update is completed press any key to reboot the system Flash update progress Select Screen Select Item...
  • Page 102 UPER ERVER 5017R-MF User's Manual 10. Press <Del> continuously to enter the BIOS Setup utility. 11. Press <F3> to load default settings. 12. After loading default settings, press <F4> to save the settings and exit the BIOS Setup utility.

  • Page 103: Appendix C System Specifi Cations

    Appendix C: System Specifi cations Appendix C System Specifi cations Processors ® ® Single Intel Xeon E5-2600/E5-1600 Series processor in LGA 2011 socket Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C600 BIOS 8 Mb SPI AMI®...
  • Page 104 UPER ERVER 5017R-MF User's Manual Weight Gross Weight: 18 lbs. (8.2 kg.) System Cooling Two 4-cm counter-rotating fans System Input Requirements AC Input Voltage: 100-240 VAC Rated Input Current: 6.3A (115V) to 3.24A (230V) Power Supply Rated Output Power: 350W (Model# PWS-351-1H) Rated Output Voltages: +3.3V (15A), +12...
  • Page 105 Appendix C: System Specifi cations Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
  • Page 106 UPER ERVER 5017R-MF User's Manual Notes...
