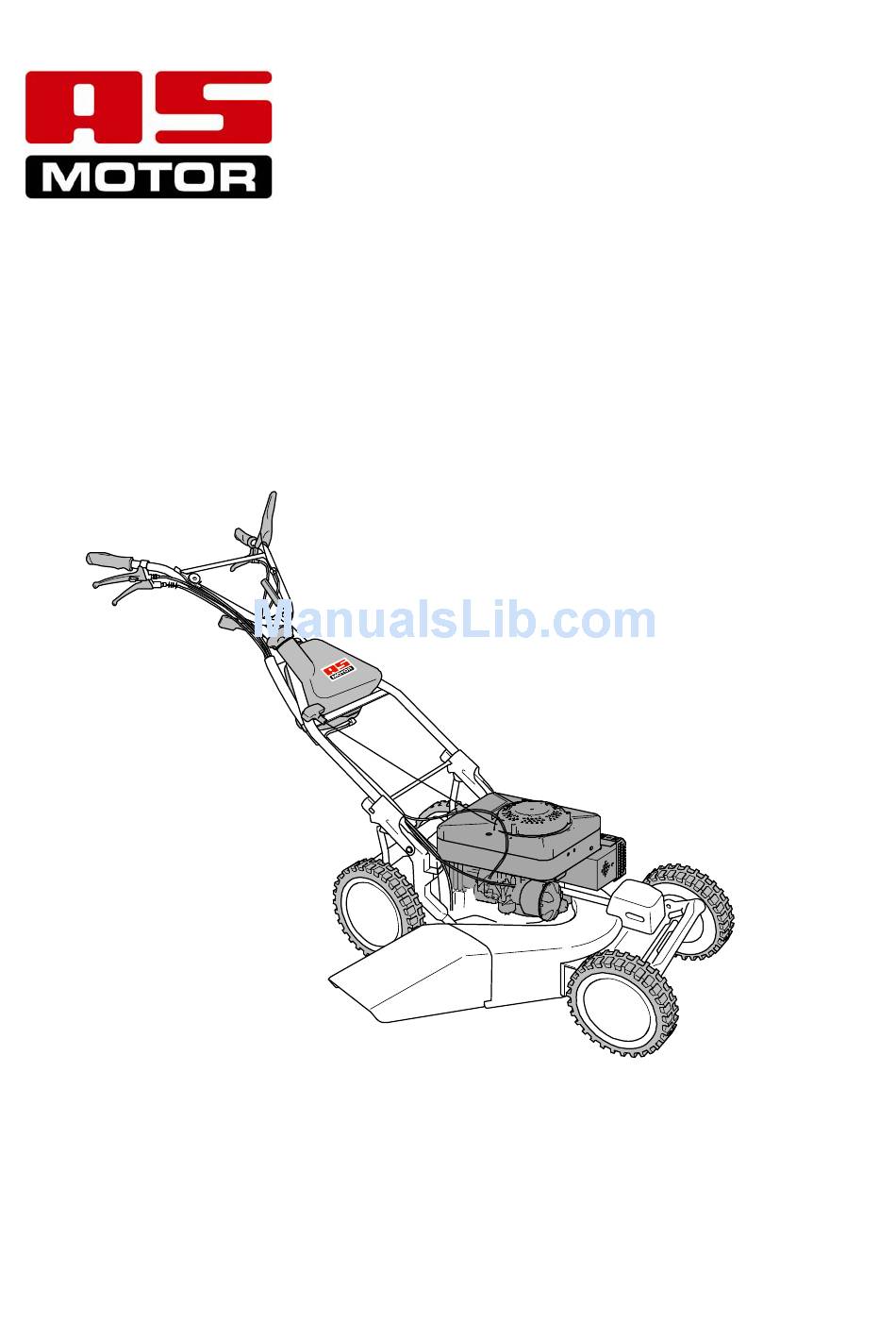

Operating Instructions

Four wheel driven mower
AS 53 B6 RB-Kat
From serial number:
Issued:
020910020001
24 February 2011,V7.0
EN-Translation of the Original Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 53 B6 RB-Kat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AS MOTOR AS 53 B6 RB-Kat

Summary of Contents for AS MOTOR AS 53 B6 RB-Kat

  • Page 1: Operating Instructions

    Operating Instructions Four wheel driven mower AS 53 B6 RB-Kat From serial number: 020910020001 Issued: 24 February 2011,V7.0 EN-Translation of the Original Operating Instructions...

  • Page 2: Preface

    Preface Intended use Please fill in all data referring to your device. The device is exclusively intended for When ordering spare parts, provide your mowing well maintained grassed lawn areas. dealer with the device and engine number. Only use attachments and cutting tools authorised by “AS-Motor Germany”.

  • Page 3: Table Of Contents

      Switching off and parking ......16 Contents   Maintenance and cleaning ....... 17   Preface ............2   Preparation ..........19   Cleaning the device ......... 19   Intended use ..........2   General inspection ........19   Explanation of the symbols......4  ...

  • Page 4: Explanation Of The Symbols

    Prior to any repair and Explanation of the symbols maintenance work, pull off the spark plug connector. Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Warning. Clean the ventilation grid! These symbols denote special The cooling air of the dangers.
  • Page 5 AS-MOTOR GERMANY GmbH & Co KG Ellwanger Stra ße 15 D-74424 Bühlertann Rasenm äher AS 53 B6 RB-Kat 4,4 kW (6,0 PS) / 2800 (1/min) 68 kg 2011 SNR: 020909090055 1003s...

  • Page 6: Safety Instructions

    Use gloves and avoid skin contact Safety instructions with the fuel. Get informed! Fuel up outdoors only when the engine is For your safety, read these operating cool and not running. Use a filler or funnel. instructions with care. Familiarize yourself Do not spill any fuel and do not let the fuel with the control elements and the proper use get into the canalisation or ground water.

  • Page 7: Check The Device Prior To Use

    Switch off the engine, wait until the blade Check the device prior to use comes to a standstill, and pull off the spark Prior to use, check by visual inspection blade, plug connector drive and fastening parts for proper condition ...

  • Page 8: When Work Is Completed

     Keep your hands and feet away from rotating Sure footing is essential for your safety, parts. Keep your distance to the discharge always wear skid proof safety shoes. area when you work with the device.  Be extremely careful when changing the direction.

  • Page 9: Use Caution During Maintenance And Repair

    liable for damages that were caused by our Use caution during maintenance devices if and repair  worn or damaged parts were not repaired Only carry out maintenance work as or replaced on time described in these operating instructions.  these damages were caused by improper Have an authorised service centre carry out all other work.

  • Page 10: Device Description

    Device description Impact protection Type plate Choke Rear cutting height adjustment Starter grip Tank filler spout Tank ventilation Handlebar with control elements Fuel valve Fixing of bar Spark plug connector Ventilation grid Silencer Air filter Front cutting height adjustment...

  • Page 11: Control Elements

    Blade/engine on (I): Press Control elements the lever towards the handlebar and continue to hold. Blade/engine off (0): Release the lever. Lever for lateral adjustment of handlebar (4) Release the eccentric tension lever. Throttle lever (1) Attention: Do not crush the Bowden With the accelerator lever, you change the cables when pivoting the handlebar.

  • Page 12: Assembly

    Reverse gear (7) Assembly To switch on the reverse gear, you must release the drive lever. Reverse speed is half Scope of delivery of the forward speed. The device is delivered in a carton. The scope of delivery includes: Reverse gear on: Press the lever towards the ...

  • Page 13: Inserting The Starter Rope

    Attention: Do not crush the Bowden Thread the impact protection ( 2 ) and cables ( 1 ) when fixing the handlebar. screw it down with 3 small washers and 3 nuts. Slacken the hexagon nut ( 2 ) at the eccentric lever ( 3 ) and remove the eccentric nut and the washer ( 4 ).

  • Page 14: Prior To Starting

    For mowing, always turn the accelerator lever Notice: You can find on the market ready to full throttle to achieve the best mowing mixed two stroke fuels. Based on our performance. experience, the ready mixed fuels “STIHL Motomix 1:50” and “ASPEN 2-stroke” can be used.

  • Page 15: Starting

    Starting the device 1. Place the device onto a flat surface, not in high grass. 2. Open the fuel valve and the tank ventilation. 3. Plug on the spark plug connector. 4. Only for cold start: Close the choke at the carburetor (turn anti-clockwise).

  • Page 16: Driving In Reverse

    3. Hold back the handlebar and the inner Adjusting speed: wheel. The driving speed can be continuously adjusted with the vario lever. The drive prevents sliding and supports the Adjust the driving speed only when the turn manoeuvre. engine is running. The front axle is equipped with a permanent Switching off and parking differential lock.

  • Page 17: Maintenance And Cleaning

    by the warranty. Operational safety is Maintenance and cleaning endangered as well. Regular maintenance keeps your device Contact your authorised service centre for ready for use. checkup if you detect problems during maintenance. If you do not observe the maintenance notices, faults may occur that are not covered Component Action...
  • Page 18 Component Action Maintenance interval Before Annually and after or every each use 50 h Acceleration lever Check for proper function. □ ▲ Chassis and Check for rust and fissures and check the welding ■ ▲ impact protection seams. Are all protective device fastened correctly and ■...

  • Page 19: Preparation

    General inspection Preparation To ensure a safe working condition of the Prior to all maintenance and cleaning device, check all nuts, bolts, screws, work: connections of fuel lines, air filters, etc. 1. Let the device cool down for at least regularly for firm seating.

  • Page 20: Cleaning The Air Filter

    2. Switch off the drive. Cleaning the air filter 3. Actuate the rear brake. Danger! Cleaning agents pose a fire and 4. Try to move the device. explosion hazard. If the rear wheels lock, the rear brake is Never clean the air filter with correctly adjusted.

  • Page 21: Checking The Reverse Gear

    If the adjustment does not show any Work on the blade requires special improvement, have an authorised dealership qualifications because an unbalance test is check the device. required and the torques must be observed. Check the blade and slip clutch regularly Checking the reverse gear before and after each mowing and when there are significant changes.

  • Page 22: Storage

    - Pull the starter rope slowly until you XXXX corresponds to the get resistance (oil distribution in the spare part number. cylinder). - Re-insert the spark plug and screw in Checking the engine brake fully. Check the function of the engine brake by switching off the engine.

  • Page 23: Accessories

    Accessories Spray paint 400 ml, colour orange E04606 Grass collection bag E09153 Mulching accessories E09157 Operating hours counter E10740 Disposal Grass clippings must not be thrown into the waste but should be composted. Shredded plant material decomposes quickly, can be utilized as fertilizer, and, therefore, be left on the ground.

  • Page 24: Troubleshooting

    You can find an authorised service centre on Troubleshooting our home page www.as-motor.de. The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. Problem Possible cause Remedy Engine brake lever is not Press engine brake lever towards the Engine does not pressed.
  • Page 25 Problem Possible cause Remedy Poor quality, dirty, or old fuel. Always use fresh fuel. Spark plug is sooted, damaged, Clean spark plug and check or incorrect electrode gap. electrode gap (see also Maintenance and cleaning). If necessary, replace spark plug. Housing of mower is jammed.
  • Page 26 Problem Possible cause Remedy Engine speed too low despite Authorised service centre. full power. Brake is adjusted incorrectly, Authorised service centre. The device does not worn, or defective. stop when brake is actuated Switching off system is Close the fuel valve. The engine does not defective.

  • Page 27: Mixing Ratios Fuel

    Mixing ratios fuel Fuel Two-stroke oil Only with Titan 2T 100S (Octane rating ROZ 91 min.) 1:50 1:100 Litre(s) Litre(s) (=ml/cm Litre(s) (=ml/cm 0.02 (20) 0.01 (10) 0.04 (40) 0.02 (20) 0.06 (60) 0.03 (30) 0.08 (80) 0.04 (40) 0.1 (100) 0.05 (50) 0.2 (200) 0.1 (100)

  • Page 28: Technical Data

    Technical data AS 53 B6 RB-Kat Type 5 – 30 °C Range of application (temperature) Engine , type One cylinder two stroke engine with catalyser Manufacturer AS-MOTOR GERMANY Type AS 165 Kat Cylinder capacity 165 cm Performance 3.4 kW (4.6 PS)

  • Page 29: Declaration Of Conformity

    Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmower type AS 53 B6 RB-Kat and with serial number starting from 020910020001 in the version we introduced to the market complies - 2006/42/EC, L76, 16 March, 2007...
  • Page 32 AS-MOTOR GERMANY GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds high grass, scrub, and weeds also on steep slopes and in difficult terrain. The grass cuttings are left to fertilise the ground so there is no more raking grass.
