Page 1: Operating Instructions

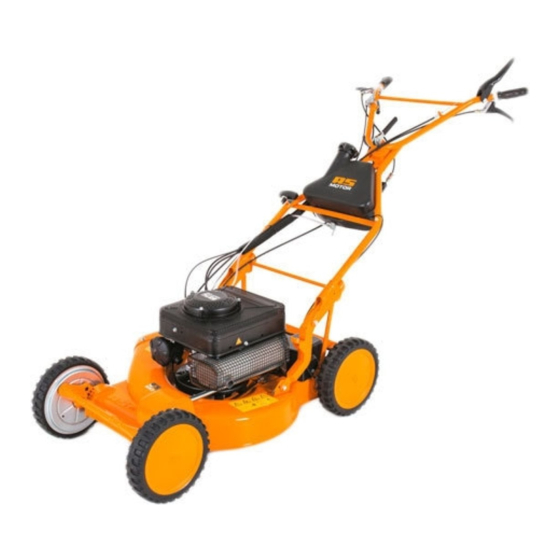

Operating Instructions Four wheel driven mower AS 53 2T 4WD RB + AS 53 2T 4WD From serial number: 020910020001+020808020001 Issued: 11 February 2015, V11.0 EN-Translation of the Original Operating Instructions... -
Page 2: Preface
dummy Preface Intended use The device is exclusively intended for mowing Please fill in all data referring to your device. When ordering spare parts, provide your deal- well maintained grassed lawn areas. er with the device and engine number. Only use attachments and cutting tools author- ised by “AS-Motor Germany”. -
Page 3: Table Of Contents
Contents Preparations .......... 20 Preface ............. dummy Cleaning the device ....... 20 General inspection ......... 20 Intended use ..........Maintaining the engine ......20 Checking the spark plugs ....... 20 Explanation of the symbols ....dummy Inhalts verz eichnis Maintaining the air filter ......21 Symbols in the instructions .... -
Page 4: Explanation Of The Symbols
dummy Inhalts verz eichnis Explanation of the symbols Prior to any repair and mainte- nance work, pull off the spark plug connector. Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Warning. These symbols denote special Clean the ventilation grid! dangers. -
Page 5: Type Overview
Type plate The type plate on the device provides you with information on the device type and the technical data. Name and address of the manufac- turer Device designation Type designation Rated power output in kW / engine speed Weight Year of manufacture Serial number CE marking... -
Page 6: Safety Instructions
Safe handling of fuel Safety instructions Get informed! Danger! Fuel is toxic and highly inflamma- For your safety, read these operating instruc- ble. tions with care. Familiarize yourself with the Danger of fire and explosion! control elements and the proper use of the Keep the fuel away from ignition device. -
Page 7: Check The Device Prior To Use
– before you adjust the cutting height. In case of skin contact, immediately wash with water and soap. Change your soiled clothing – before you refuel. as soon as you can. Switch off the engine and wait until the blade Measures in case of a fire comes to a standstill, and pull off the spark In case of a fire, use foam, dry powder extin-... -
Page 8: When Work Is Completed
– When mowing steep slopes, meet the ap- The area in front of and to the right of the propriate safety measures, e.g. use step device is especially dangerous. irons. Keep your hands and feet away from the – Always mow in horizontal directions, never rotating parts. -
Page 9: Use Caution During Maintenance And Repair
Use caution during maintenance and repair Only carry out maintenance work as described in these operating instructions. Have an au- thorised service centre carry out all other work. Only use the knives and spare parts authorized by “AS-Motor Germany”. Unauthorized knives and spare parts can cause severe injuries. -
Page 10: Device Description
Device description Impact protection Choke Height adjustment rear Starter grip Tank filler spout Tank ventilation Handle bar with control elements Fuel valve Bar locking 10 Spark plug connector 11 Ventilation grid 12 Silencer 13 Air filter 14 Cutting height adjustment front 15 Type plate 16 Cover... -
Page 11: Control Elements
Drive lever (2 - AS 53 2T 4WD ) Control elements With the drive lever, you switch the drive on Handlebar AS 53 2T 4WD RB and off. Drive on (I): Press the lever towards the handlebar and contin- ue to hold. Drive off (0): Release the lever. -
Page 12: Assembly
Rear wheel brake lever (6) Fuel valve You need brakes when going downhill and 1: Open when you switch off the device. To brake you 2: Closed must release the drive lever. Brake on (I): Press the lever towards the handlebar and continue to hold. -
Page 13: Inserting The Starter Rope
Impact protection Attention: Do not crush the Bowden cables (1) when fixing the handlebar. 1. Slacken the hexagon nut (2) at the eccen- 1. Insert the attached 3 cup square bolts with tric lever (3) and remove the eccentric nut a big washer from the inside of the device and the washer (4). -
Page 14: Information On Mowing
To avoid blockage during the ejection of grass, we recommend, for flat terrain, to proceed according to the mowing patterns. Mulch is shredded into much smaller pieces when you mow the terrain once again in the opposite direction. If the grass is extremely high, mow twice at Use tension belts to secure the device. -
Page 15: Tanking Up
2. Open the canister carefully so that the Container ET no. existing overpressure is discharged slowly and no fuel spurts out. 1 litres E06830 3. Open the tank cap carefully so that the (resealable bottle) G00041042 existing overpressure is discharged slowly and no fuel spurts out. -
Page 16: Starting
Starting Driving Danger! Danger! During startup, there is a risk of Risk of injury due to tripping or injury caused by the rotating blade. slipping when driving in reverse, pulling backwards and turning. Make sure that no one is within the danger zone of the blade. -
Page 17: Driving In Reverse
3. Hold back the handlebar and the inner Driving in reverse wheel. During driving in reverse, only the two front The drive prevents sliding and supports the wheels are driven. The speed is half as fast as turn manoeuvre. when driving forward. Drive reverse on: leer er Abs atz Switching off and parking... -
Page 18: Maintenance And Cleaning
Maintenance and cleaning warranty. Operational safety is endangered as Regular maintenance keeps your device ready well. for use. Contact your authorised service centre for If you do not observe the maintenance notices, checkup if you detect problems during mainte- faults may occur that are not covered by the nance. - Page 19 ■ ▲ pact protection Are all protective devices and covers in place, fastened correctly and properly functioning? ■ ▲ Label Condition of the labels. ■ ▲ Rear wheel brake Check. ■ ▲ Parking brake Check. ■ ▲ Flammable materi- Remove easily flammable debris buildup from the engine and the device.
-
Page 20: Preparations
General inspection Preparations To ensure proper working order of the device, Prior to all maintenance and cleaning work: regularly check all nuts, bolts, screws, fuel line 1. Let the device cool down for at least connections, air filters, etc. for firm seating. 20 minutes. -
Page 21: Maintaining The Air Filter
ter element if the dirt is extensive or caked insulator around the electrode is not damaged. Never use a damaged spark plug. 6. Remove the cloth from the carburetor. Tighten the spark plug with the torque indicat- ed in the technical data. 7. -
Page 22: Checking The Reverse Gear
1. Put the device on a non-slip surface (e.g. If the rear wheels block, the drive is set cor- concrete or asphalt). rectly. If you can pull the device, the drive must be readjusted. 2. Switch off the engine. 3. Actuate the reverse gear. 4. -
Page 23: Storage
not. Material wears out, gets cracks which Storage can endanger persons or property. Vibrations indicate that Storing the device – the blade is worn excessively on one side or Keep the device in a closed, dry, and well – damage of motor or cutting unit mount (e.g. ventilated room and out of reach of children. -
Page 24: Spare Parts
Spare parts Warranty The reliable and safe operation of the device The conditions of the warranty can be found on also depends on the quality of the spare parts the reverse side of your warranty card. Send used. Only use original spare parts and acces- the filled-out warranty card immediately after sories that were approved by the purchase of your device to... -
Page 25: Troubleshooting
Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.de. Problem Possible cause Remedy Engine does not Engine brake lever is not Press the engine brake lever towards start... - Page 26 Spark plug is sooted, dam- Clean spark plug and check electrode aged, or incorrect electrode gap (see also Maintenance and clean- gap. ing). Replace spark plug if necessary. Housing of the mower is See also Maintenance and cleaning. jammed. No drive when drive Drive belt is insufficiently Authorised service centre lever is actuated...
-
Page 27: Accessories
The engine does not Switching off system is defec- Close the fuel valve. switch off tive. Authorised service centre. leer er Abs atz Accessories Spray paint 400 ml, colour orange: G00011050 E04606 Operating hours counter: G06927008 E10740 Clinometer: G06950027 E11835 Mulching accessories: G04323005 E09157... -
Page 28: Technical Data
Technical data Type AS 53 2T 4WD RB AS 53 2T 4WD Range of application (temperature) 0 - 30 °C Engine, type One cylinder two stroke engine Manufacturer AS-Motor Germany Type AS 165 Cylinder capacity 165 cm Performance 3.4 kW (4.6 PS) Engine speed 2800 min Spark plug... -
Page 29: Declaration Of Conformity
Declar ati on of c onfor mity AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmowers Type AS 53 2T 4WD RB AS 53 2T 4WD Cutting width 53 cm 53 cm starting from serial no. - Page 30 Umbruc h...
- Page 31 Umbruc h...
- Page 32 Mar keti ng AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds metre-high grass, undergrowth, and weeds. Ride-on Allmäher® Ease of use and high area coverage all combined in a compact ride-on mower.
