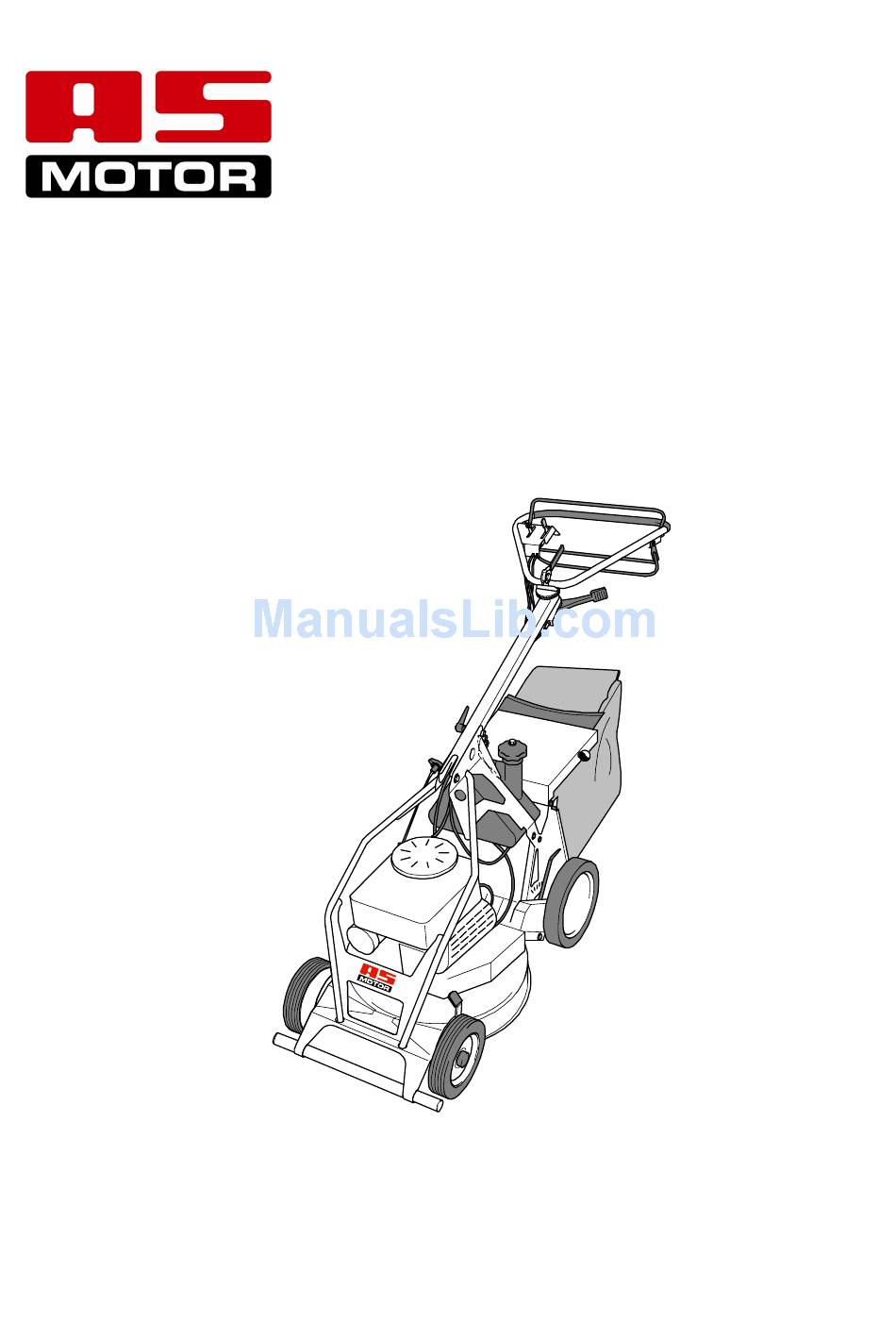

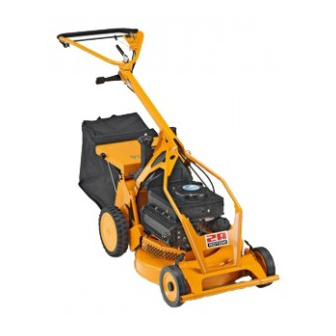

Operating Instructions

Lawnmower
AS 530/2T MK-Kat
From serial number:
Issued:
020610020001
16 July 2010,V11.0
EN-Translation of the Original Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 530/2T MK-KAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AS MOTOR AS 530/2T MK-KAT

Summary of Contents for AS MOTOR AS 530/2T MK-KAT

  • Page 1: Operating Instructions

    Operating Instructions Lawnmower AS 530/2T MK-Kat From serial number: 020610020001 Issued: 16 July 2010,V11.0 EN-Translation of the Original Operating Instructions...

  • Page 2: Preface

    Preface Intended use Please fill in all data referring to your device. The device is exclusively intended for When ordering spare parts, provide your mowing well maintained grassed lawn areas. dealer with the device and engine number. Only use attachments and cutting tools authorised by “AS-Motor Germany”.

  • Page 3: Table Of Contents

      Emptying the grass collection bag ..17 Contents   Switching off and parking ......17   Preface ............2   Maintenance and cleaning ....... 18   Intended use ..........2   Preparations ..........20   Cleaning the device ......... 20  ...

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Prior to any repair and maintenance work, pull off the spark plug connector. Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Warning. Clean the ventilation grid! These symbols denote special The cooling air of the dangers.
  • Page 5 Type plate The type plate on the device provides you with information on the device type and the technical data. AS-MOTOR GERMANY GmbH & Co KG Ellwanger Stra ße 15 D-74424 B ühlertann Rasenm äher AS 570 SM 7,5 kW (5,6 PS) / 3600 (1/min) 170 kg 2009 SNR: 022109070003...

  • Page 6: Safety Instructions

    Safety instructions Use gloves and avoid skin contact with the fuel. Get informed! Fuel up outdoors only when the engine is For your safety, read these operating cool and not running. Use a filler or funnel. instructions with care. Familiarize yourself Do not spill any fuel and do not let the fuel with the control elements and the proper use get into the canalisation or ground water.

  • Page 7: Check The Device Prior To Use

    Check the device prior to use − if you step away from the device, even for just a short time. Prior to use, check by visual inspection blade, − before you adjust the cutting height. drive and fastening parts for proper condition −...

  • Page 8: When Work Is Completed

    − Only mow steep slopes when safe The danger zone extends operation assured. for at least 15 metres. − Do not mow excessively steep slopes. − When mowing steep slopes, meet the The area in front of and to the right of the appropriate safety measures, e.g.

  • Page 9: Use Caution During Maintenance And Repair

    Never store the device when there is fuel in We explicitly point out that, in accordance the tank inside a building where fuel vapours with the Product Liability Act, we are not might come into contact with open fire or liable for damages that were caused by our sparks.

  • Page 10: Device Description

    Device description Cutting height adjustment Air filter Silencer Bumper Grass collection bag Spark plug connector Impact protection flap Vario Bowden cable Tank filler spout Ventilation grid Tank ventilation Type plate Handlebar with control elements Lever for lateral adjustment of handlebar Clamping lever for height adjustment of guide bar Starter grip...

  • Page 11: Control Elements

    Drive off: Control elements Release the bar. Vario lever (3) With the vario lever, you can continuously adjust the speed of the device while the engine is running. MIN: = slow MAX: = fast Accelerator lever(4) Blade clutch bar (1) MAX: Full throttle The blade clutch bar is a protective device.

  • Page 12: Assembly

    Mounting guide bar and Carburetor with choke and tickler handlebar The choke ( 1 ) and the tickler ( 2 ) are required for the cold engine start. Opening the choke: Turn clockwise to the stop. Closing the choke: Turn anti-clockwise to the stop.

  • Page 13: Inserting The Starter Rope

    Attention: During the first assembly, remove the factory installed cable ties ( 6 ) at the handlebar so that the control elements can be actuated. Insert the drive cable ( 7 ) into the drive bar ( 8 ). Inserting the starter rope Pull the grass collection bag ( 1 ) over the frame ( 2 ).

  • Page 14: Transport

    conditions because the lawn is susceptible to Transport sun and heat damage and will look unsightly! Switch off the engine and wait until the blade Only mow with a sharp and undamaged comes to a stop before you lift the device. It blade so that the blades of grass do not fray.

  • Page 15: Tanking Up

    Adjusting cutting height You can buy Fuchs “TITAN 2T 100S” from your AS-dealer: Adjust the cutting height setting only when the engine is switched off. Spare part Container Set the cutting height so that the blade does not touch the ground even in case of terrain 1 litre E06830 unevenness.

  • Page 16: Starting The Device

    Starting the device Driving 1. Place the device onto a flat surface, not Danger! in high grass. Risk of injury caused by tripping or 2. Open the fuel valve and the tank sliding while moving the mower ventilation. backwards and turning it round. Before moving in reverse, always 3.

  • Page 17: Emptying The Grass Collection Bag

    2. Turn the device upslope. Switching off and parking 3. Hold back the handlebar and the inner Caution! wheel. On a slope, the device can roll The drive prevents sliding and supports the away. turn manoeuvre. Put the device on even ground only or secure it against rolling away.

  • Page 18: Maintenance And Cleaning

    by the warranty. Operational safety is Maintenance and cleaning endangered as well. Regular maintenance keeps your device Contact your authorised service centre for ready for use. checkup if you detect problems during maintenance. If you do not observe the maintenance notices, faults may occur that are not covered Component Action...
  • Page 19 Component Action Maintenance interval Before Annually and after or every each use 50 h Bowden cables Check for proper function and ease of movement. ■ ▲ Acceleration lever Check for proper function. □ ▲ Chassis and Check for rust and fissures and check the welding ■...

  • Page 20: Preparations

    Cleaning the device Preparations After each use, you should clean the device thoroughly, especially the bottom side and the blade. Stuck grass or dirt affect the grass discharge and the cutting quality. For a sufficient engine Caution! Risk of injury. Guide cooling, keep the engine cover, ventilation bar can snap back.

  • Page 21: General Inspection

    General inspection Cleaning the air filter To ensure a safe working condition of the Danger! device, check all nuts, bolts, screws, Cleaning agents pose a fire and connections of fuel lines, air filters, etc. explosion hazard. regularly for firm seating. Check the ignition Never clean the air filter with wire and the spark plug connector for flammable solvents.

  • Page 22: Checking The Blade

    1. While the engine is running, move the Blade change vario lever to position "MIN". 2. Switch off the engine. 3. Move the vario lever to position "MAX" (vario cable ( 1 ) loosens). 4. Remove the cable ( 1 ) and insert it into the next eyelet in the direction of the spring.

  • Page 23: Storage

    Storage Spare parts Storing the device The reliable and safe operation of the device also depends on the quality of the spare parts Keep the device in a closed, dry, and well used. Only use original spare parts and ventilated room and out of reach of children. accessories that were approved by Always eliminate all problems of the device “AS-Motor Germany”.

  • Page 24: Disposal

    Disposal Grass clippings must not be thrown into the waste but should be composted. Dispose of waste oil and fuel in accordance with the local regulations or return it to an oil shop. Packaging, device, and accessories are made of recyclable materials and must be disposed off accordingly.

  • Page 25: Troubleshooting

    You can find an authorised service centre on Troubleshooting our home page www.as-motor.de. The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. Problem Possible cause Remedy Engine does not Engine stop switch is set to Set engine stop switch to ON.
  • Page 26 Problem Possible cause Remedy Spark plug is sooted, damaged, Clean spark plug and check or incorrect electrode gap. electrode gap (see also Maintenance and cleaning). If necessary, replace spark plug. Housing of mower is jammed. See also Maintenance and cleaning. No drive when drive Vario cable is insufficiently Re-tension (see chapter...
  • Page 27 Problem Possible cause Remedy Discharge channel Mowed grass was too long or Adjust cutting height and mowing is jammed too damp. speed to the mowing conditions. Blade is worn. Authorised service centre. Engine speed too low despite Authorised service centre. full power.

  • Page 28: Mixing Ratios Fuel

    Mixing ratios fuel Fuel Two-stroke oil Only with Titan 2T 100S (Octane rating ROZ 91 min.) 1:50 1:100 Litre(s) Litre(s) (=ml/cm Litre(s) (=ml/cm 0.02 (20) 0.01 (10) 0.04 (40) 0.02 (20) 0.06 (60) 0.03 (30) 0.08 (80) 0.04 (40) 0.1 (100) 0.05 (50) 0.2 (200) 0.1 (100)

  • Page 29: Technical Data

    Technical data AS530/2T MK-Kat Type Range of application (temperature) 5 – 30 °C Engine , type One cylinder two stroke engine with catalyser Manufacturer AS-MOTOR GERMANY Type AS 165 Cylinder capacity 165 cm Performance 3.4 kW (4.6 PS) Engine speed 2600 min Spark plug Bosch W7RAC / Beru 14/7AU / Champion L86...

  • Page 30: Declaration Of Conformity

    Dec lar ation of c onfor mi t y AS-MOTOR GERMANY GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmower type AS 530/2T MK-Kat with serial number starting from 020610020001 corresponds to the following guidelines: - 2006/42/EC - 2000/14/EC...
  • Page 32 AS-MOTOR GERMANY GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds high grass, scrub, and weeds also on steep slopes and in difficult terrain. The grass cuttings are left to fertilise the ground so there is no more raking grass.
