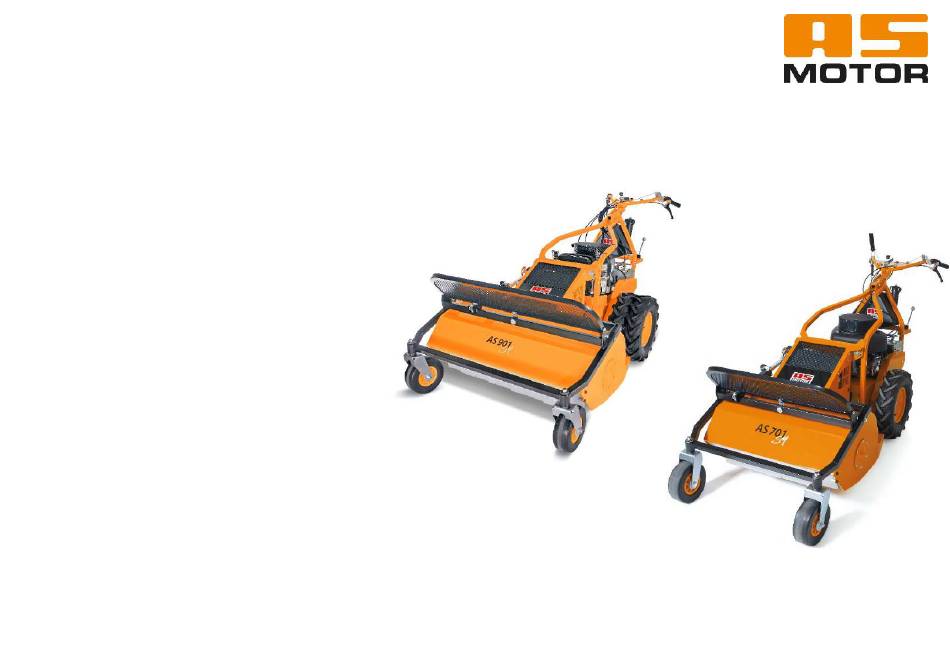

WORKSHOP MANUAL
03/2022 EN
AS-MOTOR Flail Mowers
AS 901 SM from 03/2015
AS 701 SM from 03/2015
Service Information
Adjustment, maintenance and repair instructions
www.as-motor.de
