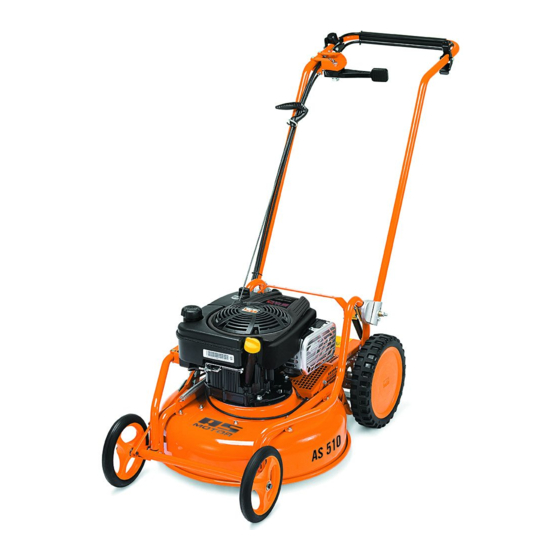

Operating Instructions

Mulching Mower
AS 510 ProClip
From serial number:
Issued:
022811030001
10 October 2011, V5.0,
EN-Translation of the Original Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 510 ProClip and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AS MOTOR AS 510 ProClip

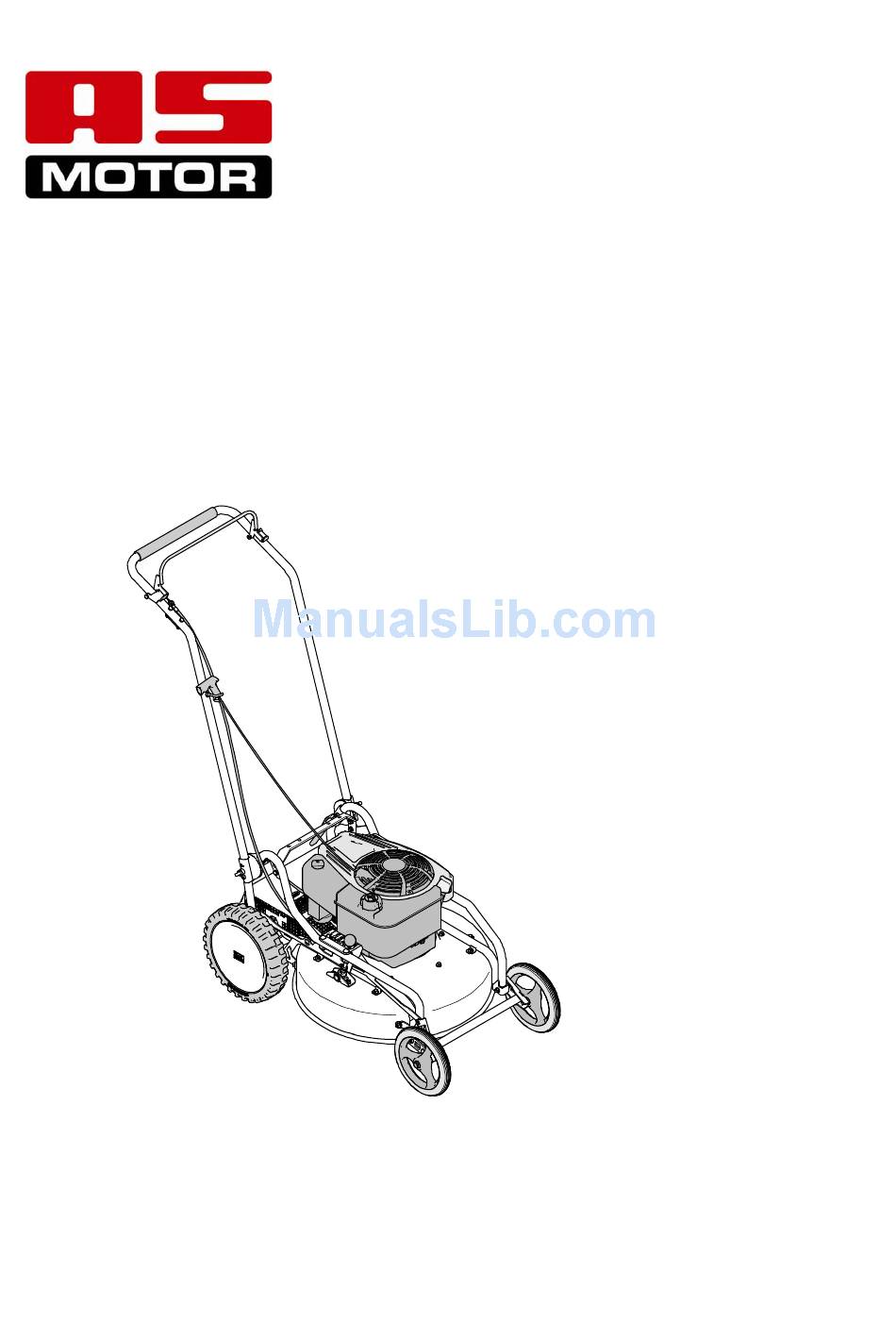

  • Page 1: Operating Instructions

    Operating Instructions Mulching Mower AS 510 ProClip From serial number: 022811030001 Issued: 10 October 2011, V5.0, EN-Translation of the Original Operating Instructions...
  • Page 2: Preface

    Preface Intended use Please fill in all data referring to your device. The device is exclusively intended for When ordering spare parts, provide your mowing well maintained grassed lawn areas. dealer with the device and engine number. Only use attachments and cutting tools authorised by “AS-Motor Germany”.
  • Page 3: Table Of Contents

      Maintenance and repair ......14 Contents   Preparations ..........15   Cleaning the device ......... 15   Preface ............2   General inspection ........16   Intended use ..........2   Maintaining the engine ......16   Checking the engine oil level ....16  ...
  • Page 4: Explanation Of The Symbols

    Prior to any repair and Explanation of the symbols maintenance work, pull off the spark plug connector. Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Warning. Clean the ventilation grid! These symbols denote special The cooling air of the dangers.
  • Page 5: Safety Instructions

    Use gloves and avoid skin contact Safety instructions with the fuel. Get informed! Fuel up outdoors only when the engine is For your safety, read these operating cool and not running. Use a filler or funnel. instructions with care. Familiarize yourself Do not spill any fuel and do not let the fuel with the control elements and the proper use get into the canalisation or ground water.
  • Page 6: Use Caution During Operation

    Never use the device if covers are defective. Prior to mowing Do not remove, change or override any Personal protective measures safety devices or control elements. While mowing, always wear sturdy footwear with good grip, long Observe the maintenance instructions and trousers, and gloves.
  • Page 7: When Work Is Completed

    Be extremely cautious when turning the Mowing surfaces with fire hazard device round or pulling it toward you and  Carry a sufficient amount of suitable when moving in reverse. extinguishing agent.  Always walk slowly! If side inclination is too great, fuel may leak from the carburetor or the tank.
  • Page 8  worn or damaged parts were not repaired or replaced on time  these damages were caused by improper repair.  when changing a part, our original parts or parts authorised by use were not used.  the repair work was not carried out by an authorised service station.
  • Page 9: Device Description

    Device description Oil filler opening Silencer Cutting height adjustment (40 mm, Spark plug connector 50 mm, 60 mm, 70 mm, 80 mm, 90 mm) Tank filler spout Ventilation grid Air filter Starter grip Handlebar with control elements Eccentric tension lever for fastening the Type plate Fuel valve...
  • Page 10: Control Elements

    Control elements Assembly Scope of delivery The device is delivered in a carton. The scope of delivery includes:  The device.  These operating instructions.  Tool bag with small items.  Warranty card.  Operating instructions of the engine manufacturer.
  • Page 11: Inserting Starter Rope

    Inserting starter rope Use tension belts to secure the device. Beware! To avoid damage to the device, Press and continue to hold the engine fasten the tension belts exclusively as shown brake bar. in the illustration. Slowly pull the starter rope at the starter grip (1) and insert it into the guide.
  • Page 12: Prior To Starting

    2. Open the canister carefully so that the existing overpressure is discharged slowly and no fuel spurts out. 3. Open the tank cap carefully so that the existing overpressure is discharged To evenly distribute grass remains and to slowly and no fuel spurts out. achieve an even cutting height, we 4.
  • Page 13: Starting

    4. Actuate and continue to hold the engine brake bar. 5. Pull the starter point slowly out until you feel resistance then pull out quickly – engine starts to run. 6. Let the starter rope retract slowly. Driving Danger! Risk of injury caused by tripping or sliding while pushing the mower, Switch off the engine and wait until the moving it backwards and turning it...
  • Page 14: Maintenance And Repair

    by the warranty. Operational safety is Maintenance and repair endangered as well. Regular maintenance keeps your device Contact your authorised service centre for ready for use. checkup if you detect problems during maintenance. If you do not observe the maintenance notices, faults may occur that are not covered Component Action...
  • Page 15: Preparations

    Component Action Maintenance interval Before Annually and after or every each use 50 h Label Condition of the labels. ■ ▲ Engine See operating instructions of the engine ■ ▲ manufacturer. Check oil level (see operating instructions of the ■ ▲...
  • Page 16: General Inspection

    cooling, keep the engine cover, ventilation Checking the engine oil level grid, and the engine clean. The oil level must remain between the two markings of the oil dipstick. Make sure that Fire hazard! Pay special attention so that the oil level is never below the bottom components at the silencer are clean.
  • Page 17: Checking The Blade

     At the least once per year or every Checking the blade 50 operating hours, whether there is wear Danger! or not. The material deteriorates, may Improperly mounted and show cracks and this can endanger maintained blades pose a severe persons and material goods.
  • Page 18: Restarting

    5. Touch up defects in painting (for spray Blades, cutting blades, cutter bars, blade paint, see Accessories). bolts, sliding plates, V-belt, chains, Bowden cables, starter ropes, pressure plates, air 6. Performing corrosion protection on the filters, spark plugs, disc springs, lock engine: washers, fuses, discs, thrust plates, pressure discs, protection skirts, impact protection,...
  • Page 19: Troubleshooting

    You can find an authorised service centre on Troubleshooting our home page www.as-motor.de. The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. Problem Possible cause Remedy Engine brake lever is not Press engine brake lever towards the Engine does not pressed.
  • Page 20 Problem Possible cause Remedy Poor quality, dirty, or old fuel. Always use fresh fuel. Spark plug is sooted, damaged, Clean spark plug and check or incorrect electrode gap. electrode gap (see also Maintenance and cleaning). If necessary, replace spark plug. Housing of mower is jammed.
  • Page 21 Problem Possible cause Remedy Mowed grass was too long or Adjust cutting height and mowing Housing is jammed too damp. speed to the mowing conditions. Blade is worn. Authorised service centre. Engine speed too low. Authorised service centre. Switching off system is Close the fuel valve.
  • Page 22: Technical Data

    Technical data AS 510 ProClip Type 5 – 30 °C Range of application (temperature) Engine, type Single cylinder four-stroke engine Manufacturer Briggs & Stratton Type 850 series Cylinder capacity 190 cm Performance 3.1 kW (4.3 PS) Engine speed 2800 min See also operating instructions of engine manufacturer.
  • Page 23: Declaration Of Conformity

    Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmower type AS 510 ProClip cutting width 51 cm and with the serial number starting from 022811030001 in the version we introduced to the market complies with all...
  • Page 24 AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds high grass, scrub, and weeds also on steep slopes and in difficult terrain. The grass cuttings are left to fertilise the ground so there is no more raking grass.
