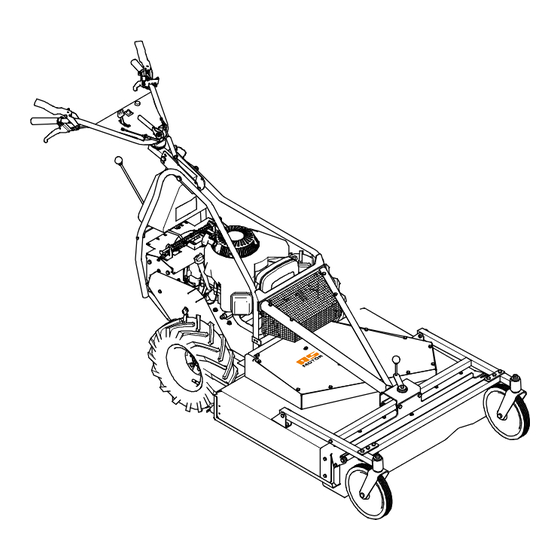

- Page 1 Operator's Manual Allmäher® AS 84 4T B&S From serial number: 026717110001 Issued: 16 November 2017, V3.0 en-Translation of the Original Operator's Manual...
-
Page 2: Notes On The Operating Manual
dummy Intended use Notes on the operating manual The device is intended only for cutting grass or similar vegetation in well-maintained grounds Dear customer, in agriculture, forestry and preservation of the countryside that are cut at least once a year. Congratulations on your purchase. -
Page 3: Table Of Contents
Contents Maintenance..........Notes on the operating manual..... Maintenance overview......18 Contact ............ Cleaning the device......... 20 Device data..........General inspection........20 Chain lubrication........20 Intended use..........Transmission........... 20 Explanation of the symbols....Maintaining the engine......20 Symbols in the instructions...... 4 Checking the engine oil level.... -
Page 4: Explanation Of The Symbols
dummy Inhaltsverzeichnis Prior to any repair and mainten- Explanation of the symbols ance work, pull off the spark plug connector. Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Warning. These symbols denote special Clean the ventilation grid! dangers. -
Page 5: Safety Instructions
Safe handling of fuel Safety instructions Fuel is toxic and highly flammable. There is a Get informed! burn and explosion hazard! Keep fuel away from ignition sources and do For your safety, read these operating instruc- not smoke during handling. tions carefully. -
Page 6: Check The Device Prior To Use
Danger area First aid When swallowing fuel or inhaling fuel vapours, do not force vomiting and immediately consult a doctor. In case of skin contact, immediately wash with water and soap. Change your soiled clothing as soon as you can. Measures in case of a fire In case of a fire, use foam, dry powder extin- guisher, or carbon dioxide (CO... -
Page 7: Use Caution During Operation
Use caution during operation Prior to mowing Danger of injury during motor start Personal protective measures Do not start the engine During mowing, always wear – if fuel was spilled. safety shoes with good grip and long trousers. Do not mow with –... -
Page 8: Caution When Mowing Slopes
To avoid risk of fire, keep the following com- ponents free of dirt, grass, hay, leaking oil, grease, etc.: – Engine Fig. 2: Avoid mowing damp grass, there is a sliding – Silencer (manifold, guard, clearances) risk! – Area around the fuel tank Be extremely cautious when turning the device Caution when mowing slopes round or pulling it toward you and when mov-... -
Page 9: When Work Is Completed
Use caution during maintenance If the device tilts or slips and repair – Never try to stop a tilting or sliding device. Severe injuries can result. Only carry out work as described in these op- – Remove leaking fluids (oil, fuel, battery acid) erating instructions. -
Page 10: Device Description
Device description 1 Steerable front wheel 2 Type plate 3 Air filter 4 Oil dipstick 5 Starter grip 6 Fuel valve 7 Height adjustment of handlebar 8 Switching lever 9 Handlebar console 10 Lever for lateral adjustment of handlebar 11 Tank ventilation 12 Tank filler spout 13 Ventilation grid 14 Spark plug connector (2 connectors) -
Page 11: Control Elements
Control elements Uncouple blade (0): Release the blade clutch lever and set the acceler- ator lever to MIN. Couple blade (I): Lift blade clutch lever, en- gage latch knob (H) and press the blade clutch lever towards the handlebar. H Lever for lateral adjustment of handlebar (D) 1. - Page 12 Steering brake lever (F) Choke (15) You control the driving direction of the device Close the choke during cold start of the en- with both steering brake levers. gine. Swivelling to the right: Opening choke: Press the right lever to- Push wire ring inwards.
-
Page 13: Information On Mowing
Information on mowing Prior to starting Prior to mowing, check your device for com- Fuel pleteness, proper functioning, and cleanliness. A dirty ventilation grid causes overheating of As fuel, use unleaded petrol (see operating in- the engine, this can damage the engine. A dirty structions of the engine manufacturer). -
Page 14: Adjusting Cutting Height
Adjusting cutting height Starting Adjust the cutting height setting only when the Danger! engine is switched off. During startup, there is a risk of in- Set the cutting height so that the blade does jury caused by the rotating blade. not touch the ground even in case of terrain Make sure that no one is within the unevenness. -
Page 15: Engaging The Blade
Engaging the blade Adjusting the driving speed: The driving speed depends on the quantity and 1. Lift the blade clutch lever. thickness of the growth. If the growth is espe- 2. Press the latch knob at the blade clutch cially high and thick, you can mow at low driv- lever. -
Page 16: Steering And Turning
Steering and turning Transport To control the direction of travel, a steering Warning! brake is installed at each rear wheel. The Risk of injury due to the heavy steering brake works also when moving in re- weight of the device. The device can verse. -
Page 17: Unloading The Device
Maintenance Warning! Risk of injury due to unexpected movement. When inspections are carried out, the device can move un- expectedly. Make sure that no persons or ob- jects are in the danger area of the blade. Fig. 6: Make sure that no further hazards result from an unexpected move- ment. -
Page 18: Maintenance Overview
Maintenance overview Component Action Maintenance interval Device Check for safe working condition (basic inspection). ■ ▲ Clean. ■ Customer service. ▲ Fuel Check fuel level. ■ Is the tank cap closed? ■ Tank, fuel valve, Check parts for leaks and check for good condition. ■... - Page 19 Check oil level (see operating instructions ■ ▲ of the engine manufacturer). Oil change. ▲ Parking brake Check. ■ ▲ Flammable material Remove easily flammable debris buildup from the engine ■ ▲ and the device. Tyres Check tyres and, if necessary, the tyre pressure. ■...
-
Page 20: Cleaning The Device
Cleaning the device Chain lubrication Depending on use, clean the device thor- oughly, especially the bottom and the blade. Grass cuttings and dirt that are stuck interfere with the grass ejection and impair the cutting quality. To sufficiently cool the engine, keep the engine cover, ventilation grid and engine clean. -
Page 21: Checking The Engine Oil Level
Maintaining the air filter Keep the - engine cover (ventilation grid), Danger! - silencer (protective grid) and - cooling fins of the engine Cleaning agents pose a fire and clean at all times. explosion hazard. Never clean the air filter with flam- Checking the engine oil level mable solvents. -
Page 22: Checking The Parking Brake
Checking the parking brake All shown blade parts and their fastening ele- ments must be changed Danger! – if damage or cracks are detected. If the parking brake is incorrectly ad- – at least once a year or every 50 operating justed, the device can roll away. -
Page 23: Checking The Blade Clutch
Checking the blade clutch Guide bar and handlebar Check the blade clutch for proper function by disengaging the blade. The blade must come from full speed to a standstill in less than 7 seconds. Contact an authorised service centre if this is not the case. Assembly Scope of delivery The device is shipped in a carton. -
Page 24: Storage
Storage Spare parts The reliable and safe operation of the device Storing the device also depends on the quality of the spare parts used. Only use original spare parts and ac- Keep the device in a closed, dry, and well vent- cessories that were approved by ilated room and out of reach of children. -
Page 25: Troubleshooting
Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.de. Problem Possible cause Remedy Engine does not Engine stop switch is set to Set engine stop switch to ON. - Page 26 Engine starts badly Choke is closed. Open the choke. or runs irregularly Air filter is dirty. Maintain air filter (see Maintenance). Poor quality, dirty, or old fuel. Always use fresh fuel. Spark plug is dirty, damaged, Clean spark plug and check electrode or incorrect electrode gap.
- Page 27 Mulching result with Speed is too high. Reduce speed. high plant material not satisfactory Mulching result with Plant material is ejected too Increase speed. low plant material quickly. not satisfactory Discharge channel is Mowed grass was too long or Adjust cutting height and mowing jammed too damp.
-
Page 28: Technical Data
Technical data Type AS 84 4T B&S Range of application (temperature) 0 - 30 °C For temperatures below 5 °C, observe the en- gine manufacturer’s information regarding the engine oil. Engine, type Two cylinder four stroke engine Manufacturer Briggs & Stratton Type 30 Vanguard, V-Twin Cylinder capacity... -
Page 29: Accessories
Accessories Spray paint 400 ml, colour orange: G00011050 Operating hours counter: G06927008 Clinometer: G06950027 Hand protection set: G06780309 Twin tires: G06521000... -
Page 30: Declaration Of Conformity
Declaration of conformity AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the grassland mower of type AS 84 4T B&S and the serial number starting from 026717110001 as brought into circulation by us conforms to all relevant 2006/42/EC safety and health requirements of the EC directives lis- 2014/30/EU... - Page 32 AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de THE HIGH GRASS MOWER AND 2 STROKE ENGINE MANUFACTURE AS-Motor is your premium manufacturer for lawn and high grass mowers as well as 2 stroke engines. We offer our customers professional technology for steep slopes, rough terrain, and lawn care.
