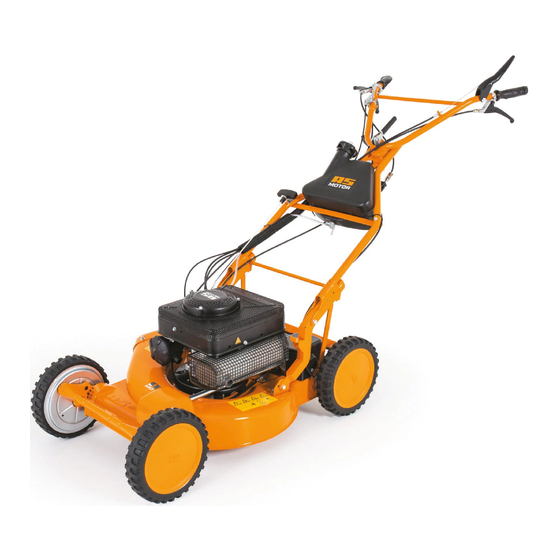

Operator's Manual
Four wheel driven mower
AS 53 2T ES 4WD RB, AS 53 2T ES 4WD
From serial number:
Issued:
en-Translation of the Original Operator's Manual
AS 53 2T ES 4WD RB: 033919010001,
AS 53 2T ES 4WD: 033819010001
17 January 2020, V14.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 53 2T ES 4WD and is the answer not in the manual?

Questions and answers

Summary of Contents for AS MOTOR AS 53 2T ES 4WD

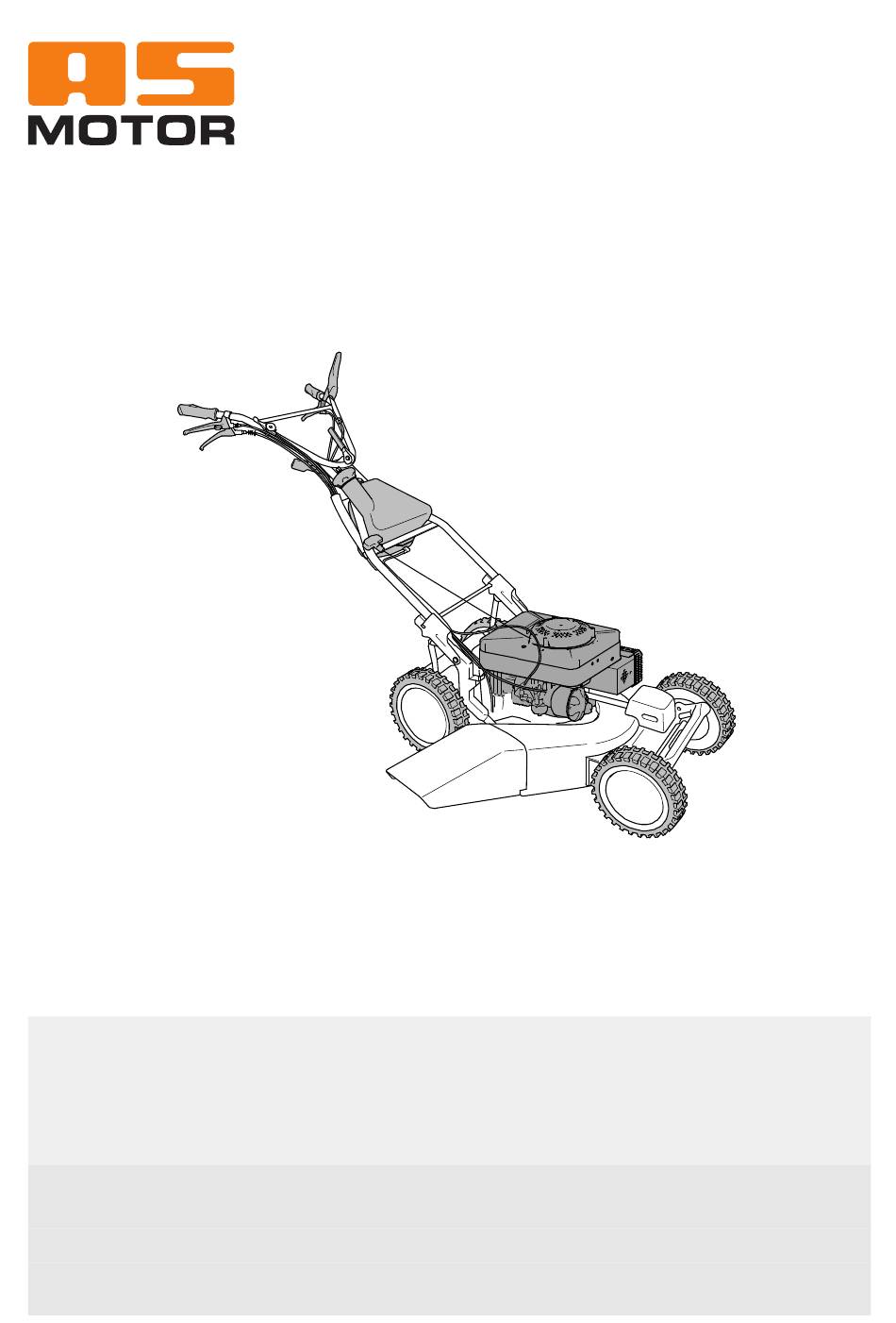

  • Page 1 Operator's Manual Four wheel driven mower AS 53 2T ES 4WD RB, AS 53 2T ES 4WD From serial number: AS 53 2T ES 4WD RB: 033919010001, AS 53 2T ES 4WD: 033819010001 Issued: 17 January 2020, V14.0 en-Translation of the Original Operator's Manual...
  • Page 2: Notes On The Operating Manual

    dummy Intended use Notes on the operating manual The device is exclusively intended for mowing well maintained grassed lawn areas. Dear customer, Any other use exceeding this purpose is inad- Congratulations on your purchase. You have missible. acquired a reliable quality product by Observe the instructions chapter for Mainten- ”AS-Motor Germany”.
  • Page 3: Table Of Contents

    Contents Maintenance..........Notes on the operating manual..... Maintenance overview......20 Contact ............ Cleaning the device......... 22 Device data..........General inspection........22 Maintaining the engine......22 Intended use..........Checking the spark plugs......22 Explanation of the symbols....Maintaining the air filter......23 Symbols in the instructions......
  • Page 4: Explanation Of The Symbols

    dummy Inhaltsverzeichnis Explanation of the symbols Warning Hazardous situation Symbols in the instructions Indicates a possibly hazardous situation In these operating instructions, the following with a medium level of risk that, if not symbols are used to denote special dangers. avoided, could result in minor or moderate injury.
  • Page 5: Type Overview

    Type plate Prior to any repair and mainten- ance work, pull off the spark The type plate on the device provides you plug connector. with information on the device type and the technical data. Clean the ventilation grid! The cooling air of the mo- tor is sucked in through the ventilation grid of the engine cover.
  • Page 6: Safety Instructions

    Safe handling of fuel Safety instructions Fuel is toxic and highly flammable. There is a Get informed! burn and explosion hazard! Keep fuel away from ignition sources and do For your safety, read these operating instruc- not smoke during handling. tions carefully.
  • Page 7: Check The Device Prior To Use

    First aid Danger area When swallowing fuel or inhaling fuel vapours, do not force vomiting and immediately consult a doctor. In case of skin contact, immediately wash with water and soap. Change your soiled clothing as soon as you can. Measures in case of a fire In case of a fire, use foam, dry powder extin- guisher, or carbon dioxide (CO...
  • Page 8: Use Caution During Operation

    Use caution during operation Prior to mowing Danger of injury during motor start Personal protective measures Do not start the engine During mowing, always wear – if fuel was spilled. safety shoes with good grip and long trousers. Do not mow with –...
  • Page 9: Caution When Mowing Slopes

    Be especially carefully when mowing on soft To avoid risk of fire, keep the following com- ground, nearby landfills, ditches, dikes and wa- ponents free of dirt, grass, hay, leaking oil, ter edges. grease, etc.: – Engine – Silencer (manifold, guard, clearances) –...
  • Page 10: When Work Is Completed

    If the device tilts or slips Use caution during maintenance – If you attempt to stop a device that is tilting and repair or slipping, severe injuries can result. If tilt- Only carry out work as described in these op- ing or sliding cannot be stopped in the be- erating instructions.
  • Page 11: Device Description

    Device description 1 Impact protection 2 Choke 3 Height adjustment rear 4 Starter grip 5 Tank filler spout 6 Tank ventilation 7 Handle bar with control elements 8 Fuel valve 9 Bar locking 10 Spark plug connector 11 Ventilation grid 12 Silencer 13 Air filter 14 Cutting height adjustment front...
  • Page 12: Control Elements

    Vario lever (D) Drive lever (A) With the vario lever, you can continuously ad- (AS 53 2T ES 4WD RB) just the speed of the device while the engine With the drive lever, you switch the drive on is running.
  • Page 13: Information On Mowing

    Reverse (F) Information on mowing To switch on the reverse, you must release Prior to mowing, check your device for com- the drive lever. The speed in reverse is half pleteness, proper functioning, and cleanliness. as fast as when driving forward. A dirty ventilation grid causes overheating of Reverse off (0): the engine, this can damage the engine.
  • Page 14: Prior To Starting

    You can buy Fuchs “TITAN 2T 100S“ from Prior to starting your AS-dealer: Fuel Container ET no. The engine must be run on a mixture of petrol 1 litres G00041042 and two-stroke oil. (resealable bottle) For possible mixing ratios, see chapter Mixing 100 ml G00041056 ratios fuel.
  • Page 15: Tanking Up

    Tanking up Warning Fuel is ignited by hot engine parts. ► Prior to filling up, switch off the engine and wait for at least 20 minutes until the engine has cooled down. Observe the safety instructions regarding the fuel! Filling up with fuel 1.
  • Page 16: Starting

    8. Pull the starter grip slowly out until you feel Starting resistance and then pull out quickly – en- gine starts to run. Danger 9. Slowly bring the starter grip back and at- tach it onto the starter grip holder. Danger of electric shock from live cables on 10.
  • Page 17: Driving In Reverse

    Driving in reverse Switching off and parking During driving in reverse, only the two front Warning wheels are driven. The speed is half as fast as when driving forward. On a slope, the device can roll away. Drive reverse on: ►...
  • Page 18: Transport

    Transport Notice Risk of damage due to incorrect fastening of Switch off the engine and wait until the blade straps. comes to a standstill before you lift the device. Two people should lift the device. ► Fasten the straps only at the points shown in the figure.
  • Page 19: Maintenance

    Prior to all maintenance and cleaning work Maintenance when the engine is not running: Let the device cool down for at least 20 Warning minutes. Risk of injury due to unexpected movement. Pull off the plug connector. When inspections are carried out, the Close the fuel valve and the tank ventila- device can move unexpectedly.
  • Page 20: Maintenance Overview

    Maintenance overview Component Action Maintenance interval Device Check for safe working condition (basic inspection). ■ ▲ Clean. ■ Customer service. ▲ Fuel Check fuel level. ■ Is the tank cap closed? ■ Tank, fuel valve, Check parts for leaks and check for good condition. ■...
  • Page 21 Flammable material Remove easily flammable debris buildup from the engine ■ ▲ and the device. Tyres Check tyres and, if necessary, the tyre pressure. ■ ▲ Before and after each use. Annually or every 50 h. ■ By the user when the engine is not running. □...
  • Page 22: Cleaning The Device

    Cleaning the device Check all parts that that contain fluids for leaks and proper condition. These can be: Fuel tank, fuel valve, fuel lines, carburetor, engine, gears, battery, hydraulic system. In case of leaks, contact an authorised service centre. Maintaining the engine Warning If the speed of rotation is set too high, ob- jects can be ejected.
  • Page 23: Maintaining The Air Filter

    Maintaining the air filter Checking rear brake Warning Warning Cleaning agents pose a fire and explosion If the brakes are incorrectly adjusted, the hazard. device can roll away. ► Never clean the air filter with flammable ► Make sure that the brake is always func- solvents.
  • Page 24: Checking The Drive

    Checking the drive Checking the reverse gear 1. Place the device on a surface with a good grip (e.g. concrete or asphalt). 2. Switch off the engine. 3. Actuate the drive. 4. Try to pull the device backwards. If the rear wheels block, the drive is set cor- rectly.
  • Page 25: Checking The Blade

    Checking the blade Unusual vibrations are an indication that – blades are missing or broken, Warning – the blade is worn excessively or on one side Wear or damage on the blades and the fastening elements can result in the blades –...
  • Page 26: Assembly

    Assembly Scope of delivery The device is shipped in a carton. The scope of delivery includes: – The device. – This operating manual. – Manufacturer’s certificate. Attention: Do not crush the Bowden cables (1) – Impact protection. when fixing the handlebar. –...
  • Page 27: Storage

    Via www.as-motor.com you have direct access Storage to our spare parts portal. Here you can quickly find the right spare part using the search func- Storing the device tion and print out the corresponding spare parts list. This makes it easier for you to place Keep the device in a closed, dry, and well vent- the subsequent order via your authorised spe- ilated room and out of reach of children.
  • Page 28: Troubleshooting

    Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.com. Problem Possible cause Remedy Engine does not start Engine brake lever is not Press the engine brake lever towards pressed.
  • Page 29 Engine starts badly or Choke is closed. Open the choke. runs irregularly Air filter is dirty. Maintain air filter (see Maintenance). Poor quality, dirty, or old fuel. Always use fresh fuel. Spark plug is dirty, damaged, or Clean spark plug and check electrode incorrect electrode gap.
  • Page 30 The device does not Brake is adjusted incorrectly, Check the parking brake (see chapter stop when the brake worn, or defective. Maintenance). Authorised service is activated centre. The engine does not Switching off system is defect- Close the fuel valve. switch off ive.
  • Page 31: Fuel Ratios Of Fuel 2-Stroke Devices

    Fuel ratios of fuel 2-stroke devices Fuel Fully synthetic two-stroke oil Only with Titan 2T 100S (octane rating ROZ 91 min.) 1:50 1:100 litres Litre (=ml/cm Litre (=ml/cm 0.02 (20) 0.01 (10) 0.04 (40) 0.02 (20) 0.06 (60) 0.03 (30) 0.08 (80) 0.04 (40) 0.1 (100)
  • Page 32: Technical Data

    Technical data Type AS 53 2T ES 4WD RB AS 53 2T ES 4WD Range of application (temperature) 0 - 30 °C Engine, type One cylinder two stroke engine Manufacturer AS-Motor Germany Type AS 165 ES (EasyStart) Cylinder capacity 165 cm Performance 2,8 kW (3,8 PS)
  • Page 33: Accessories

    Accessories Spray paint 400 ml, colour orange: G00011050 Operating hours counter: G06927008 Clinometer: G06950027 Mulching accessory: G04323005 Grass collection bag: G04324000 Rear brake HRB-53: G04334001 Conversion kit drive: G04480001...
  • Page 34: Declaration Of Conformity

    AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.com Declaration of conformity We declare that the lawnmowers Type AS 53 2T ES 4WD RB AS 53 2T ES 4WD Cutting width 53 cm 53 cm starting from serial no. 033919010001...
  • Page 36 AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.com THE HIGH GRASS MOWER AND 2 STROKE ENGINE MANUFACTURE AS-Motor is your premium manufacturer for lawn and high grass mowers as well as 2 stroke en- gines. We offer our customers professional technology for steep slopes, rough terrain, and lawn care.
