Control panel
Upper zone
Cabinet
Sliding shelf
Lower zone
Sliding shelf
Front ventilation
base
Adjustable foot (4)

BEFORE USING YOUR APPLIANCE

 Remove the exterior and interior packing.
 Before connecting the appliance to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
 Clean the interior surface with lukewarm water using a soft cloth.
 Install the handle on the door if it is not already in place (see page 7).

INSTALLATION OF YOUR APPLIANCE

 The appliance is designed for free-standing installation.
 WARNING: Do not store or install the appliance outdoors.
 CAUTION
:
This appliance is designed for storing and cooling wines. Do not store perishable food,
medicine or other medical products.
 Place your Wine Cellar on a floor that is strong enough to support it when it is fully loaded. To level the
unit, adjust the four leveling legs. (It is advisable to use a carpenter's level.)
 Leave at least 2 inches of space around the back and sides of the unit, and 1 inch on top, to allow
proper air circulation to cool the compressor and condenser. Take care that the air vent at the front of

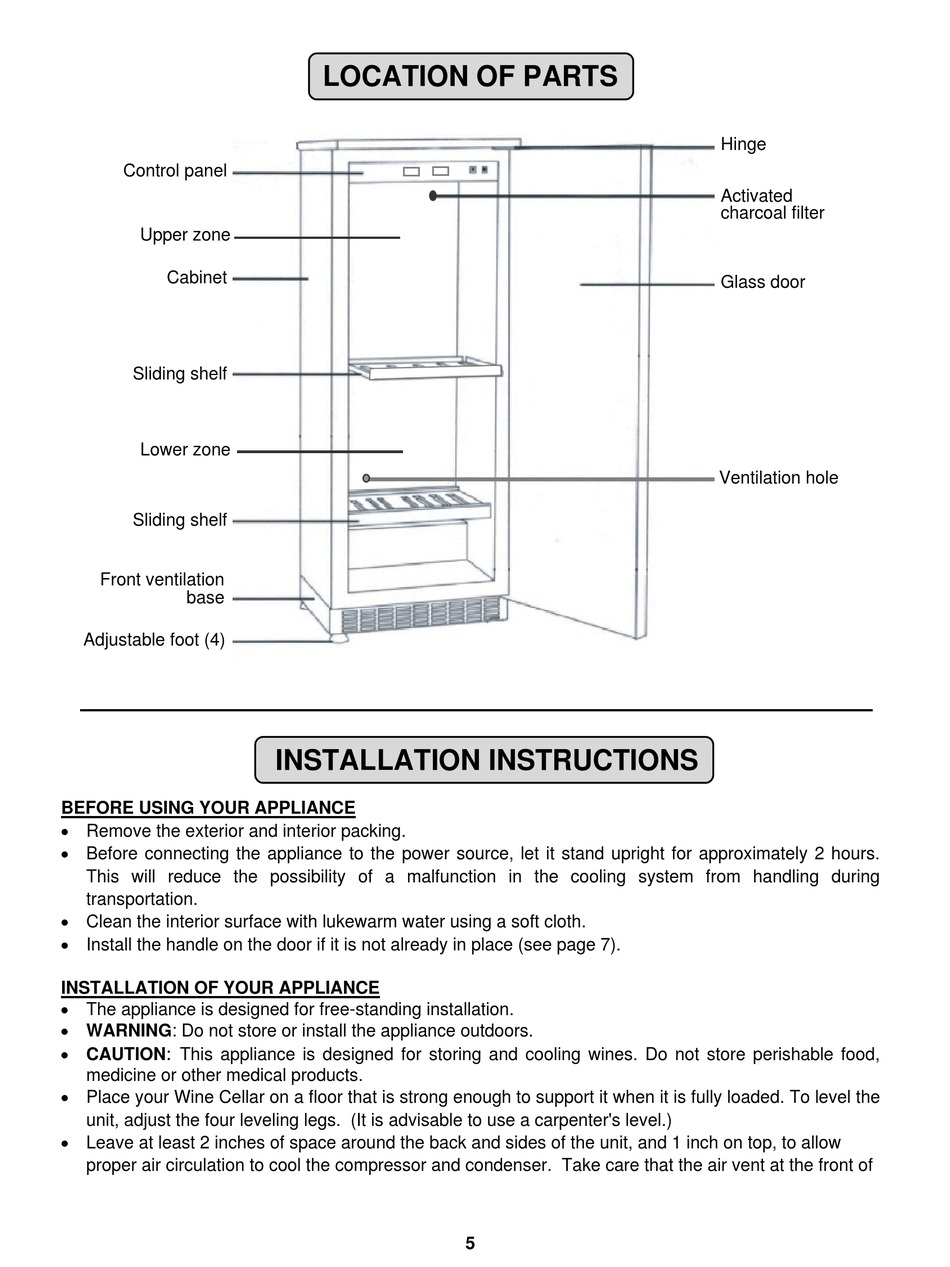

LOCATION OF PARTS

INSTALLATION INSTRUCTIONS

5
Hinge
Activated
charcoal filter
Glass door
Ventilation hole
