Location Of Parts - Summit SWC1380D Owner's Manual

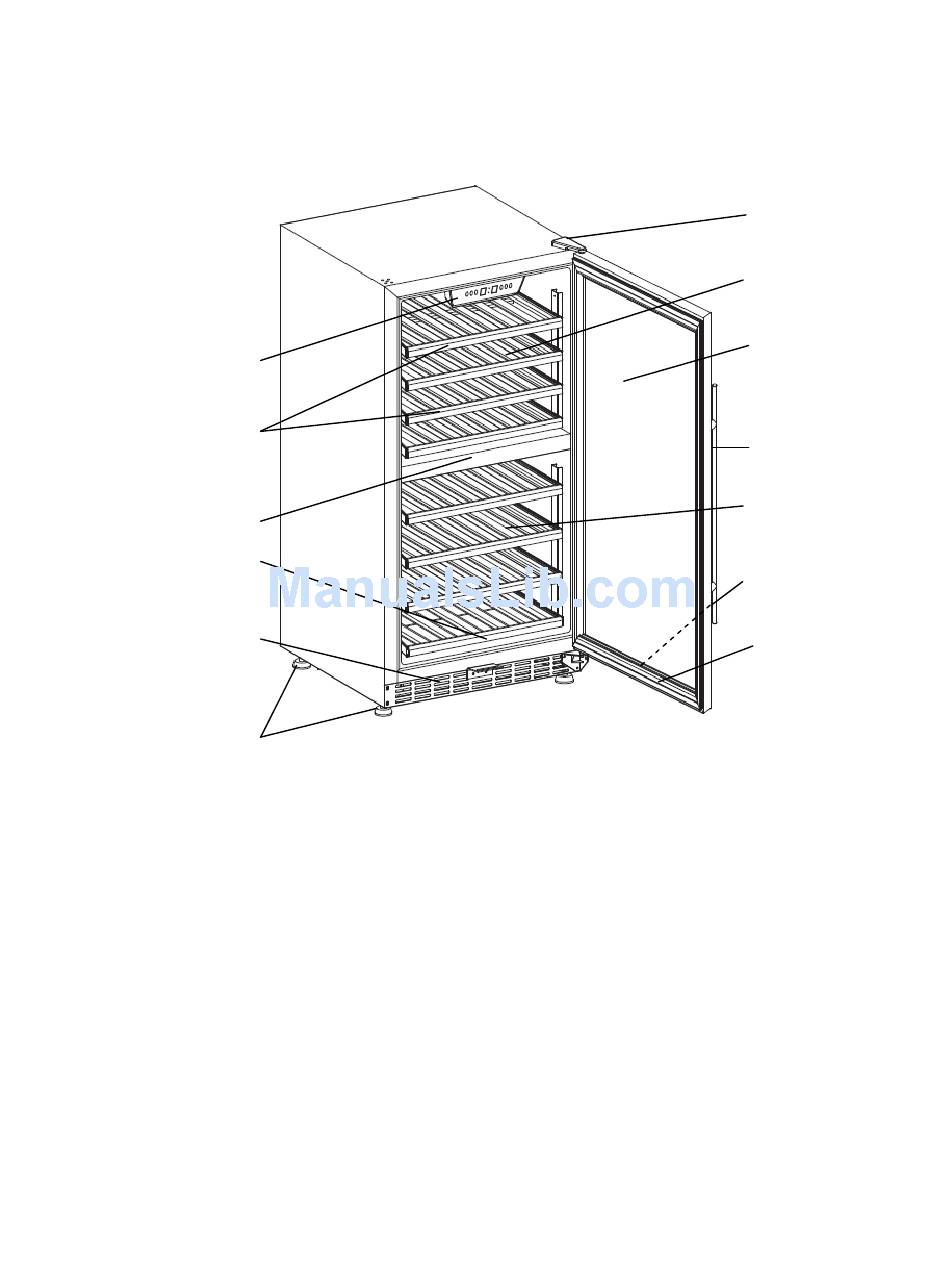

Control panel
Full-size wooden shelves
Baffle plate
Short wooden shelf
Ventilation grille
(kickplate)
Adjustable legs
NOTE: Each zone has a Ventilation fan and a Sensor located on the rear wall.
An Active carbon filter is installed in the rear wall of the upper zone. This
filter improves air purity and cooling efficiency, and helps maintain an
odor-free environment for the stored wine. We recommend that the filter be
changed every 12 months.

LOCATION OF PARTS

4
Upper hinge
Upper zone
Glass door
Handle
Lower zone
Key lock
Door seal (gasket)
