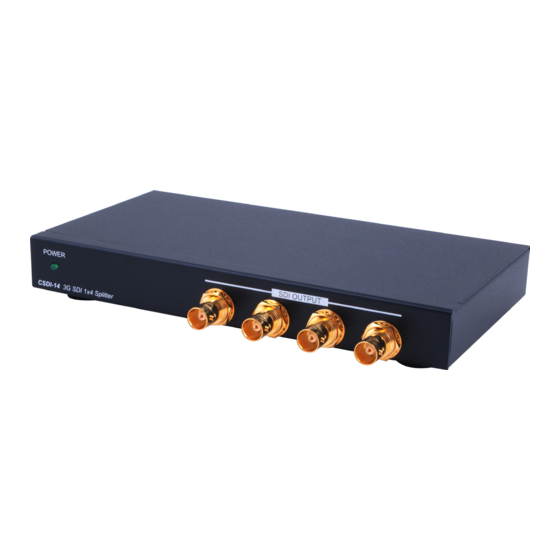

- Page 1 CSDI-14 3G-SDI 1 by 4 Splitter Operation Manual CSDI-14...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without signal loss. For professionals this means that it is now easier to Splitter a 3G-SDI signals up to four SDI signal outputs. -
Page 6: Specifications
6. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Input/Output Ports 1/4 BNC (SD-SDI/HD-SDI/3G-SDI) Support Timing SD-SDI: 480i / 576i HD-SDI: 720p@50/60, 1080i@50/60, 1080p@24/25 3G-SDI: 1080p@50/60 Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel POWER SDI OUTPUT CSDI-14 3G SDI 1x4 Splitter ① ② ① Power LED: This green LED will illuminate when the device is connected with power supply. ② SDI OUTPUT: These slots are to connect to the SDI displays with an SDI cables for displaying images. -
Page 8: Connection And Installation
8. Connection and Installation Camcorder SDI Monitor SDI Monitor CLUX-SDI2HC HDMI TV/Monitor... -
Page 9: Acronyms
Acronyms Acronym Complete Term Bandwidth 2.97Gbit/s ≈ 3G Bayonet Neill-Concelman Serial Digital Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110315 MPM-CSDI14...
