Short user guide

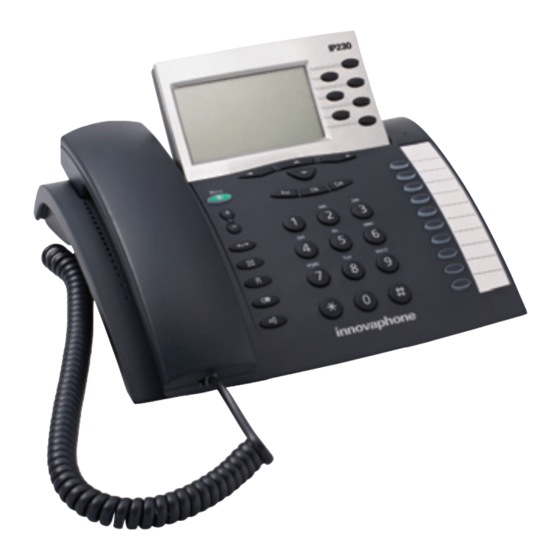

innovaphone IP230
Display
Symbol
Description
Loudspeaker
Microphone
Call diversion
Telephone locked
Handset
Headset
Connection down
Connection up
Keys
Key
Enter main menu, leave menu and save changes
Enter menu, confirm selection, enter
Arrow keys for orientation in menu
Delete left character
Leave menu without saving changes
Enter to complete entries or confirm selection
Exit menu
Do not disturb, ring tone off
Displays in-bound call list
Displays out-bound call list
Starts hands-free calling
...in idle state
Name
Symbols
Date
...during connection
Setup a conference
Adjust volume of speaker
Left and right arrow to adjust volume
Terminate active call
Terminate active call
Mute, microphone off
Consultation call
Forward active call
Speaker on, change to hands-free mode
Number
Time
Symbols

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP230 and is the answer not in the manual?

Questions and answers

Related Manuals for Innovaphone IP230

Summary of Contents for Innovaphone IP230

  • Page 1 Short user guide innovaphone IP230 Display Symbol Description Name Number Loudspeaker Microphone Call diversion Telephone locked Handset Headset Connection down Connection up Symbols Date Time Symbols Keys ...in idle state ...during connection Enter main menu, leave menu and save changes...
  • Page 2 Actions Action Status Keys Description pick up Accept call The display shows caller and called party Reject call Caller gets a busy tone hang up, Terminate call The active call is terminated 0...9, then Make call All numbers can be entered after picking up the handset then Redial...

  • Page 3: Function Key Configuration

    Function key configuration Function Display Description Dial Dials the configured number Call Forwarding Configuration of automatic call forwarding Up to 4 different destinations can be configured Call forwarding unconditional on busy or on no reply 3: Off shows call forwarding on busy or no reply, Call forwarding unconditional shows the complete number in display Lock Locks the phone, only out-bound calls using dial pad are possible...
  • Page 4 Partner keys The partner keys can be found on the right hand side of the telephone IP230. There are 10 partner keys available on the device. Using appropriate additional modules the number of partner keys can be extended by a further 30 keys.
