- Page 1 PRODUCT innovaphone VoIP products 2010 ANALYSIS IP telephony solutions from innovaphone...
-
Page 2: Product Analysis: Innovaphone Voip Products
Product analysis: innovaphone VoIP products 2010 ComConsult Technologie Information GmbH, Pascalstraße 25, 52076 Aachen, retains all copyrights in this document. All rights are reserved. No part of this document may be adapted, reproduced - especially for reprinting, transmitted, or stored in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system, without written prior permission from Comconsult Technologie GmbH. - Page 3 Product analysis: innovaphone VoIP products 2010 Product analysis innovaphone VoIP products 2010 Markus Geller Copyright © 2010 by ComConsult Technologie Information GmbH...
-
Page 4: Table Of Contents
REDUNDANCY CONCEPT Active/passive configuration Scalable distribution HOSTED PBX Multi-client capability MOBILITY OCS INTEGRATION THROUGH ‘DUAL FORKING’ PRACTICAL INSTALLATION IN THE COMCONSULT LABORATORY Concept Lab set-up Commissioning and administration Implementation CONCLUSION Page i Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 5: Product Overview And Architecture
The innovaphone AG headquarters are based in Sindelfingen. The company provi- des professional telephone systems entirely based on IP . innovaphone is a privately held medium-sized business, founded in 1997. Currently, innovaphone AG has about 60 em- ployees in six locations. Representative of- fices also exist in Hanover, Hagen and Berlin, as well as in Italy and Austria. -
Page 6: Product Range

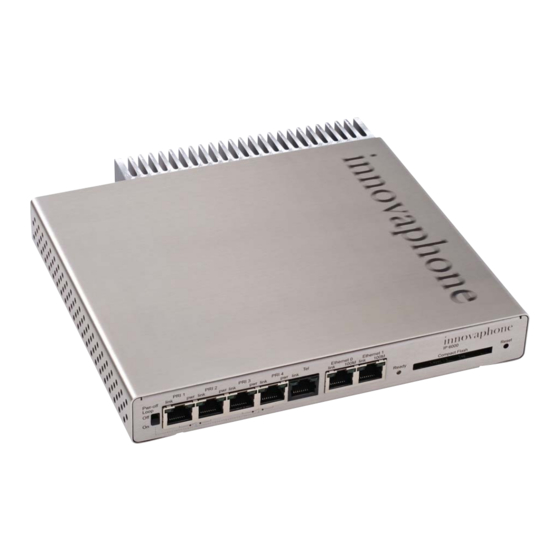

Figure 3: The innovaphone flagship, the IP6000 Page 2 Copyright © 2010 by ComConsult Technologie Information GmbH... - Page 7 8 hours talk time and almost distribute the load. Several primary multiplex 40 hours standby. It supports the standards Copyright © 2010 by ComConsult Technologie Information GmbH Page 3...
-
Page 8: Protocols And Interfaces
This together with the fact that H.323 development has been completed, means that slightly more services are provided over H.323 than over SIP . Figure 4: The high-end telephone IP240 Page 4 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 9: Figure 5: System Connection Via Qsig
PBXs in its offices in Vi- (see Figure 5). enna and Salzburg. They use, for example, Figure 5: System connection via QSIG Copyright © 2010 by ComConsult Technologie Information GmbH Page 5... -
Page 10: Presence
Mi- the PBX. This makes Hot Desking easier: If crosoft OCS. a user registers on a different telephone, he can still automatically use his individual tele- Page 6 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 11: Figure 7: Terminal Profile Pbx
PPTP then sibility to create configuration templates for ensures a VPN connection to the company. various scenarios on the telephones to be This supports encryption according to MPPE Copyright © 2010 by ComConsult Technologie Information GmbH Page 7... -
Page 12: Home Office Employees
PPP connections, the terminals support four connections - regardless of whether PPoE or PPTP is used. It is thus possible to integrate home office em- ployees without needing an additional router with VPN functionality. Page 8 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 13: Figure 9: Pptp Client Configuration
Product analysis: innovaphone VoIP products 2010 Figure 9: PPTP client configuration Copyright © 2010 by ComConsult Technologie Information GmbH Page 9... -
Page 14: Location Concept
As the master manages all the user data in- number. The call is then processed through cluding the respective location, users have the the remote trunk line. Figure 10: Configuration of a replicator on a slave PBX Page 10 Copyright © 2010 by ComConsult Technologie Information GmbH... - Page 15 Should the local outside line fail or all lo- cal lines be busy, then another trunk line can still be used for outgoing calls by selecting a different prefix. However, this always has to be done manually. Copyright © 2010 by ComConsult Technologie Information GmbH Page 11...
-
Page 16: Redundancy Concept
Cisco’s 7960 IP phones. This function is supported by innovaphone terminals. tiated and the standby system takes over all Figure 11: Master/standby configuration Page 12 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 17: Figure 12: Failed Sip Registration When Changing-Over From Standby To Normal Operation
Product analysis: innovaphone VoIP products 2010 Figure 12: Failed SIP registration when changing-over from standby to normal operation Figure 13: Looping in a trunk line Copyright © 2010 by ComConsult Technologie Information GmbH Page 13... -
Page 18: Scalable Distribution
Ethernet (PoE) accor- ding to IEEE 802.3af and need a maximum of just 15 watts. Furthermore, all large systems, Figure 14: Scalable distribution Page 14 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 19: Hosted Pbx
As the various systems all work autarkic on one box, each client can use his own applications, his own music-on- hold and own announcements. Figure 15: Configuration of virtual PBXs Copyright © 2010 by ComConsult Technologie Information GmbH Page 15... -
Page 20: Mobility
(one number solution). The GSM client only works together with the innovaphone PBX. Figure 16: Mobility Integration – In-coming call Page 16 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 21: Figure 17: Mobility Integration - Outgoing Call
In doing so, the party being called only sees the employee’s extension number and the mobile phone number remains hidden. Copyright © 2010 by ComConsult Technologie Information GmbH Page 17... -
Page 22: Ocs Integration Through 'Dual Forking
OCS client bers in a home office. • OCS as CTI user interface for innovaphone IP phones • Connection of UM functions from the Microsoft Exchange Figure 18: Microsoft OCS Integration Page 18 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 23: Practical Installation In The Comconsult Laboratory
DECT station IP1200. A Mi- crosoft server 2008 was used as the domain controller in order to show the connection to the Microsoft Unified Messaging solution, as Figure 19: Lab set-up Copyright © 2010 by ComConsult Technologie Information GmbH Page 19... -
Page 24: Figure 20: Web Based Administration: Overview Of Ip302
Product analysis: innovaphone VoIP products 2010 Figure 20: Web based administration: overview of IP302 Figure 21: Configured objects for the laboratory set-up Page 20 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 25: Implementation
Figure 23: Group member configuration No changes were made to the existing 6 basic settings for the presence settings (busy, vacation, lunch, away, meeting, none) Copyright © 2010 by ComConsult Technologie Information GmbH Page 21... -
Page 26: Figure 24: Local Gateway Voicemail Set-Up
T.38. or not answering. Figure 25: Call Routing Page 22 Copyright © 2010 by ComConsult Technologie Information GmbH... -
Page 27: Figure 26: Setting Up An Exchange As Gateway Destination
Providing relevant call routers between the PBX and UM system was the last step to a successful setup. Interworking between the Exchange and the innovaphone PBX is realised over SIP/QSIG. Copyright © 2010 by ComConsult Technologie Information GmbH Page 23... -
Page 28: Conclusion
All telephone systems are also gateways to PSTN via ISDN. Unified and well structured web inter- face All important SIP security features such as SIP/TLS and SRTP are supported High scalability thanks to flexible locati- Page 24 Copyright © 2010 by ComConsult Technologie Information GmbH... - Page 29 Figure 22: Setting up function keys Figure 23: Group member configuration Figure 24: Local gateway voicemail set-up Figure 25: Call Routing Figure 26: Setting up an exchange as gateway destination Copyright © 2010 by ComConsult Technologie Information GmbH Page 25...
- Page 30 Product analysis: innovaphone VoIP products 2010 Page 26 Copyright © 2010 by ComConsult Technologie Information GmbH...
- Page 31 Pascalstraße 25 - 52076 Aachen Telefon 02408/955-400 - Fax 955-399 report@comconsult-research.com w w w. c o m c o n s u l t - r e s e a r c h . d e...
