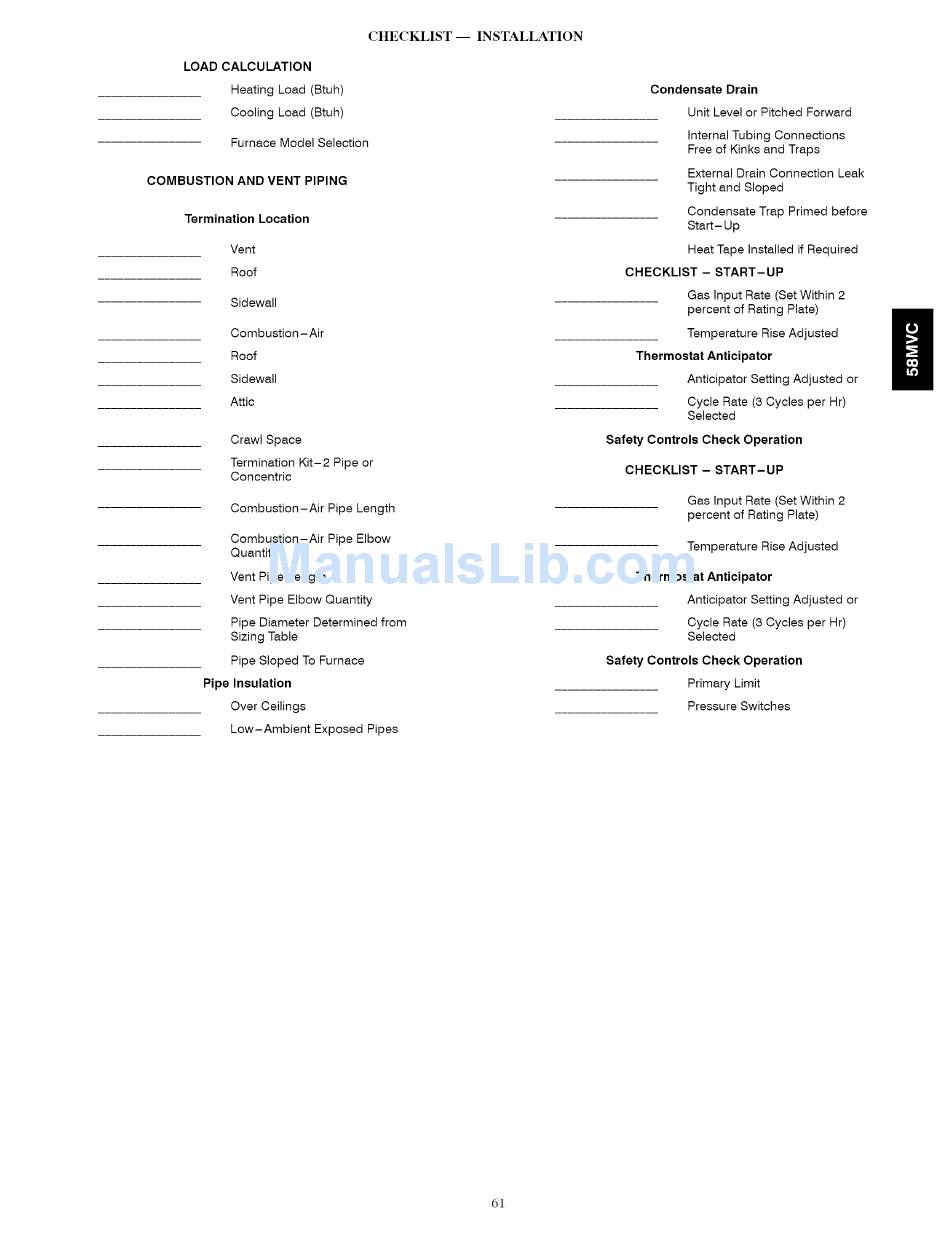

CHECKLIST- I NSTALLATION
LOAD CALCULATION
Heating Load (Btuh)
Cooling Load (Btuh)
Furnace Model Selection
COMBUSTION AND VENT PIPING
Termination Location
Vent
Roof
Sidewall
Combustion -Air
Roof
Sidewall
Attic
Crawl Space
Termination Kit-2 Pipe or
Concentric
Combustion-Air Pipe Length
Combustion-Air Pipe Elbow
Quantity
Vent Pipe Length
Vent Pipe Elbow Quantity
Pipe Diameter Determined from
Sizing Table
Pipe Sloped To Furnace
Pipe Insulation
Over Ceilings
Low-Ambient Exposed Pipes
Condensate Drain
Unit Level or Pitched Forward
Internal Tubing Connections
Free of Kinks and Traps
External Drain Connection Leak
Tight and Sloped
Condensate Trap Primed before
Start- Up
Heat Tape Installed if Required
CHECKLIST - START-UP
Gas Input Rate (Set Within 2
percent of Rating Plate)
Temperature Rise Adjusted
Thermostat Anticipator
Anticipator Setting Adjusted or
Cycle Rate (3 Cycles per Hr)
Selected
Safety Controls Check Operation
CHECKLIST - START-UP
Gas Input Rate (Set Within 2
percent of Rating Plate)
Temperature Rise Adjusted
Thermostat Anticipator
Anticipator Setting Adjusted or
Cycle Rate (3 Cycles per Hr)
Selected
Safety Controls Check Operation
Primary Limit
Pressure Switches
