Carrier Infinity 59TN6A Product Data

59TN6A
InfinityR Two---Stage, Variable Speed
4---Way Multipoise
Condensing Gas Furnace
Series 100
The 59TN6A Multipoise Variable- -Speed Condensing Gas Furnace
features the two- -stage InfinityR System. The Comfort Heat
TechnologyR two- -stage gas system is at the heart of the comfort
provided by this furnace, along with the Infinity variable- -speed
ECM blower motor, and two- -speed inducer motor. With an
Annual Fuel Utilization Efficiency (AFUE) of up to 96.7%, the
Infinity two- -stage gas furnace provides exceptional savings when
compared to a standard furnace. This Infinity Gas Furnace also
features 4- -way multipoise installation flexibility, and is available
in five model sizes. The 59TN6A can be vented for direct
vent/two- -pipe, ventilated
applications. A Carrier Infinity Control and Infinity Air
Conditioner or Heat Pump can be used to form a complete Infinity
System. All units meet California Air Quality Management District
emission requirements. All sizes are design certified in Canada.
STANDARD FEATURES
S InfinityR System; compatible with single- - and multiple- -zone
Infinity systems.
S All sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+ AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage.
S Quiet operation. Compare for yourself at HVACpartners.com.
S Ideal height 35- -in. (889 mm) cabinet: short enough for taller
coils, but still allows enough room for service.
S Infinity Features—match with the Infinity Control for Infinity
System benefits.
S Integral part of the Ideal Humidity SystemR Technology.
Product Data
combustion air, or single- -pipe
S Silicon Nitride Power Heat™ Hot Surface Igniter.
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system.
S ComfortFan™ technology allows control of continuous fan
speed from a compatible thermostat.
S External Media Filter Cabinet included.
S 4- -way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow and optional through- -
the- -cabinet downflow venting capability.
S Variable- -Speed blower motor, two- -speed inducer motor, and
two- -stage gas valve.
S Self- -diagnostics and extended diagnostic data through the
Advanced Product Monitor (APM) accessory or Infinity User
Interface.
S Adjustable blower speed for cooling, continuous fan, and

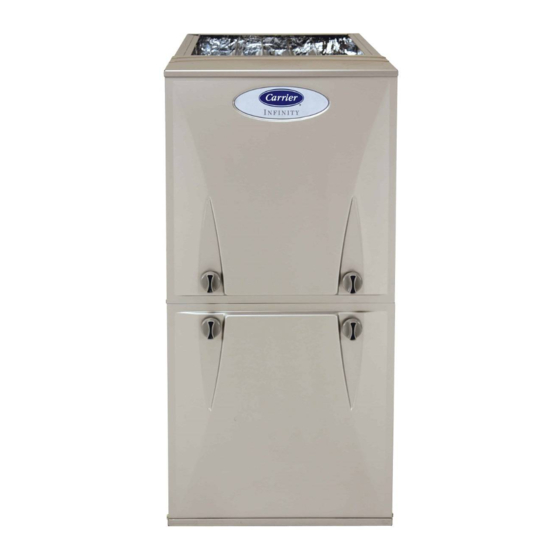

A11263
dehumidification.
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
S Propane convertible (See Accessory list).
S Factory- -configured ready for upflow applications.
S Fully- -insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
S Installation flexibility: (sidewall or vertical vent).
S Residential installations may be eligible for consumer financing
through the Retail Credit Program.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.

LIMITED WARRANTY*

S 10 year parts and lifetime heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
Jurisdictions where warranty benefits cannot be conditioned on registra-
{
tion will receive registered limited warranty benefits.
CERTIFIED
1
Use of the AHRI Certified Mark indicates a
TM
manufacturer's participation in the program. For
verification of certification for individual products,
go to www.ahridirectory.org.
