Icom IC-R9500 Service Manual page 96

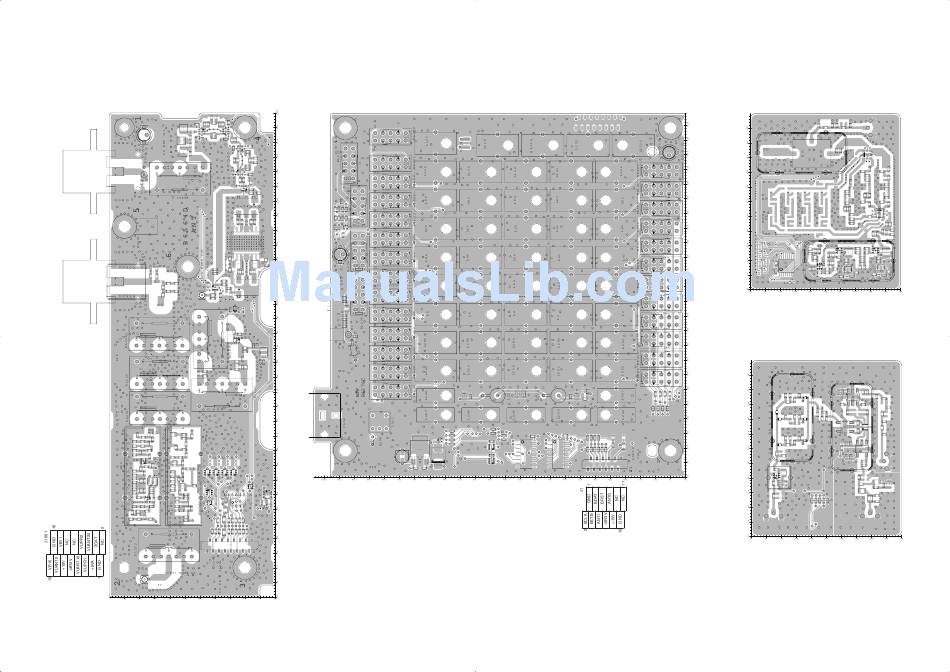

• ANT UNIT (TOP VIEW)
7 - 3
• BPF UNIT (TOP VIEW)
• MIX-1 UNIT (TOP VIEW)
R301 L301
IC301
IC202
C244 C252
L212
MP301
C243
C241 C249
C236
C250
C235
L210
L213
C239 C247
C233
C231
C230
L215
C264
R109
R108
R111 C106 C110
C107 C109
R112
C118 R103 C108
C112
C105
C117
R104 C111
C104
IC1 IC103
L103
C121 R102
L101
C125
L105 C122 C123
C126 EP102
EP101
C124
MP101
• MIX-2 UNIT (TOP VIEW)
L21
L2
D122
L121
R26 R27
C181 C3
L183
D141 D142
C1
L142
IC21
C6
D162
L161
D161
L23
R105
C30
MP121 C29
C103
MP21
EP102
C102
L43
C44
C104
C45
L41
C42
C43
