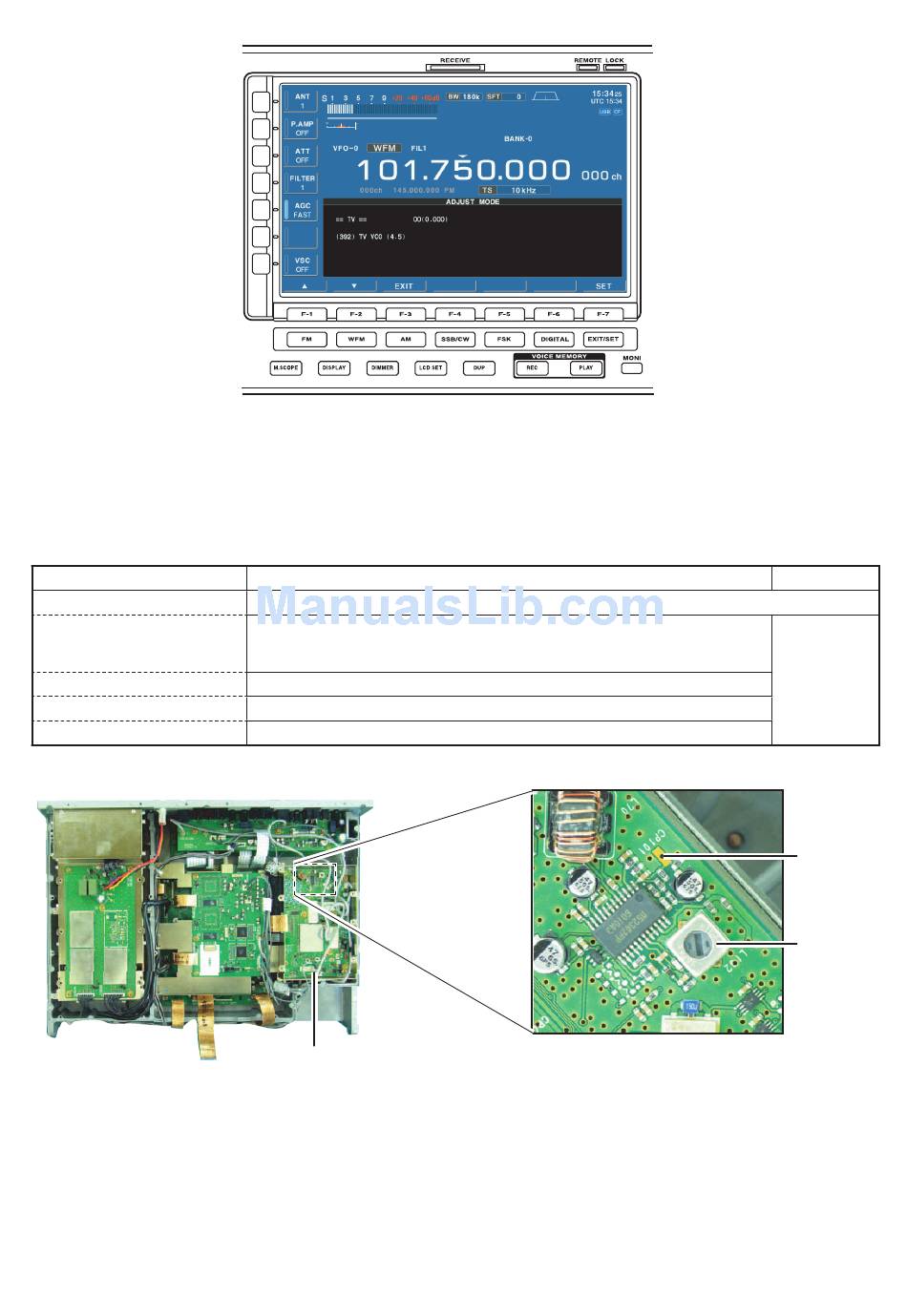

4-8 TV ADJUSTMENT [TV] (except for USA version)
• Push [F-5•TV] key to select TV ADJUSTMENT.
• Connect the SG to [ANT1/HF ANT3] and set as;
Frequency : 97.25 MHz
Level : +54 dBu
Modulation : None
NOTE: HOLD the adjustment condition (SG level and frequency etc.) until next ADJ item is displayed.
ADJUSTMENT ITEM
VCO LOCK VOLTAGE
[TV VCO(4.5)]
[TV VCO(5.5)]
[TV VCO(6.0)]
[TV VCO(6.5)]
Connect a DC voltmeter to the check point CP101 (SCOPE/TV UNIT).
1) Rotate [MAIN DIAL] to set the adjustment value to "00."
2) Adjust L102.
3) Push [F-7] key.
(Same as above)
(Same as above)
(Same as above)
SCOPE/TV UNIT
OPERATION
4 - 21
VALUE
2.5 V
CP101
L102
