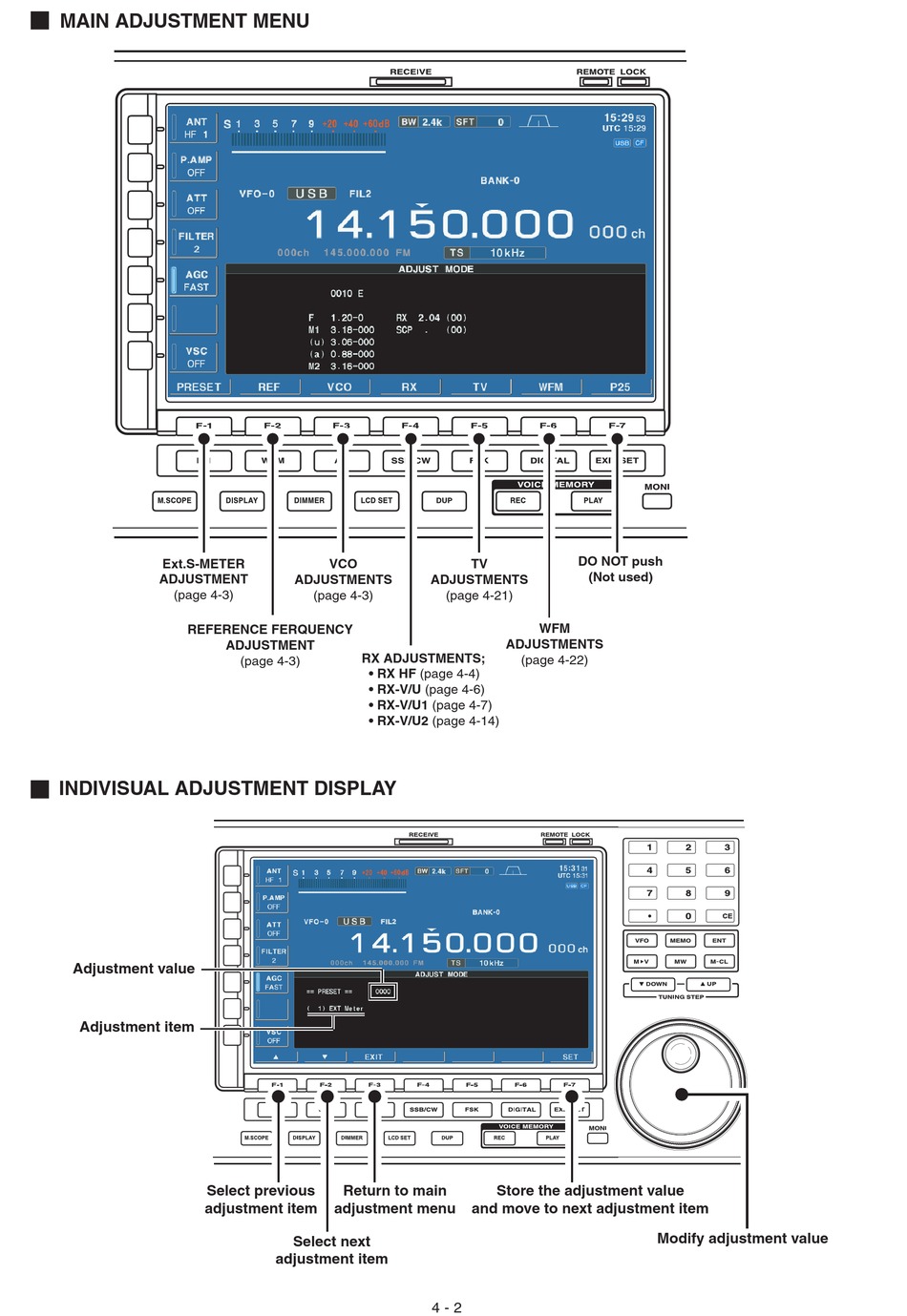

¤ MAIN ADJUSTMENT MENU
Ext.S-METER
ADJUSTMENT
(page 4-3)
REFERENCE FERQUENCY
¤ INDIVISUAL ADJUSTMENT DISPLAY
Adjustment value
Adjustment item
VCO
ADJUSTMENTS
(page 4-3)
ADJUSTMENT
RX ADJUSTMENTS;
(page 4-3)
• RX HF (page 4-4)
• RX-V/U (page 4-6)
• RX-V/U1 (page 4-7)
• RX-V/U2 (page 4-14)
Select previous Return to main
adjustment item adjustment menu
Select next
adjustment item
DO NOT push
TV
(Not used)
ADJUSTMENTS
(page 4-21)
WFM
ADJUSTMENTS
(page 4-22)
Store the adjustment value
and move to next adjustment item
4 - 2
Modify adjustment value
