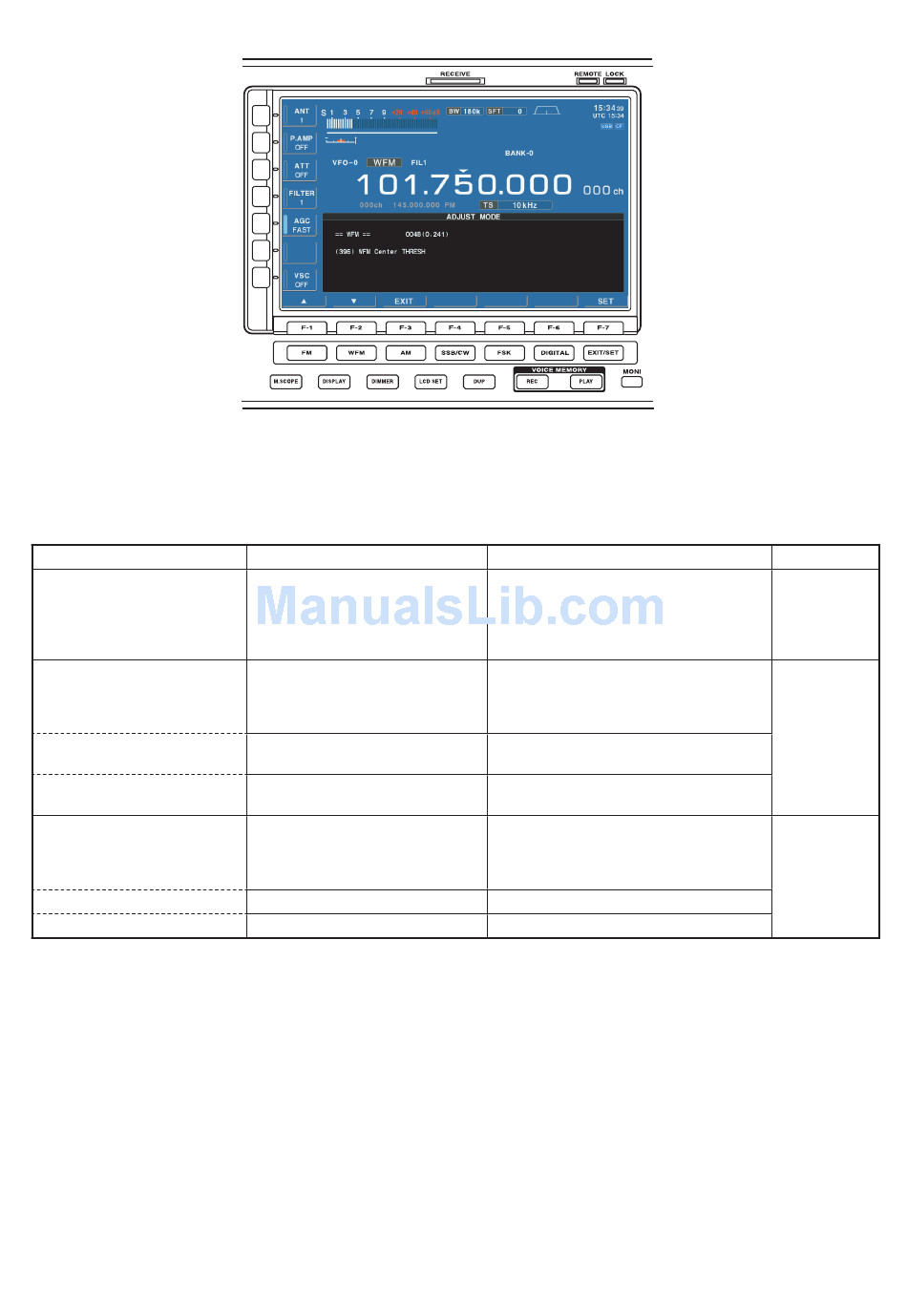

4-9 WFM ADJUSTMENT [WFM]
• Push [F-6•WFM] key to select WFM ADJUSTMENT.
• Connect the SG to [ANT1/HF ANT3] and set as;
Modulation : None
NOTE: HOLD the adjustment condition (SG level and frequency etc.) until next ADJ item is displayed.
ADJUSTMENT ITEM
WFM
CENTER METER
THRESHOULD
[WFM Center THRESH]
WFM
S-METER
[WFM S0 LEVEL]
[WFM S9 LEVEL]
[WFM S9+60 LEVEL]
WFM
CENTER METER
[WFM Center (±0kHz)]
[WFM Center (-100kHz)]
[WFM Center (+100kHz)]
ADJUSTMENT CONDITION
• Set the SG as;
Frequency : 101.75 MHz
Level : +4 dBu
• Set the SG as;
Frequency : 101.75 MHz
Level : +4 dBu
• Set the SG as;
Level : +34 dBu
• Set the SG as;
Level : +80 dBu
• Set the SG as;
Frequency : 101.75 MHz
Level : +60 dBu
(Same as above)
(Same as above)
OPERATION
Push [F-7] key.
Push [F-7] key.
Push [F-7] key.
Push [F-7] key.
Push [F-7] key.
Push [F-7] key.
Push [F-7] key.
4 - 22
VALUE
(Automatic
adjustment)
(Automatic
adjustment)
(Automatic
adjustment)
