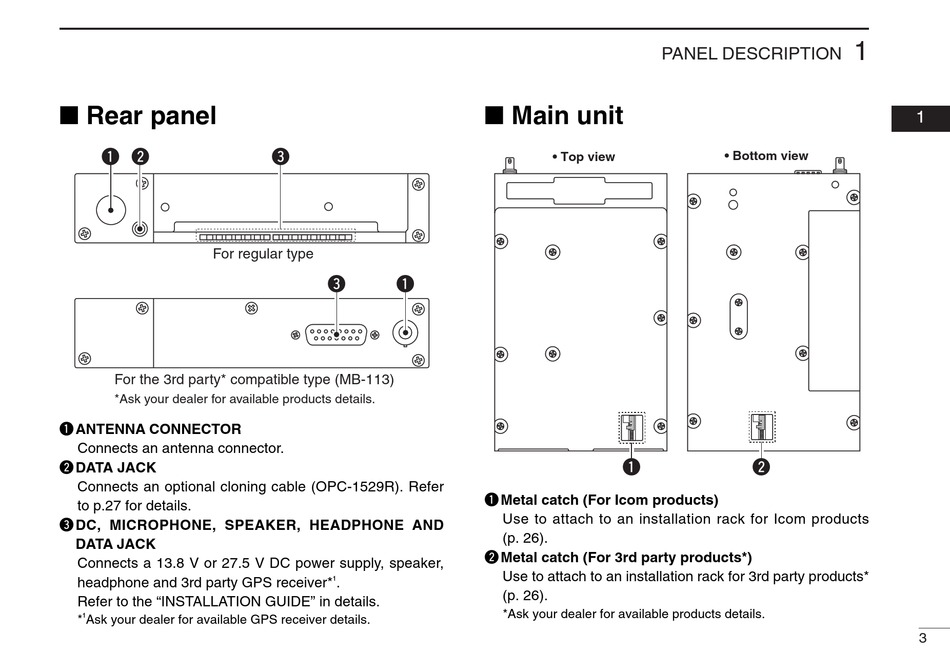

I Rear Panel; I Main Unit - Icom iC-A210E Instruction Manual

I Rear panel

q w
For regular type
For the 3rd party* compatible type (MB-113)
*Ask your dealer for available products details.
q ANTENNA CONNECTOR
Connects an antenna connector.
w DATA JACK
Connects an optional cloning cable (OPC-1529R). Refer
to p.27 for details.
e DC, MICROPHONE, SPEAKER, HEADPHONE AND
DATA JACK
Connects a 13.8 V or 27.5 V DC power supply, speaker,
headphone and 3rd party GPS receiver*
Refer to the "INSTALLATION GUIDE" in details.
1
* Ask your dealer for available GPS receiver details.
e
e q
1
.
PANEL DESCRIPTION

I Main unit

• Top view
q
q Metal catch (For Icom products)
Use to attach to an installation rack for Icom products
(p. 26).
w Metal catch (For 3rd party products*)
Use to attach to an installation rack for 3rd party products*
(p. 26).
*Ask your dealer for available products details.
1
• Bottom view
w
