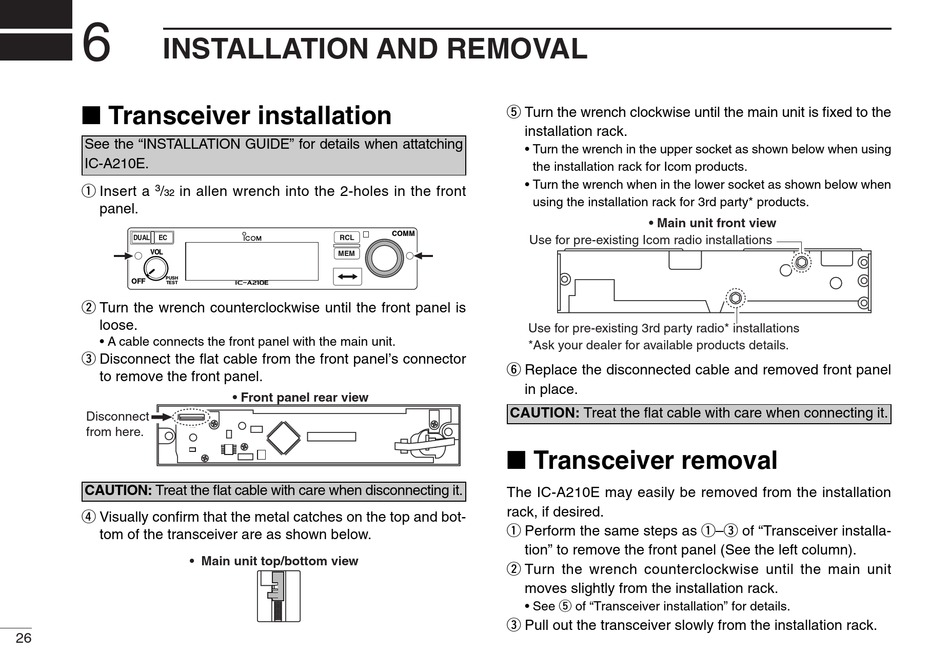

INSTALLATION AND REMOVAL

I Transceiver installation

See the "INSTALLATION GUIDE" for details when attatching
IC-A210E.
q Insert a 3
/ in allen wrench into the 2-holes in the front
32
panel.
DUAL EC
VOL
PUSH
OFF
TEST
w Turn the wrench counterclockwise until the front panel is
loose.
• A cable connects the front panel with the main unit.
e Disconnect the flat cable from the front panel's connector
to remove the front panel.
Disconnect
from here.
CAUTION: Treat the flat cable with care when disconnecting it.
r Visually confirm that the metal catches on the top and bot-
tom of the transceiver are as shown below.
• Main unit top/bottom view
26
COMM
RCL
MEM
iA210E
• Front panel rear view
t Turn the wrench clockwise until the main unit is fixed to the
installation rack.
• Turn the wrench in the upper socket as shown below when using
the installation rack for Icom products.
• Turn the wrench when in the lower socket as shown below when
using the installation rack for 3rd party* products.
• Main unit front view
Use for pre-existing Icom radio installations
Use for pre-existing 3rd party radio* installations
*Ask your dealer for available products details.
y Replace the disconnected cable and removed front panel
in place.
CAUTION: Treat the flat cable with care when connecting it.

I Transceiver removal

The IC-A210E may easily be removed from the installation
rack, if desired.
q Perform the same steps as q–e of "Transceiver installa-
tion" to remove the front panel (See the left column).
w Turn the wrench counterclockwise until the main unit
moves slightly from the installation rack.
• See t of "Transceiver installation" for details.
e Pull out the transceiver slowly from the installation rack.
