IMB205 LGA775 ATX Motherboard User's Manual

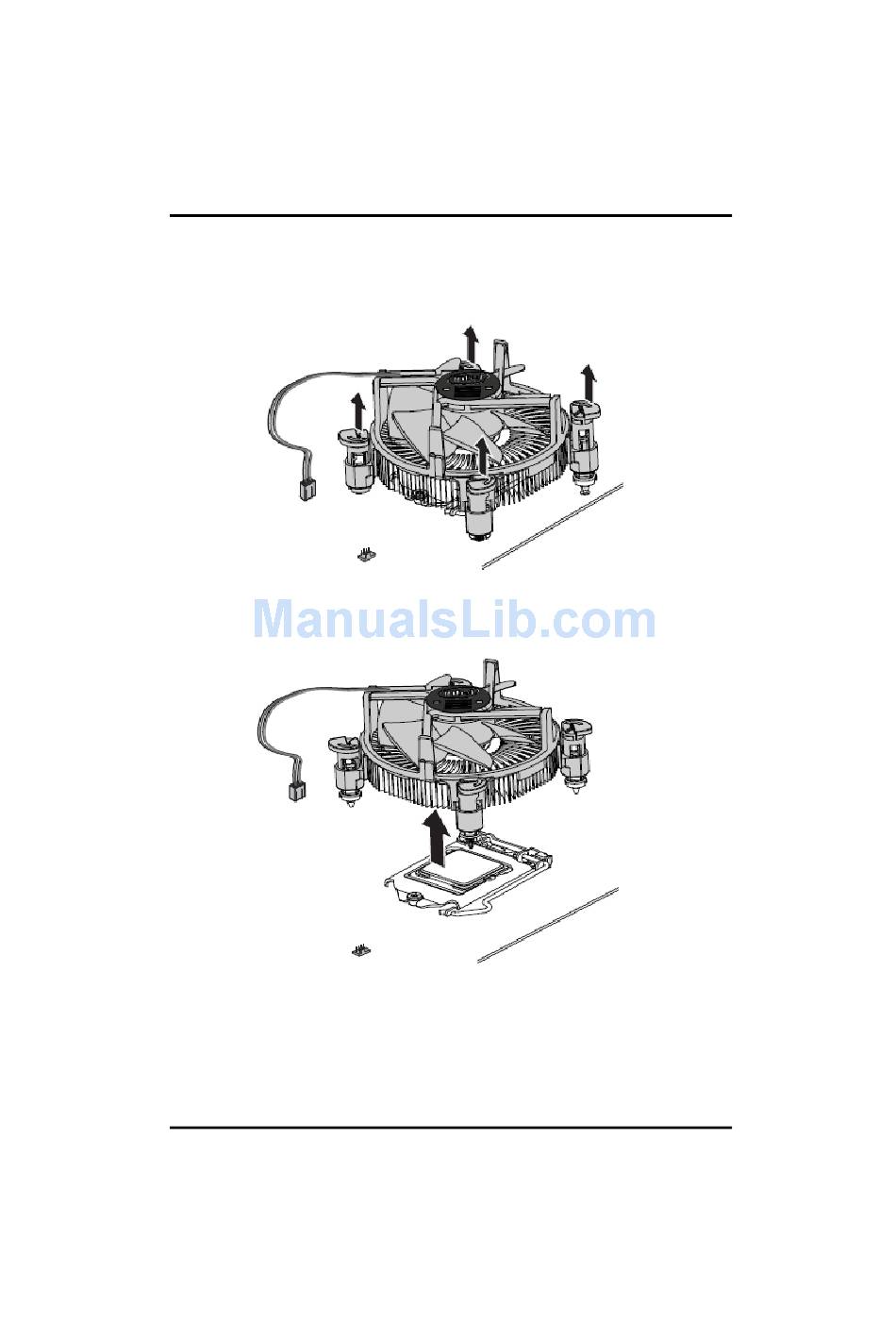

1. Pull up two fasteners at a time in a diagonal sequence to disengage

the heatsink and fan assembly from the motherboard.

2. Remove the heatsink and fan assembly from the motherboard.
