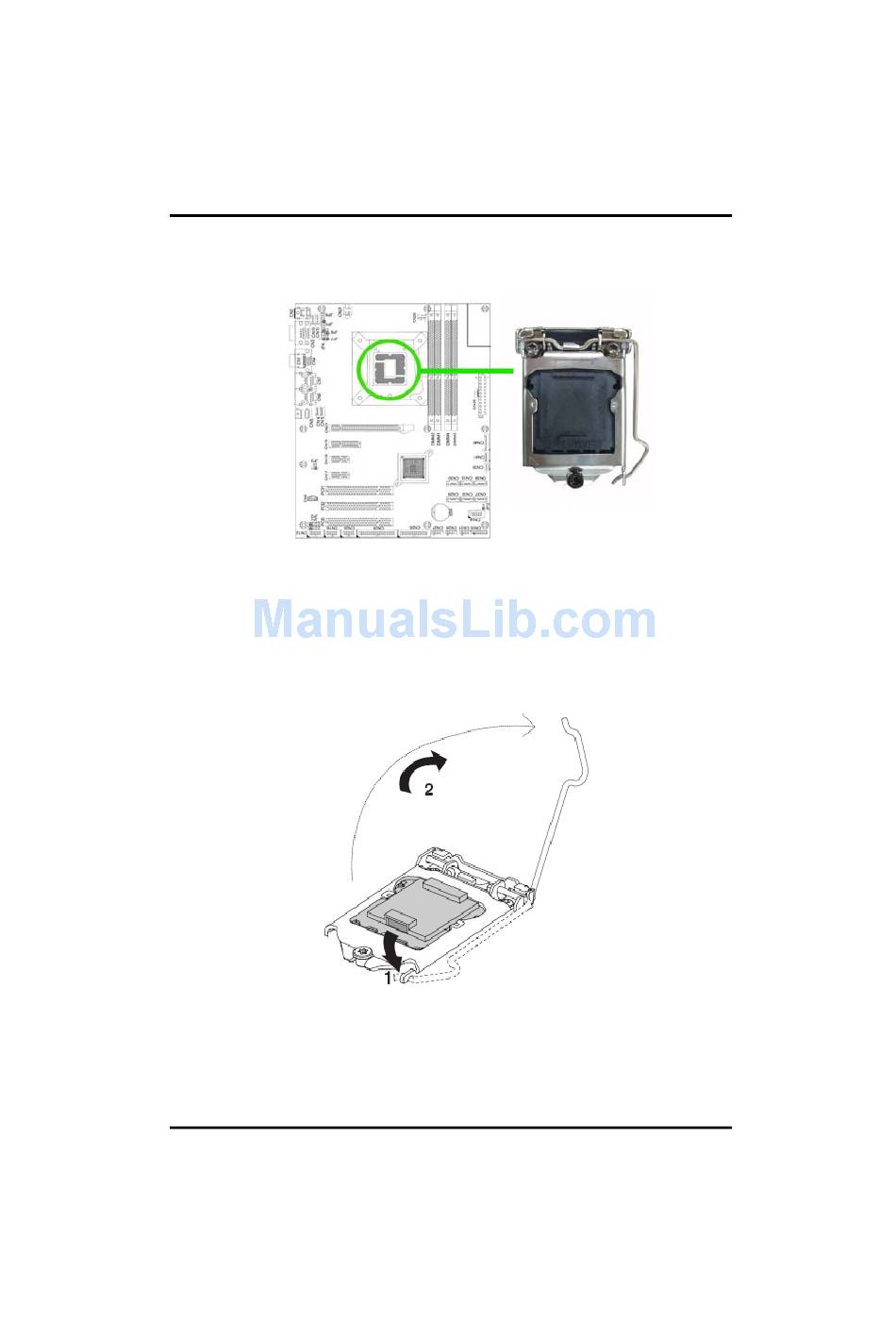

Locate the LGA1156 CPU socket on the motherboard.

Follow the steps below to correctly install the CPU into the motherboard

CPU socket.

1. Press the load lever of LGA1156 CPU socket with your thumb and

then move it sideways until it is released from the retention tab,

then lift the load lever up.
