In LINE-LOCK mode, it synchronizes the camera's video out signal to the
external SYNC signal.
•
INT: Internal synchronization.
•
LL*: External line-lock synchronization.
If you choose 'LL', you can adjust the desired phase.
You can adjust the desired phase from 0 to 359.

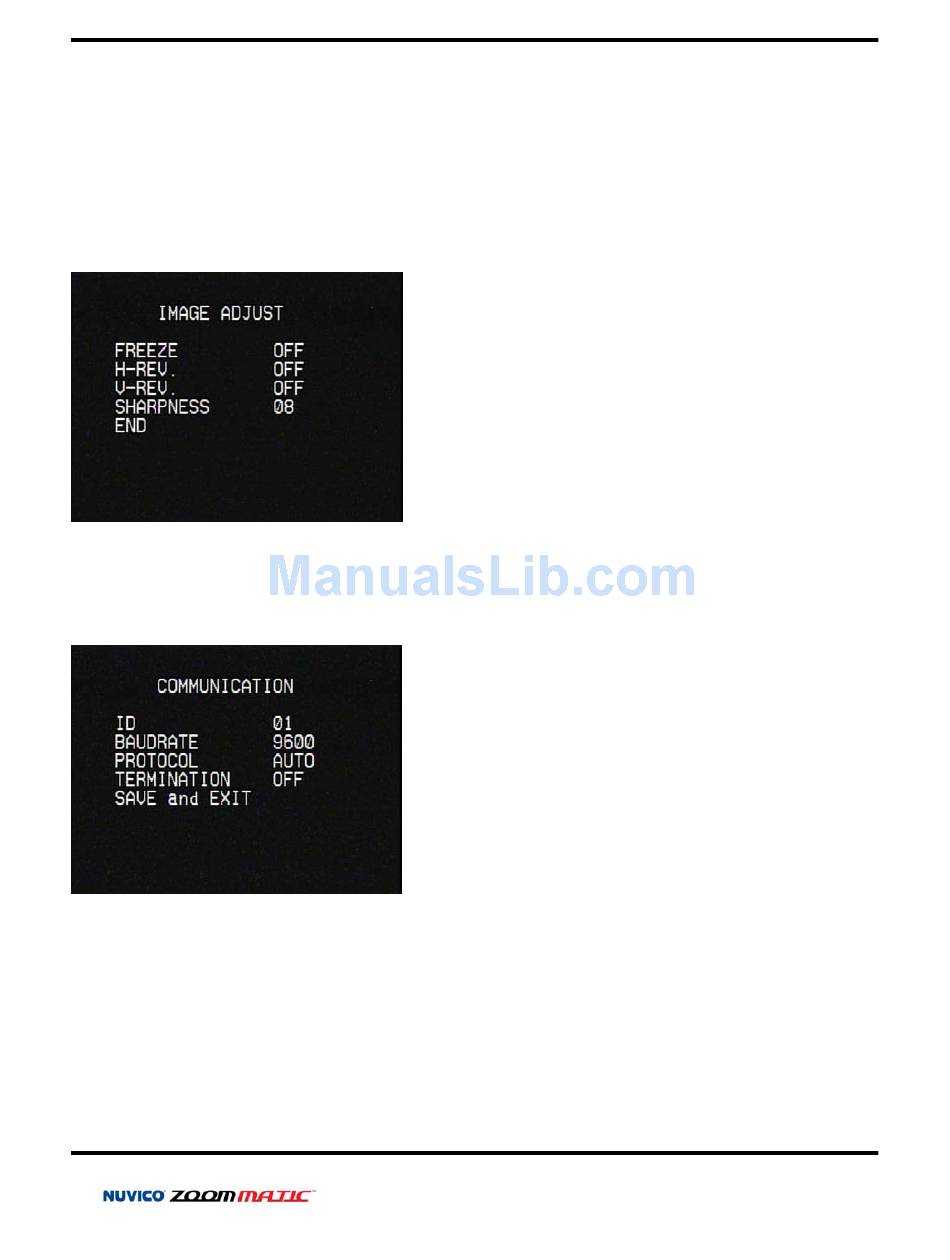

IMAGE ADJUST: Includes image quality or special function factors.
COMMUNICATION: Use this feature to select communication protocol. Position
the indicator over 'COMMUNICATION'.
FACTORY DEFAULT: To reset your camera to factory default condition.
FREEZE: Use this feature to freeze an
image.
H-REV: Use this feature to horizontally
inverse the screen.
V-REV: Use this feature to vertically
inverse the screen.
SHARPNESS: Increasing
sharpens object edges. Too high of a
setting, however,
may obscure the image.
ID: Assign ID number to the camera. It
is available to set an ID from 1 to 99.
BAUDRATE: Configure baud rate from 2400,
4800, 9600, 19200, 38400bps.
PROTOCOL: Assign protocol to the camera.
It is available to set at AUTO, NUVICO,
Pelco-D, and Pelco-P.
TERMINATION: Every device that is
connected at the end of the
communication data line must be
terminated.
24
this value
produces noise and
