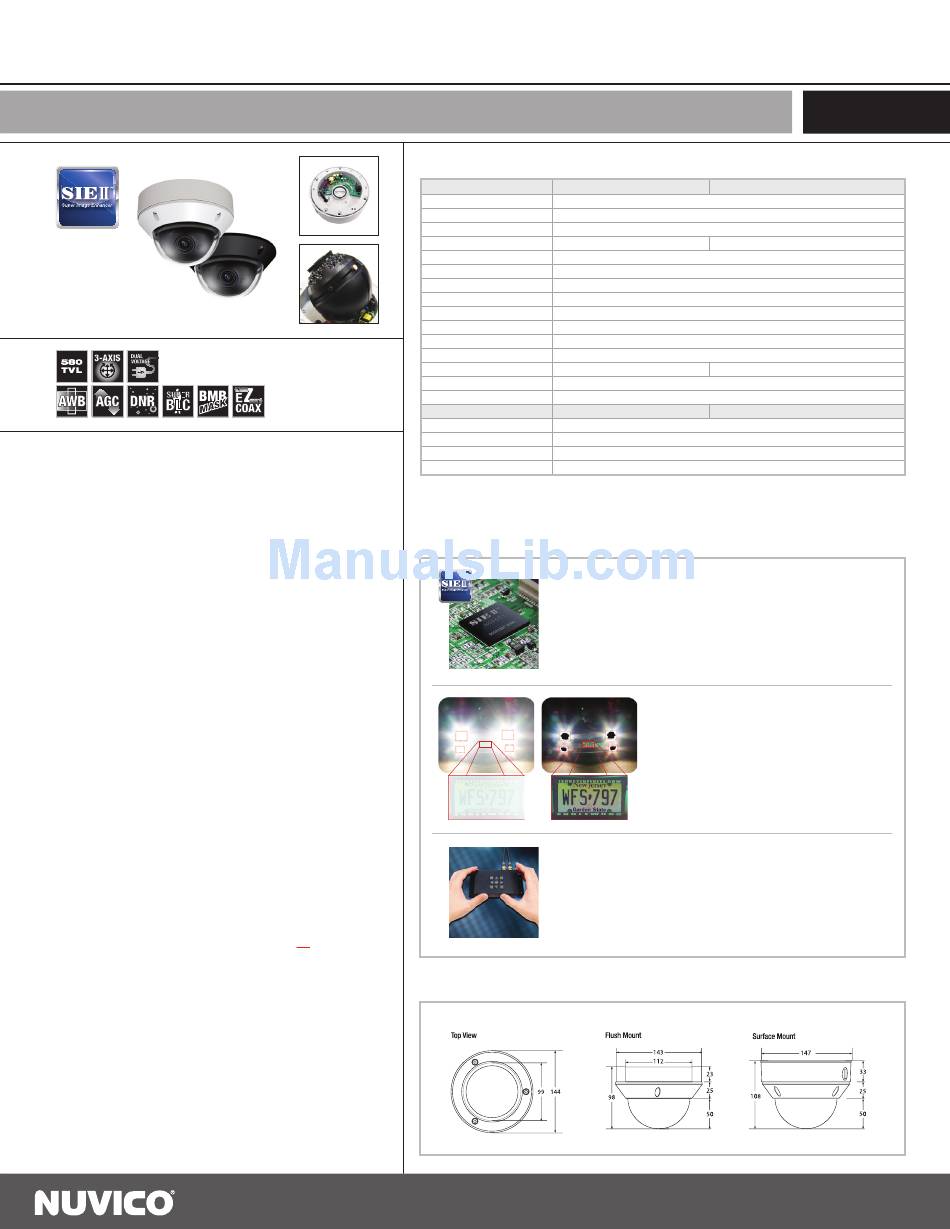

Nuvico CD-ST21N Specifications

EasyView 2 Series
™
SIE II, High Resolution 580 TV Lines, Indoor Dome Camera
CD-ST21N • CD-STD21N
KEY FEATURES
• 1/3" CCD Sensor
• 580 TV Lines
• 2.8~10mm, DC Auto Iris Lens
• Day/Night Functionality with ICR (CD-STD21N Only)
• EZ-Coax™: NUVICO Up-the-Coax Telemetry Control (Optional)
• Digital Noise Reduction: DNR
• Auto Tracking White Balance: AWB
• Brightlight Masking Block: BMB
• Separate Camera Control Board
- OSD Menu
- Service Monitor Output
• 12VDC/24VAC Dual Voltage
CONSTRUCTION
• 4" Polycarbonate Bubble
• 3-Axis Gimbal
• Flush Mount Housing w/ Surface Mount Plate in a Single Package
• Aluminum Mounting Accessories (Optional)
• Ivory or Black Plastic Housing (Optional)
• Compact Size
AVAILABLE MODELS
• CD-ST21N-I (Ivory) - High Resolution
• CD-ST21N-B (Black) - High Resolution
• CD-STD21N-I (Ivory) - True Day/Night w/ ICR
• CD-STD21N-B (Black) - True Day/Night w/ ICR
OPTIONAL: EZ-COAX™
• For all NUVICO cameras with EZ-Coax™ system,
add the following underlined extensions:
AVAILABLE ACCESSORIES
• CA-SMC30: Service Monitor Cable
• CV-WM: Indoor Wall Mount
• CA-OM: Outdoor Wall Mount
• CA-PM: Pedestal Mount
• CA-CMB: Corner Mount Bracket
• CA-PMB: Pole Mount Bracket
• CA-JB: Junction Box
• CA-JB2: Multipurpose Junction Box Enclosure
• EZ-CX1T: 1ch EZ-Coax™ Transceiver with built-in control buttons
• EZ-CX8T: 8ch EZ-Coax™ Transceiver (Requires CK-1000 for operation)
TECHNICAL SPECIFICATIONS
BENEFITS OF THE EASYVIEW™ 2 CAMERAS w/ EZ-COAX™
CD-00000-CX
DIMENSIONS
Corporate Headquarters | sales@nuvico.com • T 866.523.1700 • 201.541.1605 Corporate Headquarters | sales@nuvico.com • T 866.523.1700 • 201.541.1605
International Operations | export@nuvico.com International Operations | export@nuvico.com
Technical Specifications CD-ST21N
Video Format NTSC
Image Sensor 1/3" CCD
Horizontal Resolution 580 TV Lines
Day/Night Functionality No
Lens Type (DC Auto Iris) Vari-focal 2.8mm-10mm
Angle of View 131.6°(W) ~ 35.6°(T)
Sync System Internal
Effective Pixels 768(H) x 494(V)
Scanning System 525 Lines. 2:1 Interlaced
Electronic Shutter 1/60 ~ 1/100,000 sec.
Main Video Output 1.0 Vp-p Composite, 75 ohm
Service Monitor Output 1.0 Vp-p Composite, 75 ohm
Minimum Illumination 0.1 Lux (DSS Off), 0.001 Lux (On)
S/N Ratio More than 50dB (AGC Off)
Camera Control & Setup OSD Menu
General Information CD-ST21N
Operating Temperature 23ºF ~ 113ºF (-5ºC ~ +45ºC)
Operating Humidity Within 90% RH
Power Consumption 4W / 500mA
Input Voltage 12VDC/24VAC Dual Voltage
S.I.E. 2 - our second generation 'Super Image Enhancer' module enhances the
clarity and color accuracy of its predecessor by further refining our proprietary DSP
technology. This new unique video processing technology radically enhances the
low light performance of the EasyView™ 2 dome camera by utilizing super low
light features such as DSS, DNR, Super BLC, AWB, and BMB, delivering excellent
picture quality and higher resolution at 580 TV Lines.
EZ-Coax™ - NUVICO Up-the-Coax Telemetry Control
Usually found in high-end PTZ cameras, this hi-tech transmission method allows
access to the camera menu using only the coaxial cabling already running from
the camera. The EZ-Coax™ Transceiver can then be used to gain telemetry control
of the camera without running a separate communication line. This not only cuts
down on installation cost and time, also makes all future maintenance simple and
easy.
NTSC
CD-STD21N
Yes w/ ICR
0.01 Lux (DSS Off), 0.0001 Lux (On)
CD-STD21N
*specifications are subject to change without any prior notice.
BMB - Brightlight Masking Block
The EasyView™ 2 dome cameras incorporates many of
the traditional BLC (Back Light Compensation) modes,
but adds a new sophisticated form of BLC that literally
blocks out the excessively bright areas within a frame
and compensates the rest accordingly allowing for the
otherwise "would be" overexposed areas of the frame to
be viewable.
Customer Service | cs@nuvico.com Customer Service | cs@nuvico.com
Technical Support | techsupport@nuvico.com Technical Support | techsupport@nuvico.com
Unit: mm
