Page 3: Table Of Contents
TABLE OF CONTENTS CONTENT VERIFICATION ............4 DISCLAIMER..............5 WARNING AND CAUTION ............6 FCC COMPLIANCE STATEMENT ............6 CE COMPLIANCE STATEMENT .............7 IMPORTANT SAFEGUARDS ............7 INTRODUCTION..............8 FEATURES..............9 SPECIFICATION...............9 CV–Z10 3 AXIS GIMBAL ADJUSTMENTS ...........10 CI-Z10 & CI-Z30 3 AXIS BRACKET ADJUSTMENTS .........11 WIRING DIAGRAM: GENERAL OVERVIEW ...........12 WIRING DIAGRAM: CONNECTING TO THE CONTROLLER (NVCK-3X) ....14 WIRING DIAGRAM: CONNECTING TO THE DVR ........14 REMOTE CONTROLLER (SUPPLIED) ..........15... -
Page 4: Content Verification
CI-Z10 & 30–L: Integrated Camera Sunshield Remote Control Instruction Manual Mounting Hardware If any of these materials are missing, please contact the vendor or NUVICO customer service department immediately. Available Accessories CV–FH Fan & Heater for CV-Z10 CA–JB Junction Box CA–OM... -
Page 5: Disclaimer
• NUVICO reserves the right to change the specifications of the hardware and software described herein at any time without prior notice. •... -
Page 6: Warning And Caution
WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 7: Ce Compliance Statement
FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 8: Introduction
• Read these instructions. • Heed all warnings. • Follow all instructions. • Do not use this equipment near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •... -
Page 9: Features

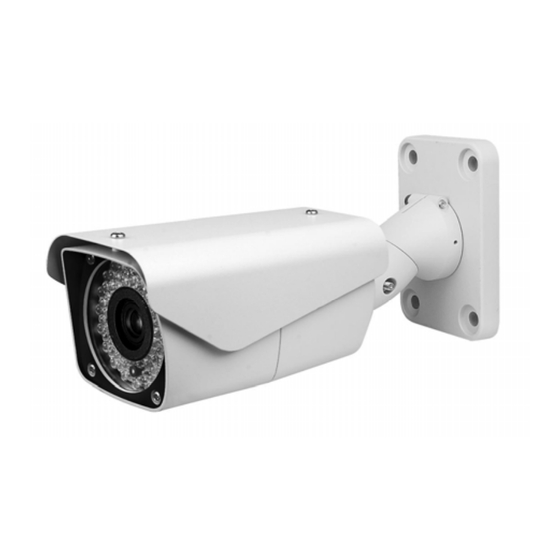

FEATURES The Zoommatic Cameras feature high resolution 1/4” Interline Transfer CCD Imager for enhanced lowlight sensitivity. User-friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. • Super Resolution – 550 TV Lines (Color), 600 TV Lines(B/W) •... -
Page 10: Cv-Z10 3 Axis Gimbal Adjustments
CV–Z10 3 AXIS GIMBAL ADJUSTMENTS... -
Page 11: Ci-Z10 & Ci-Z30 3 Axis Bracket Adjustments
CI-Z10 & CI-Z30 3 AXIS BRACKET ADJUSTMENTS... -
Page 12: Wiring Diagram: General Overview
WIRING DIAGRAM: GENERAL OVERVIEW... - Page 13 Use minimum of AC 24V / 40VA power source. • Connect the VIDEO-OUT jack to the VIDEO-INPUT of the device. • As the connecting method varies with the equipment, refer to the manual supplied with the equipment. • Always make sure that the camera’s power is off when connecting the cables. •...
-
Page 14: Wiring Diagram: Connecting To The Controller (Nvck-3X)
WIRING DIAGRAM: CONNECTING TO THE CONTROLLER (NVCK-3X) WIRING DIAGRAM: CONNECTING TO THE DVR... -
Page 15: Remote Controller (Supplied)
REMOTE CONTROLLER (SUPPLIED) 1. POWER • Power on/off. 2. NUMBERS • Numeric keypads (0~9), 3. CAM • Change camera ID. 4. SAVE • Saves preset position. 5. PRESET • Recall preset. 6. HOME • Recall Home function. 7. MENU • OSD menu on. 8. -
Page 16: Remote Controller Instructions
REMOTE CONTROLLER INSTRUCTIONS 1. POWER – Not used 2. NUMBERS – Use Numbers when changing the ID of the remote controller. They are also used to save or recall presets. 3. Camera Address (ID) - Use CAM button to change the ID of the remote controller when controlling multiple cameras. -
Page 17: Adjusting The Lens & Setup Menu
ADJUSTING THE LENS & SETUP MENU VIA IR REMOTE CONTROL Point the Remote Controller to the Camera to control the zoom. You can also use the remote controller to enter and make changes in the OSD Setup Menu. VIA CONTROLLER (NVCK-3X) Use the controller to adjust the zoom by twisting the joystick. -
Page 18: Menu Config Instructions
MENU CONFIG INSTRUCTIONS MENU CONFIGURATION NAVIGATING THE MENU 1. Press the MENU button to access the main setup mode. • Main setup menu is displayed on the monitor screen. 2. Select the desired feature. 3. Pressing up and down of the directional buttons on the remote control, DVR, or from the joystick moves the indicator to the desired feature. -
Page 19: Focus
FOCUS MODE: You can select the most suitable zoom mode. • AUTO: Focus is automatically adjusted with moving zoom. • ONE PUSH: Focus is automatically adjusted just once, after zoom position is set. • MANUAL: After the desired field of view is set, focus can be manually adjusted. -
Page 20: White Balance Control
WHITE BALANCE CONTROL MODE: The three white balance control modes are as follows: • OUTDOOR: This mode can be used within the color temperature range 1800~10500°K (Ex: fluorescent light, outdoor, sodium vapor lamp or inside tunnels) • INDOOR: This mode can be used within the color temperature range 3000K~10500°K. -
Page 21: Exposure
EXPOSURE BRIGHTNESS: Use this feature to adjust image brightness. Position the indicator over 'BRIGHTNESS'. Then increase or decrease brightness level using the left or right directional buttons while verifying the changes on screen. Select END once desired level is obtained. IRIS: Set 'IRIS' to 'AUTO' or 'MANUAL'. - Page 22 Position the indicator over 'SHUTTER'. Then select the desired shutter mode (1/60, MANUAL, A.FLK). • FLK. (NTSC: 1/100, PAL: 1/120): Flicker-free mode. • ESC (NOR): Automatic shutter speed setting (optimal). • 1/60(1/50): Fixed (1/60 or 1/50) shutter speed setting. AGC (Auto Gain Control): Amplifies video signal under low Lux environment to achieve brighter images.
-
Page 23: Special
SPECIAL BACKLIGHT: You can adjust the sensitivity of Backlight Compensation. Position the indicator over to 'BACKLIGHT'. Set 'BACKLIGHT’ to the desired mode. • HIGH • MIDDLE • • DAY/NIGHT: Select from COLOR, BW or AUTO modes. • COLOR: Color mode. •... - Page 24 ID from 1 to 99. BAUDRATE: Configure baud rate from 2400, 4800, 9600, 19200, 38400bps. PROTOCOL: Assign protocol to the camera. It is available to set at AUTO, NUVICO, Pelco-D, and Pelco-P. TERMINATION: Every device that is connected at the end of the communication data line must be terminated.
- Page 25 ACCESS CONTROL: Use this mode to limit access to the Remote Controller. REMOTE CONTROL: REMOTE CONTROL feature '‘ON'’, REMOTE CONTROL free operating mode. But, if it is set to “OFF”, it is REMOTE CONTROL for limited operating mode. PASSWORD CHECK: The PASSWORD CHECK feature is set to “ON”, pressing MENU to enter the main menu setup mode wi display the password confirmation...
-
Page 26: Display
DISPLAY CAMERA TITLE: Use this feature to designate a name for the camera, which will display on the monitor screen. EDIT TITLE: You can enter up to 15 characters. CAMERA ID: Use this feature to designate an ID for the camera, which will display on the monitor screen. -
Page 27: Function
FUNCTION HOME PRESET: The HOME function invokes predefined Preset function after the remote controller or the controller has been idle for programmed time. FUNCTION: Use this feature to designate preset number for the home. WAITING TIME: Use this feature to set the dwell time before it goes into Home Function. - Page 28 PRESET: Preset memorizes zoom, focus, iris and backlight, title settings. Once programmed, pressing combination of 1 ~8 numbers and a PRESET button on your remote control or the controller automatically calls up the preset position. Presets may be assigned to alarm or motion actions.
- Page 29 MOTION: This camera has a feature that allows you to observe movements of objects on the screen, and the words ‘ALARM : M’ appear on the screen when movement is detected. OPERATION: Use this feature to designate operation on/off for MOTION. OUTPUT: Use this feature to designate relay output mode for MOTION.
-
Page 30: Ir Radiator
IR RADIATOR Use this feature to adjust IR brightness. LINE-1 is the outer IR and LINE-2 is the inner IR. On the CI-Z30, there are LINE 1 ~ LINE 4. 0 means that IR is turned off and 9 is the at IR’s brightest mode. Increase or decrease IR level while verifying the changes on screen. - Page 31 NOTES...
- Page 32 NUVICO Tel: +7 495 234-3212 Fax: +7 495 234-3212 E-mail: techsupport@nuvico.ru www .nuvico.ru...
