Replacing Front/Rear Caster Assemblies

NOTE: For this procedure, refer to
FIGURE 11.5.
NOTE: Front and rear caster assemblies are
replaced in the same manner.
NOTE: When replacing the front/rear caster
assemblies, it is necessary to brace the caster
assemblies to prevent the wheel from spinning.
1. Remove the mounting screw, two
washers and locknut that secures the
caster to the fork.
2. Remove the caster and discard.
3. Secure new caster to fork with existing
mounting screw, two washers and
locknut. Securely tighten.

Adjusting Forks

NOTE: For this procedure, refer to FIGURE 11.6.
1. Remove the dust cover.
2. To properly tighten caster journal
system and guard against flutter,
perform the following check:
A. Tip back the wheelchair.
B. Pivot both forks and casters to top
of their arc simultaneously.
C. Let casters drop to bottom of arc
(wheels should swing once to one-
side, then immediately rest in a
straight downward position).
D. Adjust locknuts according to
freedom of caster swing.
3. Test wheelchair for maneuverability.
4. Readjust locknuts if necessary, and
repeat STEPS 1-3 until correct.
5. Snap dust cover into the caster
headtube ensuring that the tabs are
under the plastic side shrouds.
Part No 1122147
SECTION 11—SHROUD/WHEELS
Fork
Mounting
Screw
Washer
Caster

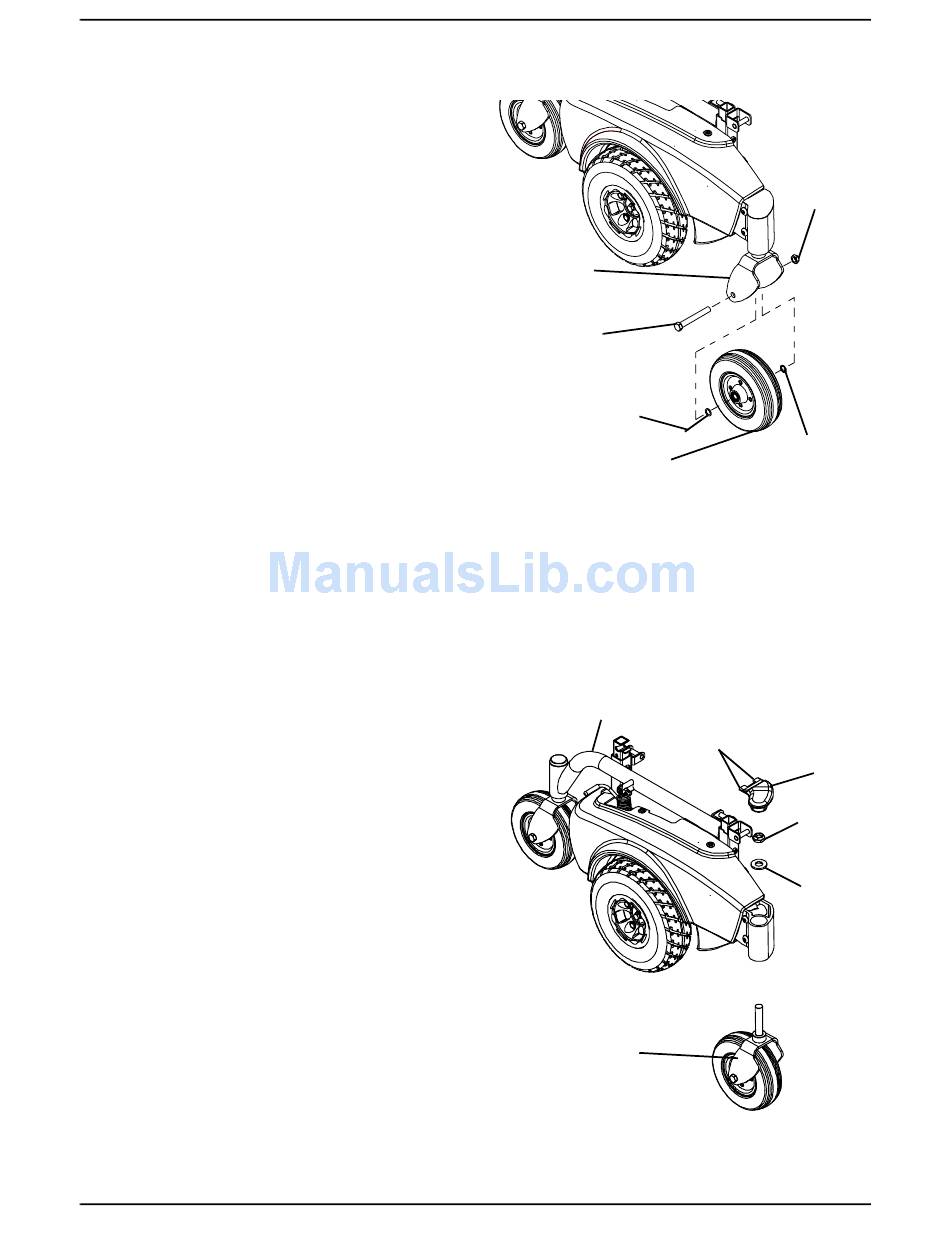

FIGURE 11.5 Replacing Front/Rear Caster
Assemblies
Base Frame
Fork
FIGURE 11.6 Adjusting Forks
71
Pronto
Locknut
Washer
Dust
Tabs
Cover
Locknut
Washer
® ™ ®
M71 Jr. with SureStep
