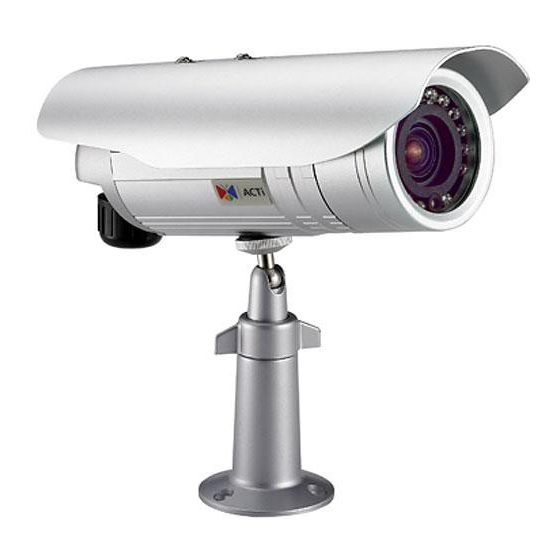

- Page 1 ACM-1432 Series IP IR D/N CCD Outdoor AC24V Bullet Camera Ver. 2010/5/11...
-
Page 2: Table Of Contents
ACM-1432 Series Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Installation Procedure ..............10 Remove the back cover by unscrewing the three attachments ..10 Remove the sunshade by unscrewing the two screws .... -
Page 3: Precautions
ACM-1432 Series Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
ACM-1432 Series Hardware User’s Manual 1. Introduction Package Contents ACM-1432 Series Power Adaptor (Optional) (No Bracket Included) Product CD Terminal Blocks for Power and Audio Warranty Card www.acti.com... -
Page 5: Features And Benefits
ACM-1432 Series Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (30 FPS @ D1, 720 x 480 NTSC 720 x 576 PAL) through a standard TCP/IP network. -
Page 6: Safety Instructions
ACM-1432 Series Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 7 ACM-1432 Series Hardware User’s Manual extensive work by a qualified technician to restore the video product to its normal operation. Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.
-
Page 8: Physical Description
ACM-1432 Series Hardware User’s Manual Physical description 1) Power Input Connect the power adaptor here if your power input is DC12V. NAME DESCRIPTION DC Power Input Ground Pin If your power input is AC24V. Please follow the description on the connector to connect to power. - Page 9 ACM-1432 Series Hardware User’s Manual 3) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button.
-
Page 10: Installation Procedure
ACM-1432 Series Hardware User’s Manual Installation Procedure Remove the back cover by unscrewing the three attachments Remove the sunshade by unscrewing the two screws www.acti.com... -
Page 11: Insert The Network Cable Through The Back Cover And Wire Gland
ACM-1432 Series Hardware User’s Manual Insert the network cable through the back cover and wire gland Assemble the gland / network cable with the back cover Attach to the brackets and connect the cables according to the physical description section... -
Page 12: Remove The Front Cap And Adjust The Focus / Zoom
ACM-1432 Series Hardware User’s Manual Remove the front cap and adjust the focus / zoom Restore the front cap, adjust the sunshade position on top of the camera and secure the back cover. www.acti.com... -
Page 13: Basic Connections
ACM-1432 Series Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 14: Product Specification
ACM-1432 Series Hardware User’s Manual Product Specification ACM-1431 ACM-1432 Device Sony Exview HAD CCD Size 1/3 inch Image 811(H) x 508(V) (NTSC) Effective Pixels 795(H) x 596(V) (PAL) Horizontal Resolution 540 TVL Color Color mode automatically switched to B/W mode under 4 Lux 0.05 Lux at F1.2 (30IRE,SAGC) -
Page 15: Accessing Camera
ACM-1432 Series Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself. - Page 16 ACM-1432 Series Hardware User’s Manual Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
- Page 17 ACM-1432 Series Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
- Page 18 ACM-1432 Series Hardware User’s Manual 10. Click “Apply” 11. Please go to Save & Reboot, and click ”Apply”. Internet Explorer will close after a few seconds. This is normal. www.acti.com...
- Page 19 ACM-1432 Series Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the default Video setting by going to Video Setting...
