ACTi ACM-1511 Series Hardware User Manual
Megapixel ip indoor ir bullet camera (with dc 12v / poe)
Hide thumbs
Also See for ACM-1511 Series:
- Quick installation manual (12 pages) ,
- Quick installation manual (14 pages)
Related Manuals for ACTi ACM-1511 Series
Summary of Contents for ACTi ACM-1511 Series

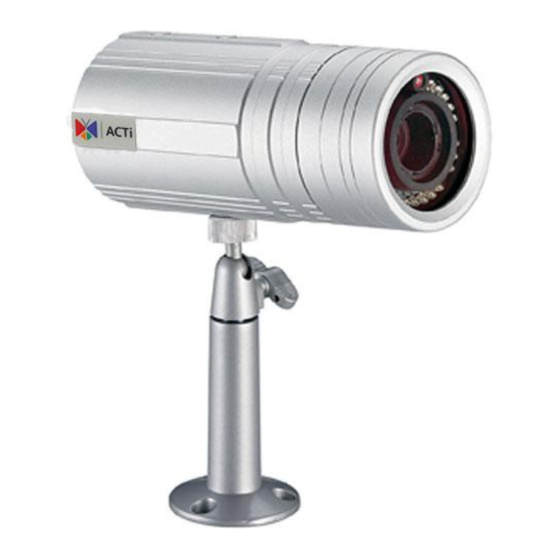

- Page 1 MegaPixel IP Indoor IR Bullet Camera (with DC 12V / PoE) ACM-1511 series Ver. 081016 Hardware User’s Manual...
-
Page 2: Trademarks
PRECAUTIONS Read these instructions All the safety and operating instructions should be read before the product is operated. Heed all warnings All warnings on the product and in the instruction manual should be adhered to. The symbol indicates the following items, please carefully read the description next to each symbol. - Page 3 and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
-
Page 4: Table Of Contents
Table of Contents PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Basic Connections _______________________________________________ 1-8 Installation Procedure ___________________________________________ 1-9 1.6.1 Install the camera onto bracket __________________________________________ 1-9 1.6.2... -
Page 5: Introduction
INTRODUCTION 1.1 Package Contents ACM-1511 series Power Adaptor (Option) (DC12V / PoE) Product CD Terminal Block for Power Warranty Card... -
Page 6: Features And Benefits
1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (SXGA, 1280x1024) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of MPEG4/MJPEG, and both formats offer megapixel resolution. - Page 7 program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder. Schedule recording and manual recording keep every important image recorded in the local hard disk. Reliable and accurate motion detection with instant warning makes you responsive in every condition.
-
Page 8: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 9 operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
-
Page 10: Physical Description
1.4 Physical Description Audio Input / Output The IP device supports audio input and output with earphone jack Power Input If your power input is DC12V , please follow the description on the connector to connect to power. NAME DESCRIPTION DC Power Input Ground Pin Ethernet Port... - Page 11 release the reset button. The unit will start up with factory default settings. Power LED Indicator The LED indicator lights up one time upon power up. It will lights up again when this IP device is fully booted up.
-
Page 12: Basic Connections
1.5 Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect the power adaptor to IP device 2. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your IP device has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 13: Installation Procedure
1.6 Installation Procedure 1.6.1 Install the camera onto bracket 1.6.2 Rotate camera box counter-clockwise to remove camera cover... -
Page 14: Adjust The Focus / Zoom
1.6.3 Adjust the focus / zoom - Zoom adjust lever - Focus adjust lever 1-10... -
Page 15: Product Specification
1.7 Product Specification 1-11...
