Page 1: Quick Installation Guide

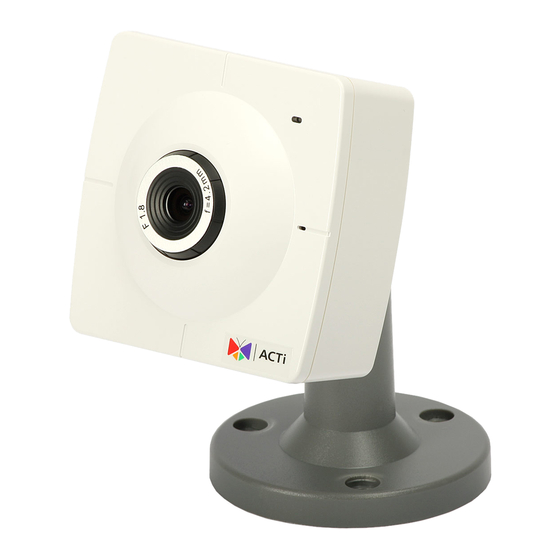

IP Indoor Cube Camera ACM-4100 series Ver. 080918 Quick Installation Guide... -
Page 3: Getting Started
Getting Started PACKAGE CONTENTS ACM-4100 series Power Adaptor (Option) Product CD Camera Stand Warranty Card... -
Page 4: Physical Description
PHYSICAL DESCRIPTION Action LED Indicator The LED will light up after IP camera has successfully completed the boot process Microphone Input Sensitivity: -44dB(0dB=1Vpp at 1KHz) S/N Ratio: More than 58dB Directivity: Omni directional... - Page 5 Power Input If your power input is DC3.3V. Reset Button Step 1: Switch off IP Indoor Cube Camera by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed around 6 seconds, release the reset button.
-
Page 6: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the IP Indoor Cube Camera to the respective apparatuses. 1. Connect the power adaptor to IP Indoor Cube Camera 2. Connect IP Indoor Cube Camera’s ethernet port to an Ethernet (RJ45 connectors). If your IP Indoor Cube Camera has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 7: Quick Tour
Quick Tour This section guides you with a quick tour on this IP Indoor Cube Camera. 2.1 Configure this IP Indoor Cube Camera 2.1.1 Make sure network environment Default IP of this IP Indoor Cube Camera is 192.168.0.100. Please make sure this IP Indoor Cube Camera and your PC are on the same network segment before running the installation. - Page 8 2.1.2 Open Internal Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP Indoor Cube Camera default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
- Page 9 2.1.4 Preview the video 2.1.5 Set the new IP address...
- Page 10 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this IP Indoor Cube Camera follows MII standard.
