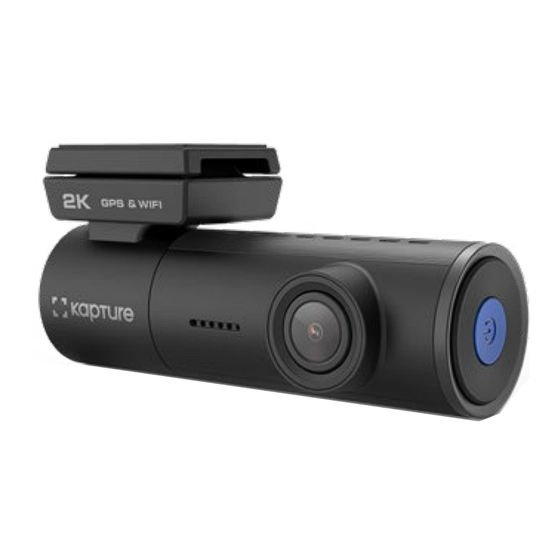

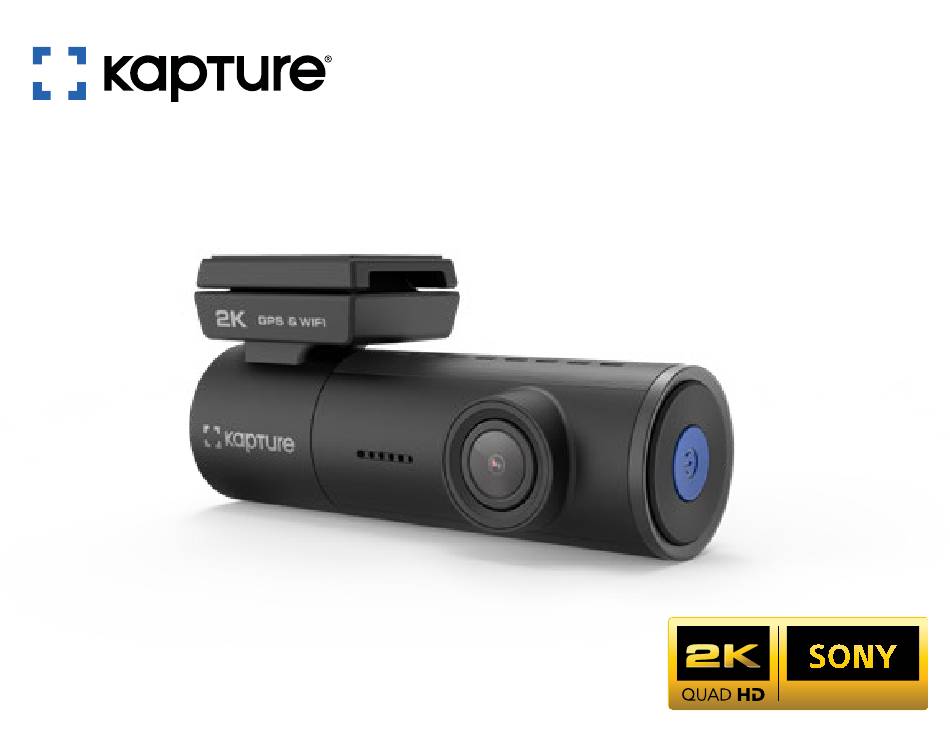

- Page 1 2K QHD Dash Camera With GPS Logger and WiFi KPT-2000 USER MANUAL 5MP SENSOR...
- Page 3 Formatting The Inserted Micro SD Card ..............4 PACKAGE CONTENTS ......................6 PRODUCT OVERVIEW ......................7 INSTALLATION INSTRUCTIONS ..................8 KPT-2000 installation ...................... 8 SOUND ALERTS ........................9 Real-Time Audio Road Safety Alerts* ................. 10 8.1.1 Speed Camera Alert ..................10 8.1.2...
- Page 4 10.0 DOWNLOADING AND INSTALLING THE KPT-LINK APP ..........12 11.0 KPT-LINK APP OPERATION ....................14 11.1 App Video Playback ......................14 11.2 Downloading videos from the App ................15 11.3 Sharing videos on Social Media..................15 11.4 KPT-LINK App Settings ....................16 12.0 WARRANTY TERMS & CONDITIONS ................18...
- Page 5 INTRODUCTION Thank you for purchasing a Kapture Dash Camera. We have designed this product so you can have a better driving experience with enhanced safety features. Our products, like most after-market safety enhanced devices, are designed to assist and aid the driver, not to replace the manual function of the person operating the vehicle.
- Page 6 CHARGING WARNING • Always charge the Dash Camera using the provided charger. Improper charging of the Dash Camera may cause it to stop working. • Do not dispose of the Dash Camera in a fire. • Please dispose of the Dash Camera within the limits of your local regulations. MICRO SD CARD WARNING This Dash Camera can only be used with Micro SD Cards, Class 10 or above with 32GB - 128 GB storage capacity, (not included).
- Page 7 The Dash Camera will format the Micro SD Card and will provide an audio notification to inform you that the Micro SD Card has been formatted. Alternatively, once the Micro SD Card is inserted into the Dash Camera and connected to power, please press the blue power button on the Dash Camera 3 times rapidly.
- Page 8 PACKAGE CONTENTS KPT-2000 Electrostatic 3M Adhesive Dash Camera x1 Film x2 Mount x1 12/24V Power Spare 3M User Guide x1 Adaptor x1 Adhesive x1...
- Page 9 PRODUCT OVERVIEW FRONT CAMERA Mini USB Connector (for power) Reset Button Micro SD Card Slot Adhesive Sticker Speaker Hole Camera Lens Recording Indicator LED 8. Power Button/WiFi ON and OFF/Lock file Microphone...
- Page 10 Remove the protective film from the KPT-2000 and position the Dash Camera in the middle of the electrostatic film (optional). Press down on the base of the...
- Page 11 This is included in the package contents. SOUND ALERTS The KPT-2000 will provide you with sound alerts to keep you updated with the status of your Dash Camera. Audio notifications will come through the in-built speaker of the Dash Camera as per below: •...
- Page 12 REAL-TIME AUDIO ROAD SAFETY ALERTS* Your Dash Camera comes with the added feature of providing real time road safety alerts. An audio warning will alert you of your actual live speed, speed limit (if applicable) and distance to the alert (eg. Speed Camera). These alerts can be individually managed or disabled from the Settings menu in the KPT-LINK App.
- Page 13 ^ Restoring to default settings will also change the WiFi password to default 12345678. In case you forget your WiFi's password, please reset to default settings. LED INDICATOR The colour of the KPT-2000 LED light helps to indicate the following functions. Constant red: Not recording Constant blue: Recording in normal mode Blue flashing: Recording an emergency event 4.
- Page 14 Samsung Galaxy: S3 and later using Android 4.2.2 and above. For you to correctly connect your smart device to your KPT-2000 you will need to have the KPT-LINK App from the Apple App Store or Google Play Store installed on your smartphone.
- Page 15 Camera is powered up, open your smartphone's WiFi settings and connect to the wireless connection named KPT2000. 4. When prompted enter the password 12345678 WiFi Name: KPT-2000 _XXXX (XXXX is unique number to each Dash Camera) Password: 12345678 Once the connection has been made, open the KPT-LINK App. You will now be able to access the live recording screen for the front and rear cameras, stored videos, and your Dash Camera settings.
- Page 16 11.0 KPT-LINK APP OPERATION To use the KPT-LINK App, your smart device will need to be connected to the Dash Camera WiFi connection. For instructions on connecting your Dash Camera to your smartphone's WiFi, please follow the steps on the previous page. 11.1 APP VIDEO PLAYBACK For Video Playback via the App, please follow the instructions below.
- Page 17 11.2 DOWNLOADING VIDEOS FROM THE APP To download your Dash Camera videos, please follow the instructions below. Open the KPT-LINK App. Press the Album button. Select the video/videos and press the 'Download' button. 4. The download will start and will save to your smartphone which can also be accessed through the KPT-LINK App in the folder name 'Local'.
- Page 18 11.4 KPT-LINK APP SETTINGS MENU SETTING DESCRIPTION Microphone ON, OFF Turns microphone ON/OFF Speed Alerts ON, OFF Turns speed camera alerts ON/OFF Loop 1 & 3 Minutes Loop recording allows you to set the duration that Recording the camera will record before creating a new clip Volume Off, Low, Mid, Controls the sound level of the inbuilt speaker...
- Page 19 KPT-LINK APP SETTINGS CONT' MENU SETTING DESCRIPTION Format SD Formats the Deletes all recorded data from the Micro SD card Card Micro SD Card. WiFi Settings Change the Dash Camera’s WiFi name and password from default Factory Restore factory settings Settings Help About DVR...
- Page 20 12.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Page 21 To the extent possible under governing law, other than the above product warranty for the Kapture product you understand and agree that the Kapture products and services are provided on an “as is” and “as available” basis. Kapture makes no warranty that the Kapture products and services will meet your requirements or that use of the Kapture products and services will be uninterrupted, timely, secure or error-free.
- Page 22 Kapture product or software. In the event of any loss, damage or injury, you will not look to Kapture to compensate you or anyone else. You release and waive for yourself and your insurer all subrogation and other rights to recover against Kapture arising as a result of the payment of any claim for loss, damage or injury.
- Page 23 Other than as permitted by law, Kapture does not exclude, limit or suspend other rights you have, including those that may arise from the nonconformity of a sales contract.
- Page 24 Kapture. Any liability for negligence is limited to direct losses usually and typically foreseeable in such case. Should the claim for damages...
- Page 26 V1.1 Y O U R E Y E W I T N E S S O N T H E R O A D ™ All Images, Information and Content are Copyright © 2023 Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.com.au www.directed.co.nz www.kapturecam.com.au...
