Outback SG-930 User Manual

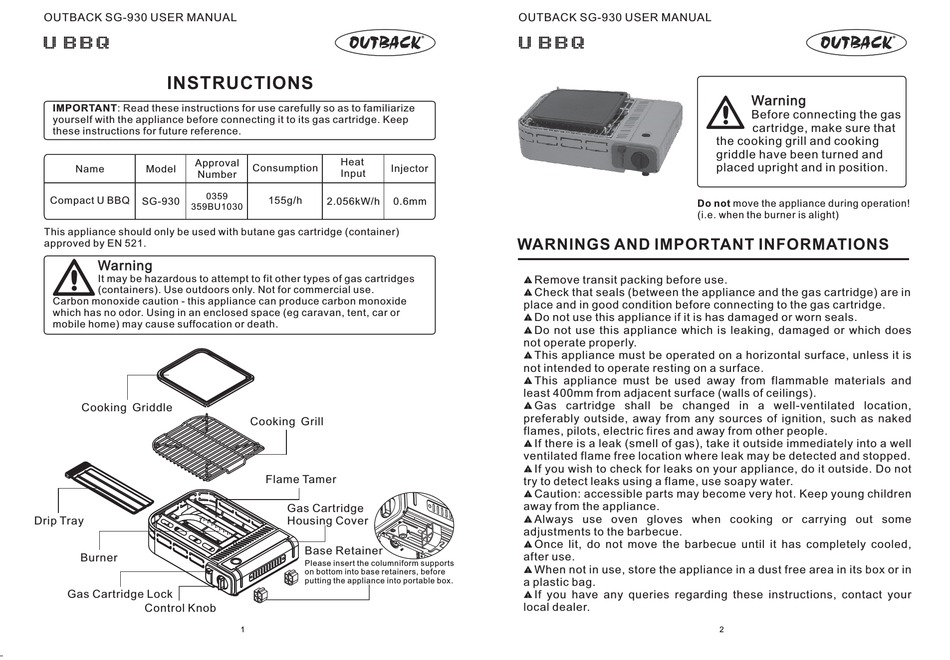

OUTBACK SG-930 USER MANUAL
INSTRUCTIONS
IMPORTANT: Read these instructions for
yourself with the appliance before connecting it to its gas cartridge. Keep
these instructions for future reference.
Approval
Name Model
Number
0359
Compact U BBQ
SG-930
359BU1030
This appliance should only be used with butane gas cartridge (container)
approved by EN 521.
Warning Warning
It may be hazardous to attempt to fit other types of gas cartridges
(containers). Use outdoors only.
Carbon monoxide caution - this appliance can produce carbon monoxide
which has no odor. Using in an enclosed space (eg caravan, tent, car or
mobile home) may cause suffocation or death.
Cooking Griddle
Drip Tray
Burner
Gas Cartridge Lock
Control Knob
use carefully so as to familiarize
Heat
Consumption
Injector
Input
155g/h
2.056kW/h 0.6mm
Not for commercial use.
Cooking Grill
Flame Tamer
Gas Cartridge
Housing Cover
Base Retainer
Please insert the columniform supports
on bottom into base retainers, before
putting the appliance into portable box.
1
OUTBACK SG-930 USER MANUAL
WARNINGS AND IMPORTANT INFORMATIONS
? Remove transit packing before use.
?
Check that seals (between the appliance and the gas cartridge) are in
place and in good condition before connecting to the gas cartridge.
?
Do not use this appliance if it is has damaged or worn seals.
?
Do not use this appliance which is leaking, damaged or which does
not operate properly.
? This appliance must be operated on a horizontal surface, unless it is
not intended to operate resting on a surface.
?
This appliance must be used away from flammable materials and
least 400mm from adjacent surface (walls of ceilings).
?
Gas cartridge shall be changed in a well-ventilated location,
preferably outside, away from any sources of ignition, such as naked
flames, pilots, electric fires and away from other people.
? If there is a leak (smell of gas), take it outside immediately into a well
ventilated flame free location where leak may be detected and stopped.
? If you wish to check for leaks on your appliance, do it outside. Do not
try to detect leaks using a flame, use soapy water.
?
Caution: accessible parts may become very hot. Keep young children
away from the appliance.
?
Always use oven gloves when cooking or carrying out some
adjustments to the barbecue.
? Once lit, do not move the barbecue until it has completely cooled,
after use.
? When not in use, store the appliance in a dust free area in its box or in
a plastic bag.
?
If you have any queries regarding these instructions, contact your
local dealer.
Warning Warning
Before connecting the gas
cartridge, make sure that
the cooking grill and cooking
griddle have been turned and
placed upright and in position.
Do not move the appliance during operation!
(i.e. when the burner is alight)
2
