Summary of Contents for AGAiT EClean EC03

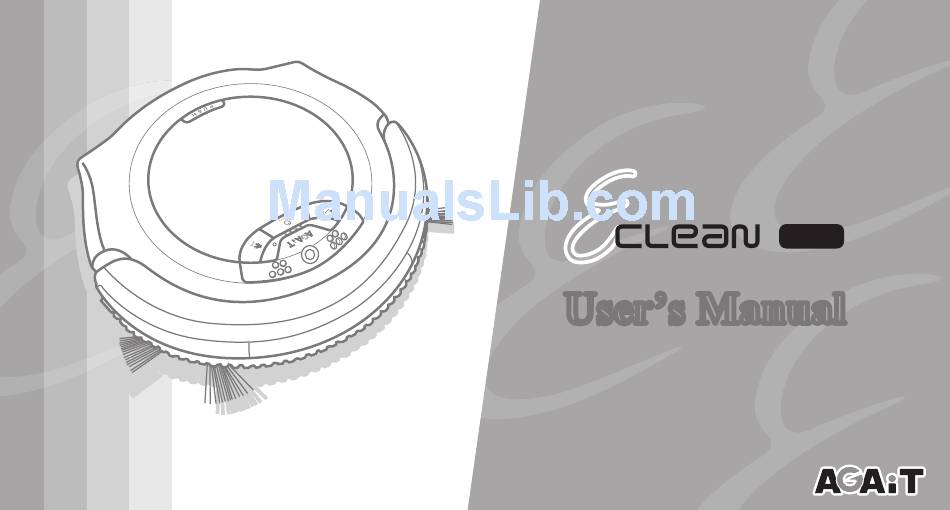

- Page 1 EC03 Robotic Vacuum Cleaner User’s Manual...
-
Page 2: Table Of Contents
EClean EC03 User’s Manual Contents Using the Remote Control ........11 Safety Instructions ..........4 Installing the Batteries ..............11 Safety Notice .................4 Using the Keypad ................. 11 Battery and Recharging Instructions ..........5 Starting Operation ................12 Notes on UV light................5 Stopping Operation...............12... - Page 3 EClean EC03 User’s Manual Operate the Device...............21 Viewing the Motion Detect Screenshot .........22 Viewing the Recorded Videos ............23 Specifications ............. 24 Appendix ............. 25 Maintenance .................25 Cleaning Brushes ..............25 Cleaning Dust Bin ..............26 Cleaning Intake Filter ...............26 Troubleshooting ................27 General ..................27 Error Indicators ................28...
-
Page 4: Safety Instructions
EClean EC03 User’s Manual Safety Instructions Please read the safety notice in the User’s Manual before operating EClean and keep this manual handy for your future reference. Observe the basic safety rules to prevent any occurrence of electric shock and personal injury. -
Page 5: Battery And Recharging Instructions
EClean EC03 User’s Manual Battery and Recharging Instructions Notes on UV light This device is equipped with Ultraviolet (UV) light to sanitize floor • Only use factory-installed battery and adapter surface while cleaning. (model:CWN20C20). • The battery is rechargeable. Please use the voltage and current •... -
Page 6: Introduction
Introduction Package Contents The package contains the following items. If any one of the items is Congratulations on purchases the EClean EC03 Robotic Vacuum missing, please contact our dealers. Cleaner. The device is equipped with a high sensitive wide-angle lens, and embedded the cloud intelligent remote management system that redefines your imagination of cleaning robot. -
Page 7: Product Overview
EClean EC03 User’s Manual Product Overview Omni wheel Control Panel Cliff sensor Side brush Side brush Bumper Roll brush Cliff sensor Cliff sensor POWER UV light Wheel Wheel Ethernet port micro-SD cover Intake filter Intake filter Memory card slot cover... -
Page 8: Control Panel
EClean EC03 User’s Manual Control Panel LED Indicators Icon Color Descriptions Blue (Solid) Camera is turned on. Camera LED indicators Blue (Flashing) Motion is detected. IR LED IR LED (Camera) Green (Solid) IR LED is activated. Red (Flashing) Low battery... -
Page 9: Getting Started
EClean EC03 User’s Manual Getting Started Installing the Side Brush Installing the Battery 1. Place EClean side down on a stable surface. 1. Push the PUSH button to open the plane cover. 2. Push the brushes directly onto the holders as shown in the illustration below. -
Page 10: Charging The Battery
EClean EC03 User’s Manual Charging the Battery Note: • When the scheduled cleaning time ends, EClean will also If the battery LED is flashing red, use either the recharging dock or automatically return to the recharging dock. adapter for recharging. Approximate charging time is 3 hours. -
Page 11: Installing The Memory Card
EClean EC03 User’s Manual Using the Remote Control Installing the Memory Card The installed memory card is used as a buffer storage before EClean Installing the Batteries uploads the recorded files to Asus Cloud server. 1. Open the memory card slot cover. -
Page 12: Starting Operation
EClean EC03 User’s Manual Starting Operation Button Description After the battery is fully charged, press the Power button to turn Power Turn the device on/off. EClean on. Then, press the Clean button to start cleaning. Home Locate the recharging dock and automatically return Press the Clean button repeatedly to select the desired cleaning its charging position. -
Page 13: Remote Operation
EClean EC03 User’s Manual Remote Operation Before enabling the remote operation via smartphones or tablet PC, do the following initial setup to obtain an IP address for your EClean. System Requirement • Windows OS: Microsoft Windows® XP or Windows® 7 •... -
Page 14: Wireless Connection Configuration
EClean EC03 User’s Manual Wireless Connection Configuration 10. Enter the login name and password. The default values are “admin”. 1. Click Setting tab, and select WIFI. 2. Click Scan. The available networks are listed. 11. Click Login. The main screen appears on the screen. -
Page 15: Email Settings
EClean EC03 User’s Manual Email Settings Password respectively. Note: Be sure that you have a Gmail account before proceeding with the By default, the Gmail server is “smtp.gmail.com”. email setup. 3. In Mail to Whom, enter the email address where the notification Note: email is to be sent. -
Page 16: User And Password Settings
EClean EC03 User’s Manual User and Password Settings 1. Click Setting tab, and select ASUSCLOUD account. The User Management page allows you to authorize users and set the access rights in using EClean Web Management. You can also configure the date and time settings. By default, User1 is set to administrator account. -
Page 17: Video Control And Quality Settings
EClean EC03 User’s Manual Video Control and Quality Settings Note: Only “Admin” has the access rights to configure the settings in The Video and Image page allows you to configure how you want EClean Web Management. the video to appear on the live view screen. 3. On Date and Time setting, set the correct date and time. Click the 1. -
Page 18: Cleaning Schedule Setup
EClean EC03 User’s Manual Note: 2. Click the time slot on the desired day(s). By default, each cleaning time allocates 1 hour of cleaning and 3 hours of battery charging. Click the pull-down menu icon( ) to select one of available field options. 3. At the specified time, EClean starts cleaning for an hour, then return to the recharging dock when it is complete. -
Page 19: Using Remoteclean Application
EClean EC03 User’s Manual Using RemoteClean Application With RemoteClean application, you can manage the cleaning task via Internet easily and monitor your home from anywhere at anytime. List of Supported Devices • Android: Android 4.0 or above • iOS: iOS 4.0 or above... - Page 20 EClean EC03 User’s Manual b. Managing EClean Profile 3. Launch RemoteClean application. 4. Tap Add. 1. Tap the profile that you want to edit. 2. Do one of following: • Operate EClean: Tap to operate EClean. 5. Enter EClean name and the IP address.
-
Page 21: Operate The Device
EClean EC03 User’s Manual Operate the Device There are two ways to remotely operate EClean. • RemoteClean Application • EClean Web Management Battery Status Click to the respective icon to manually control Signal Strength Return to the EClean movement. recharging dock. -
Page 22: Viewing The Motion Detect Screenshot
When the battery is charging, the system will automatically send email notifications once motion is detected. 3. To view the screenshot, tap the Attachment tab. 1. Launch Email application. 2. Open the email that was sent by AGAit Robot with a “Motion 4. Do the following: Alarm” title. -
Page 23: Viewing The Recorded Videos
EClean EC03 User’s Manual Viewing the Recorded Videos Once motion is detected, besides sending notification email with the captured screenshot, the system will also automatically record 1-minute video (approximately 2MB) and upload it directly to Asus WebStorage. 1. Launch RemoteClean application. -
Page 24: Specifications
EClean EC03 User’s Manual Specifications Item Specifications Item Specifications Operation Time 90 minutes AC adapter Output: 20Vdc, 1000mA max 1.5A,100 minutes for full charging Dust Bin Capacity 0.2 liter Input: 100~240V AC, 50/60Hz universal Suction Power >=140 mmAq Charging Input DC 20 Volt, 1.0A max 1.5A... -
Page 25: Appendix
EClean EC03 User’s Manual Appendix Maintenance Cleaning Brushes To clean the roll brush, do the following: To clean the side brushes, do the following: 1. Place EClean side down on a stable surface. 1. Place EClean side down on a stable surface. -
Page 26: Cleaning Dust Bin
EClean EC03 User’s Manual Cleaning Dust Bin Cleaning Intake Filter 1. Push the PUSH button to open the plane cover. 1. Place EClean side down on a stable surface. 2. Take out the dust bin from EClean. 2. Pull upward to remove the intake filter. -
Page 27: Troubleshooting
EClean EC03 User’s Manual Troubleshooting General Problem Cause of failure Solution Eclean won’t start charging after returning to • The recharging dock is not attached • Adjust the recharging dock position. the recharging dock. to the wall. • Check the battery LED and schedule LED •... -
Page 28: Error Indicators
EClean EC03 User’s Manual Problem Cause of failure Solution Cannot detect EClean after executing AGAiT_ • EClean is not fully starting up. • Wait until the camera LED turns on. Finder.exe. • Wi-Fi function is activated. • Disable Wi-Fi function. -
Page 29: Product Warranty
3. Consumables are not covered by this limited warranty (e.g. filter, roll brush, side brush and wheel set). 4. During the warranty period, parts or products may be repaired or replaced with repaired parts or products of similar functions. AGAiT will return the repaired product or a replacement with similar functions to customers. - Page 30 6. Any damage caused by unauthorized disassembling, modification of the specification or installing any unlicensed parts. Should you have any problems regarding the use of Eclean or accessories, please contact an AGAiT dealer or the shop where your Eclean was purchased.
-
Page 31: Customer Copy
* To protect your rights and benefits, please pay attention to the following: 1. Please keep the purchase voucher, such as the invoice, receipt etc. Without the purchase voucher, AGAiT will calculate the warranty period by adding three months from the manufacturing date of Eclean.
