3.3.1 Status displays

tk - boiler temperature

tAG - flue gas temperature

tür – front insulated door open

3.3.2 Display for closed insulated door

3.3.3 Display for open insulated door

3.3.4 Error displays

Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600
Current boiler temperature [°C]
Current flue gas temperature [°C]
Door switch open

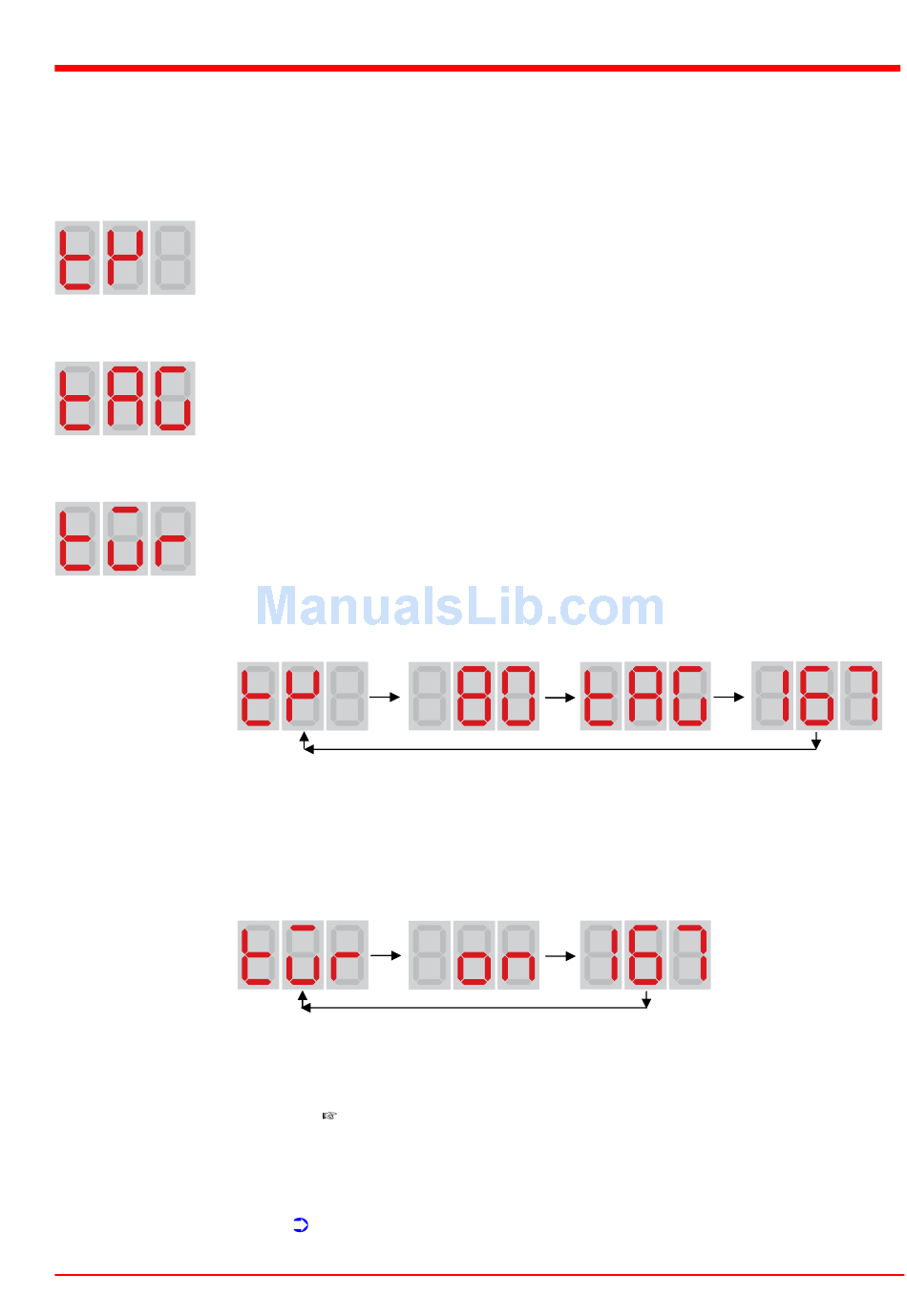

Boiler temperature and flue gas temperature are displayed alternately:
Boiler
temperature
Operating status of the induced draught fan (on/off) and flue gas
temperature are shown alternately:
Insulated door Induced draught
open
The induced draught fan can be switched on and off using the
induced draught button. If the insulated door is closed.
See " 5.3.1 Displays in case of errors"
info@froeling.com
e.g.: 80°C
temperature
fan on temperature e.g.:
www.froeling.com
Flue gas e.g.: 167°C
Flue gas
167°C
