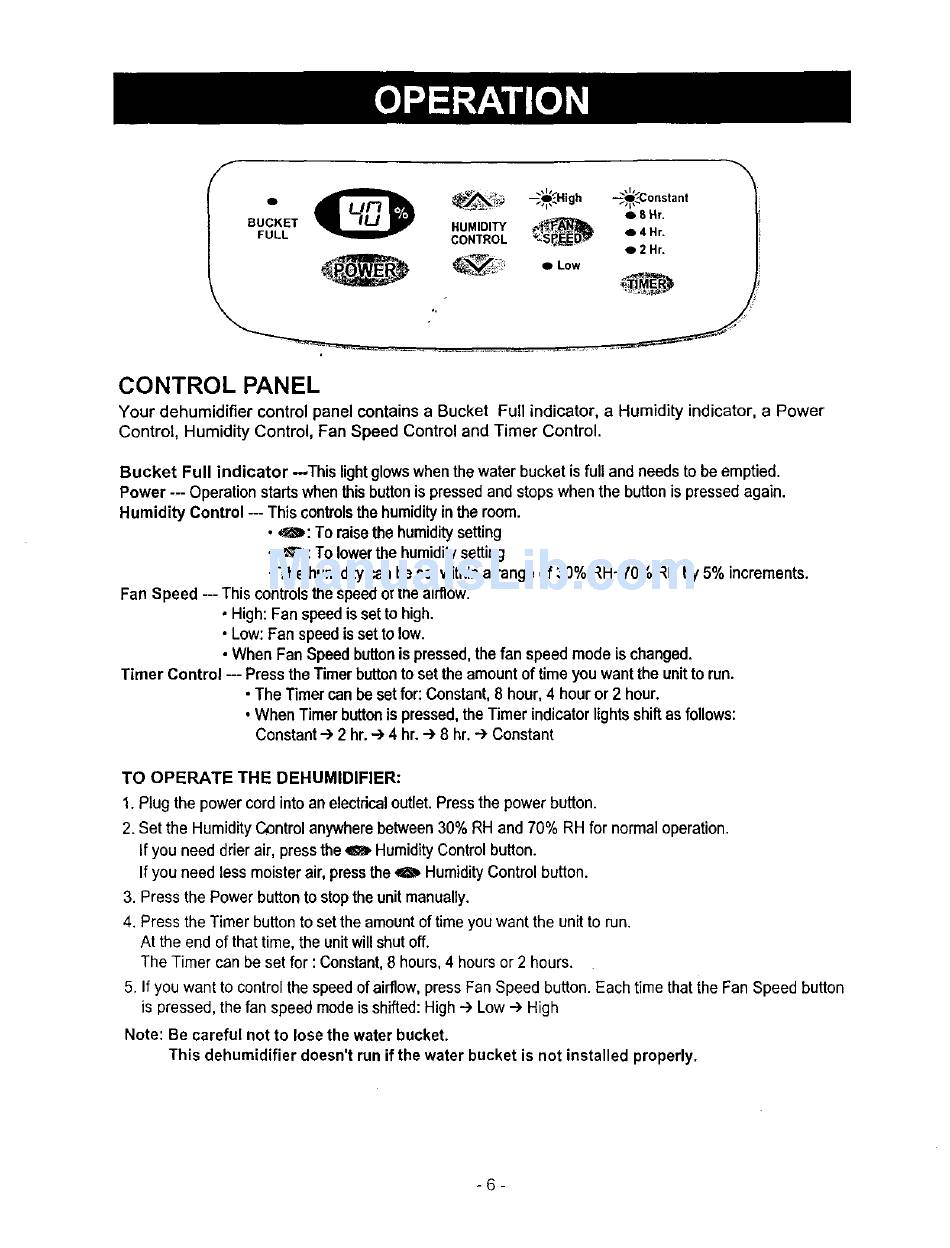

CONTROL PANEL
Your dehumidifier control panel contains a Bucket Full indicator, a Humidity indicator, a Power
Control, Humidity Control, Fan Speed Control and Timer Control.
Bucket Full indicator --This lightglowswhen the water bucket is full and needs to be emptied.
Power --- Operation startswhen this buttonis pressedand stops when the buttonis pressedagain.
Humidity Control -- This controls the humidityin the room.
• ,,_: To raise the humiditysetting
• _: To lowerthe humiditysetting
• The humiditycan be set withina range of 30% RH~70% RH by 5% increments.
Fan Speed --- This controlsthe speed of the airflow.
• High: Fan speed is set to high.
• Low: Fan speed is set to low.
• When Fan Speed buttonis pressed, the fan speed mode is changed.
Timer Control -- Press the Timer buttonto set the amount of time you want the unit to run.
• The Timer can be set for: Constant,8 hour, 4 hour or 2 hour.
• When Timer buttonis pressed,the Timer indicator lightsshiftas follows:
Constant --) 2 hr.--) 4 hr. --) 8 hr. --) Constant
TO OPERATE THE DEHUMIDIFIER:
1. Plug the power cord intoan electrical outlet.Press the power button.
2. Set the HumidityC_)ntrol anywherebetween 30% RH and 70% RH for normaloperation.
If you need drier air, pressthe O HumidityControl button.
If you need tess moister air, press the 4S_ HumidityControl button.
3. Press the Power button to stopthe unitmanually.
4. Press the Timer button to set the amountof time you want the unit to run.
At the end of that time, the unitwill shutoff.
The Timer can be set for : Constant,8 hours,4 hours or 2 hours.
5. If you want to controlthe speed ofairflow,press Fan Speed button. Each time thatthe Fan Speed button
is pressed, the fan speed modeis shifted:High .--)Low .--)High
Note: Be careful not to lose the water bucket.
This dehumidifier doesn't run if the water bucket is not installed properly.
-6-
