Owner's Manual
Manual del Propietario
®
DEHUMIDIFIER
DESHUMIDIFICADOR
Model, Modelo
580.52650
/
/
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
www.sears.com

Advertisement

Table of Contents
loading

  Related Manuals for Kenmore 580.52650

  Summary of Contents for Kenmore 580.52650

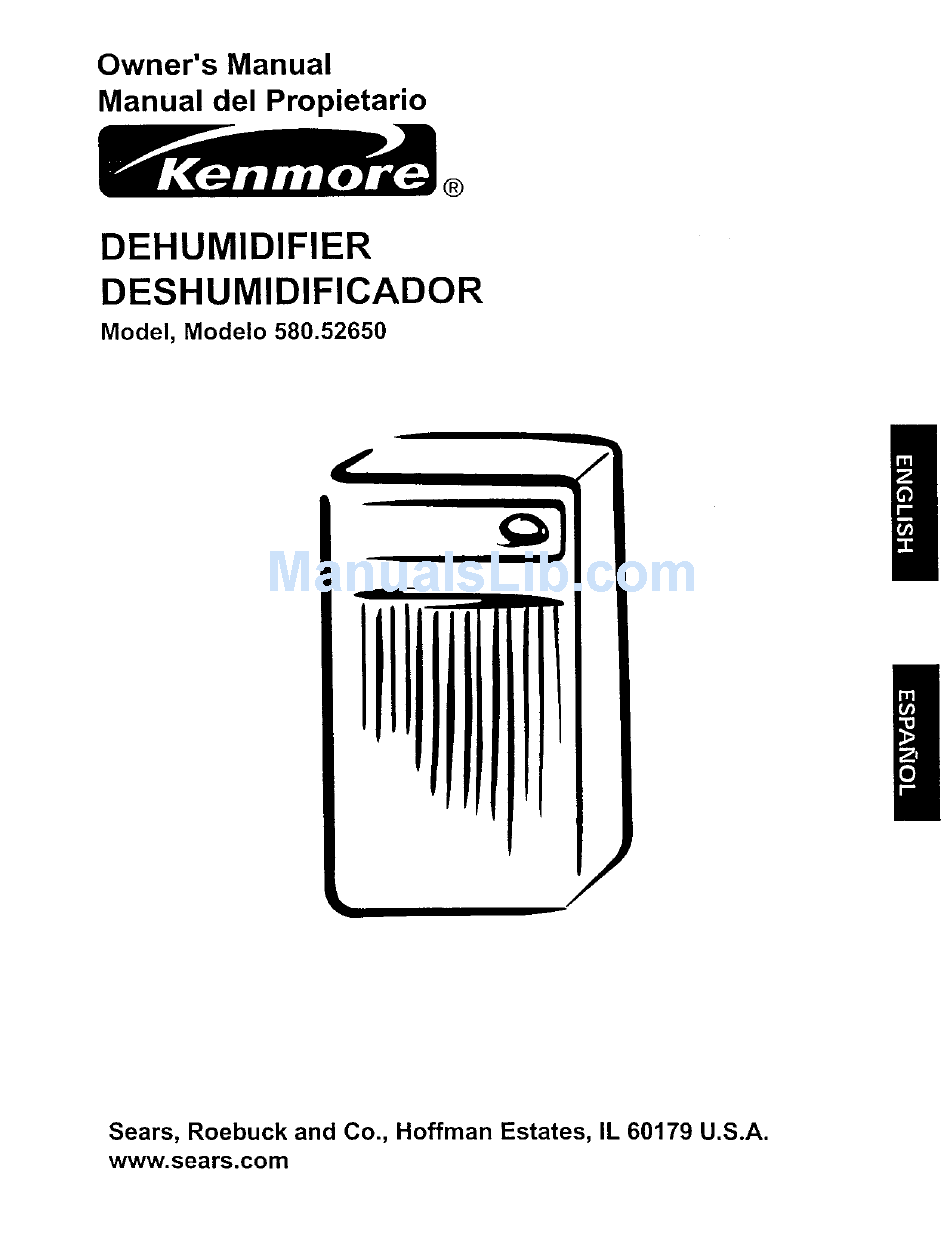

  • Page 1 Owner's Manual Manual del Propietario ® DEHUMIDIFIER DESHUMIDIFICADOR Model, Modelo 580.52650 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 2: Table Of Contents

    AUTOMATIC SHUT OFF ......TABLE OF CONTENTS ........ REMOVING AND EMPTYING WARRANTY ..........THE WATER BUCKET ........SAFETY ............MAINTENANCE ..........Important Safety Instructions ...... 3 Grille and case ......... ELECTRICAL REQUIREMENTS ....4 Air filter ............. OPERATION ..........Cleaning inside the unit ......Features ...........
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your dehumidifier to avoid harm to yourself or damage to your dehumidifier. ELECTRICAL INFORMATION FOR YOUR SAFETY The complete electrical rating of your new Do not store or use gasoline or other dehumidifier is stated on the serial plate.
  • Page 4: Electrical Requirements

    OBSERVE ALLLOCALCODES ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED THIS APPLIANCE. A 115-volt 60 Hz, AC only, 15A fused and Electrical Shock Hazard properly grounded electrical supply is required. Plug into a grounded 3 prong outlet. A time delay fuse or time delay circuit breaker Do not remove ground prong.
  • Page 5: Features

    FEATURES INING To reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY instructions section before operating this appliance. 1. CONTROL PANEL 2. GRILLE, FRONT 3. POWER CORD 4. CABINET 5. AIR FILTER 6. WATER BUCKET...
  • Page 6: Control Panel

    _o:_HLgh o8Hr. _,lq_'Con s ant HUMIDITY SpE;_ • 4 Hr. FULL CONTROL ..e2Hr. • CONTROL PANEL Your dehumidifier control panel contains a Bucket Full indicator, a Humidity indicator, a Power Control, Humidity Control, Fan Speed Control and Timer Control. Bucket Full indicator --This light glows when the water bucket is full and needs to be emptied.
  • Page 7: Installing Your Dehumidifier

    • Install the dehumidifier on a level floor strong enough to support the unit with a full bucket of water. • For best performance, allow at least 12-18 inches of air space on all sides of the unit for good air circulation. •...
  • Page 8: Shut Off

    When thebucket i sfull,orwhenthebucket i s notintheproper p osition, theBucket F ulllightturnson andtheunitautomatically shuts off. Also,when bucket i s outofposition, theunitwillbeep3times. Thebucketmustbereplaced in the properpositionforthe dehumidifier t owork.The lightwill beon and the dehumidifier will not run if the bucket is not in the proper position. The water bucket can be emptied in one of three ways: Place the dehumidifier Attach a garden hose to the...
  • Page 9: Grille And Case

    GRILLE AND CASE To clean the case: Use water and a mild detergent. Do not use bleach or an abrasive cleaner. To clean the grille: Use a vacuum with an attachment or brush. AIR FILTER The air filter is on the back of the dehumidifier. It should be checked and cleaned at least every 30 days or more often if necessary.
  • Page 10 "Problem Possible causes Dehumidifier • Make sure the dehumidifier plug is pushed The dehumidifier power does not start cord is unplugged completely into the outlet. The fuse is blown or circuit • Check the house fuse or circuit breaker box and replace the fuse or reset the breaker.
  • Page 11: Repair Parts

    Dehumidifier To order Parts call Toll Free Model No. 580.52650 1-800-4-MY-HOME®(1-800-469-4663) CAUTION: Use the Kenmore part number on all orders, no._tthe illustration number. OUTER CASE PARTS AND CONTROL PART 12-A 15-A DESCRIPTION PART NO DESCRIPTION POS.N0 PART NO P0S.N0 3041AD2007C...
  • Page 12 580.52650 CAUTION: When ordering parts, use the Kenmore part number not the position number. CYCLE PARTS POS. NO PART NO DESCRIPTION 4681A20034C MOTOR ASSY, SINGLE 5900AD2013A FAN ASSY, PROPELLER 4H02861A FAN, NUT CONDENSER ASSY 5403A20027D EVAPORATOR ASSY 5421A20046C -12-...
  • Page 13 580.52650 CAUTION: When ordering parts, use the Kenmore part number not the position number. COMPRESSOR PARTS 11-C ¢" 13-C 7-0 i 12-C 10-C POS. NO PART NO DESCRIPTION 4H00947A NUT, TERMINAL COVER 3550-CL001D TERMINAL COVER 4970U-L002A SPRING, O.L.P 6750U-L035A O.L.P...
