Kenmore 54351 - 35 Pint Dehumidifier Owner's Manual

Kenmore 54351 - 35 Pint Dehumidifier Owner's Manual

Owners manual
Hide thumbs
Table of Contents
Available languages

Available languages

Quick Links

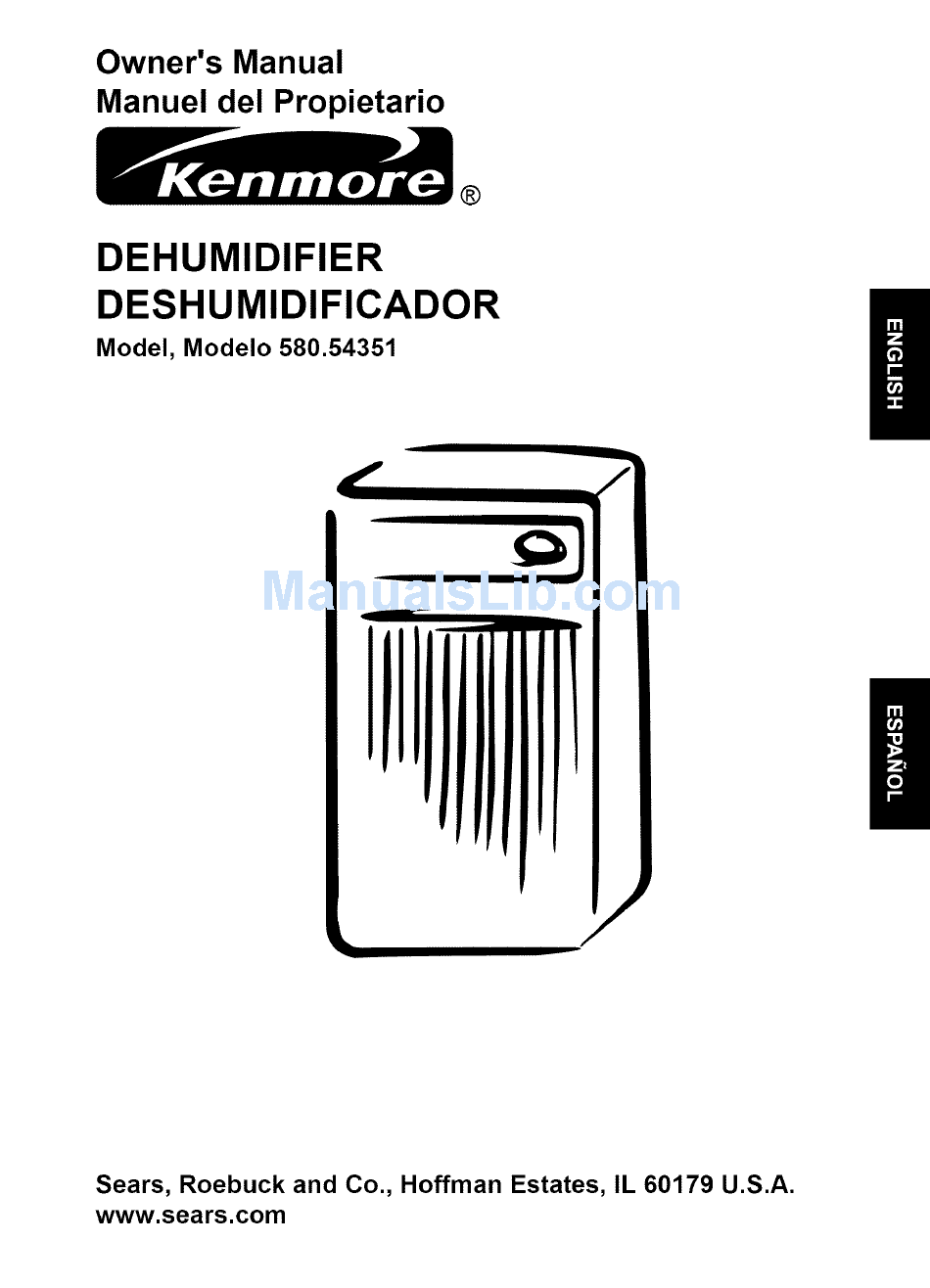

Owner's Manual
Manuel del Propietario
®
DEHUMIDIFIER
DESHUMIDIFICADOR
Model, Modelo 580.54351
J
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Table of Contents
loading

Frequently Asked Questions (12)

  • What causes the Kenmore 54351 dehumidifier to ice up?

    Frost may appear on the coils if the room temperature is below 65°F (18°C). This is normal, and the frost will usually disappear within 60 minutes.


    For more information, see pages 6 and 15 of the manual.
    Was this helpful?
  • Why is my Kenmore 54351 dehumidifier not turning on?

    Your dehumidifier may not start if:

    • The power cord is unplugged. Ensure the dehumidifier plug is pushed completely into the outlet.
    • The fuse is blown or circuit breaker is tripped. Check your house fuse or circuit breaker box and replace the fuse or reset the breaker.
    • The water bucket is full. The dehumidifier automatically turns off when the bucket is full. Empty the bucket.
    • The bucket is not installed properly. Make sure the bucket is in the right place.

    For more information, see page 15 of the manual.
    Was this helpful?
  • How do I operate the Kenmore 54351 dehumidifier?

    To operate your dehumidifier:

    1. Turn the Humidity Control to Off.
    2. Plug the power supply cord into an electrical outlet.
    3. Set the Humidity Control anywhere between Off and Max for normal operation. Turn it toward Max for more dehumidification and toward Off for less.
    4. To stop the unit manually, turn the Humidity Control to Off.
    5. To control the speed of airflow, turn the Fan Speed switch toward Low or High.

    For more information, see page 11 of the manual.
    Was this helpful?
  • Why is my Kenmore 54351 dehumidifier not collecting water?

    If your dehumidifier is not drying the air as it should, it may be because:

    • Not enough time was allowed to remove moisture. When first installed, allow at least 3 or 4 days to maintain the desired dryness.
    • Airflow is restricted. Make sure there are no curtains, blinds, or furniture blocking the front or back of the dehumidifier.
    • The Humidity Control may not be set high enough. Turn the humidity control knob closer to the Max position.
    • Doors and windows may not be closed tightly. Check that all doors, windows, and other openings are securely closed.
    • A clothes dryer may be blowing moisture-laden air into the room. Install the dehumidifier away from the dryer and ensure the dryer is vented to the outside.
    • The room temperature is too low. The unit will not operate satisfactorily if the room temperature is below 65°F (18°C).

    For more information, see page 15 of the manual.
    Was this helpful?
  • What size room is the Kenmore 54351 dehumidifier suitable for?

    The dehumidifier is not designed to dehumidify the entire house. You should make sure the dehumidifier is the correct size for the area you want to dehumidify. For best effectiveness, it must be operated in an enclosed area with all doors, windows, and other outside openings to the room closed.

    Was this helpful?
  • How often should I clean the filter on my Kenmore 54351 dehumidifier?

    You should clean the filter every two weeks.

    Was this helpful?
  • What are the recommended humidity settings for the Kenmore 54351 dehumidifier?

    The Humidity Control can be set anywhere between Off and Max for normal operation. To achieve more dehumidification, turn the Humidity Control toward Max. For less dehumidification, turn it toward Off.


    For more information, see page 11 of the manual.
    Was this helpful?
  • How often do I need to empty the water bucket of the Kenmore 54351 dehumidifier?

    You need to empty the water bucket when the bucket is full, which is indicated by the Auto shut-off light glowing. The dehumidifier will automatically turn off when the bucket is full. Pull out the bucket by grasping the handle, empty it into a large sink or tub, and then replace it properly.

    Was this helpful?
  • How do I perform general maintenance cleaning on my Kenmore 54351 dehumidifier?

    Before performing any maintenance, disconnect the power supply cord from the receptacle.

    To clean:

    • Front case, bucket, and cabinet: Clean with a soft cloth, warm water, and a mild detergent. Clean the grille with a vacuum attachment or brush. Do not use bleach or abrasives.
    • Air filter: Remove the water bucket, pull out the air filter, wash it with warm water and a mild detergent, rinse, and dry it before replacing it in the unit.
    • Coil: Remove the Front Grille, then use a small brush to gently clean the coils. If necessary, use warm water and a mild detergent, rinse, and dry thoroughly. Do not spray the coil with a water hose. Be careful of sharp edges.

    For more information, see page 14 of the manual.
    Was this helpful?
  • Can I use continuous drainage with the Kenmore 54351 dehumidifier?
    Yes, you can use continuous drainage. To do so, attach a length of garden hose to the threaded drain hose connector. First, remove the drain hole cover, then connect a garden hose to the threaded drain hose connector, and push the drain hose connector tightly into the drain hole on the Rear Grille. The drain hose connector accepts a standard garden hose fitting. Do not overtighten the hose; use a rubber washer and tighten firmly by hand without stripping the plastic threads. Ensure the hose lies flat from the dehumidifier to the drain and is not bent or kinked.
    For more information, see page 12 of the manual.
    Was this helpful?
  • What is the optimal operating temperature range for the Kenmore 54351 dehumidifier?

    The dehumidifier may not operate if the room temperature is below 65°F (18°C). Low temperatures could cause coils to frost, and the unit will not operate satisfactorily below this temperature.


    For more information, see pages 6 and 15 of the manual.
    Was this helpful?
  • What does the 'bucket full' indicator mean on the Kenmore 54351 dehumidifier?

    The 'bucket full' indicator, also known as the Auto shut-off light, glows when the bucket fills or is missing. The dehumidifier has a water level control switch and will turn off when the bucket is full or not replaced in the proper position. The dehumidifier will not run if the bucket is not in the proper position.

    Was this helpful?
Need help?

Need help?

Do you have a question about the 54351 - 35 Pint Dehumidifier and is the answer not in the manual?

Questions and answers

GERARD DIGNARD
January 23, 2025

i want to collect water only in the bucket and not go to hole outlet is there a special way to change it

0
1 comments:
Mr. Anderson
February 10, 2025

To set the Kenmore 54351 - 35 Pint Dehumidifier to collect water only in the bucket instead of the hose outlet, follow these steps:

1. Remove the drain hose if it is attached.
2. Ensure the drain hole cover is in place to block the hose outlet.
3. Make sure the water bucket is properly installed in its correct position.

The dehumidifier will then collect water in the bucket, and you will need to empty it manually when full.

This answer is automatically generated

0

Related Manuals for Kenmore 54351 - 35 Pint Dehumidifier

Summary of Contents for Kenmore 54351 - 35 Pint Dehumidifier

  • Page 1 Owner's Manual Manuel del Propietario ® DEHUMIDIFIER DESHUMIDIFICADOR Model, Modelo 580.54351 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 2 Installation ..........13 Safety Precautions ........3 Maintenance ..........14 Prior to Operation ........7 Instruction ........... 8 ESPANOL ........... 16 MASTER PROTECTION AGREEMENTS ..31 Electrical Safety .......... 9 SERVICE NUMBERS ....Back cover Operating Instructions ......11 Inside you will find many helpful hints on how to use and maintain your dehumidifier properly.
  • Page 3 Safety Precautions READ ALL INSTRUCTION BEFORE USING • To prevent injury to the user or other people and property damage,the following instructionsmust be followed. • Incorrectoperationdue to ignoring instructionswill cause harmor damage; the seriousnessis classified by the following indications. ! ,_, CAUTION This symbol indicatesthe possibilityof injury or damageto property only.
  • Page 4 Safety Precautions • It may cause electric shock or fire. • It may cause electricshock or fire. • Not grounding unit may cause electric shock. • Unpluggingthe unit may avoid • It may cause fire and electric • It may cause electric shock. electricshock or fire hazard.
  • Page 5 Safety Precautions CAUTION • Installation • It maycausefailureof applianceor • Otherwise,it may cause electric • Turning off the unit will save on performance deterioration. shockand damage. energy costs. • The dehumidifier must be • For proper operation,your • It is not designed to dehumidify dehumidifiershould be installed the entire house.
  • Page 6 Safety Precautions • Operation • The appearanceof the • Otherwise,it will cause property • Low temperatures could cause coils to frost. dehumidifiermay deteriorate, damage. change color, or developsurface flaws. • This could injure the pet or plant. • It is not sanitaryand couldcause •...
  • Page 7 Prior to Operation PREPARING FOR OPERATION 1. Plug the power cord in properly to a standard 3-slot grounding wall power outlet. 2. Do not plug any other appliance into the same wall receptacle as this unit. 3. Do not use an extension cord. 4.
  • Page 8 Instruction SYMBOLS USED IN THIS MANUAL This symbol alerts you to the risk of electric shock. This symbol alerts you to the possibility of personal injury property damage. FEATURES wiring regulations. This guide acts as a guide to help to explain product ARNING: This appliance...
  • Page 9 Electrical S afety WARNING: This appliance must be properly grounded. The power cord of this appliance is equipped with a three-prong grounding plug. To minimize the risk of electric shock, use the plug with a standard three-slot grounding wall power outlet. If the power outlet does not include a grounding slot, have a qualified electrician replace the outlet before you use the dehumidifier.
  • Page 10 Electrical S afety TEMPORARY USE OF AN ADAPTER We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a UL-listed adapter, available from most local hardware stores. To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal.
  • Page 11 Operating Instructions ¸_i_i!_ii!_!!i!!_i!_iiii!ii!_! I_i;_,i_:i_!_i_i_!_i 'i' i!ili!i ! CONTROL PANEL Your dehumidifierhas a control panel containingan Auto shut-off indicator,a Fan Speed and Humidity Control. Auto shut off--- This light glows when the bucket fills or is missing. Fanspeed --- This switch controlsthe speed of the airflow. HumidityControl---This knob controlsthe moisturein the room.
  • Page 12 Operating Instructions AUTOMATIC SHUT OFF The dehumidifier has a water level control switch and will turn the unit off when the bucket is full, or when the bucket is removed or not replaced in the proper position. The bucket must be replaced in the proper position for the dehumidifier to work.
  • Page 13 Installation CHOOSING THE PROPER LOCATION FOR YOUR DEHUMIDIFIER • Use the dehumidifier in a • Use the dehumidifierin laundry • Use the dehumidifierto prevent basementto help prevent drying, bathing, and dishwashing moisturedamage where books areaswhich have excessive are stored. moisturedamage. moisture.
  • Page 14 Maintenance Your dehumidifieris designedto serve you year- round. It needs practicallyno attention. However, you shouldcheck your dehumidifierand inspectthe ElectricalShock Hazard coils annually. You may want Sears Parts & RepairCenter to • Disconnectpower supply cord from receptacle beforeperformingany maintenance. perform this annual checkup. (Cost of the inspection is the owner's responsibility.) •...
  • Page 15 Maintenance TROUBLESHOOTING The dehumidifier may be operating abnormally when: Dehumidifier • Make sure the dehumidifier plug is pushed does not start completely into the outlet. • Check the house fuse or circuit breaker box and replace the fuse or reset the breaker. •...
  • Page 16 Instalacion ..........27 Precauciones de seguridad ..... 17 Antes de la utilizacion ......21 Mantenimiento ........... 28 ACUERDOS DE PROTECClON Instruccion ..........22 ESPECIALIZADA ........31 Seguridad electrica ........23 PARA PEDIR SERVICIO ..Cubierta Trasera Instrucciones de funcionamiento .... 25 En su interior encontrara muchos...
  • Page 17 Precauciones de seguridad LEA ESTAS INSTRUCCIONES ANTES DE USAR • Para evitar lesiones al usuarioo a otras personas y da_os materiales,debe seguir las siguientes(nstrucciones. • El uso (ncorrectoocasionado al (gnorar(as(nstruccionespuede causar lesiones o daSos.La gravedadse dasifica mediante las siguientesindicaciones. • A continuaci6nse muestranlos significadosde los simbolos utUizados en este manual. •...
  • Page 18 Precauciones de seguridad • Causarauna descarga electricao • Causara una descarga electricao • Si no hay toma de tierra, podria incendio. incendio. producirse una descarga electrica. • Desenchufar l a unidadpuedeevitar • Podria producirseuna descarga • Puedecausar una descarga electricao incendio. electrica o incendio.
  • Page 19 Precauciones de seguridad (_Ib ATENClON • Instalacibn • Puede causarfallas de aplicaci6n • De Io contrario,podria ocurrir una • Apagar la unidad ahorrara gasto o deterioro en su rendimiento. descargaelectricay daSos. en energia. i ¸ ! • No esta dise_adopara enfriarla •...
  • Page 20 Precauciones de seguridad • Funcionamiento • De Io contrario,se causaran • Podria deteriorarseel aspectodel • Las bajas temperaturaspodrian deshumidificador,cambiarel danos a la propiedad. producirescarchaen los color o producirse desperfectos serpentines. en su superficie. • Porterla unidad en marcha sin • Esto podria lesionaral animal o •...
  • Page 21 Antesde la utilizaci6n Preparacibn para la utilizacibn 1. Enchufe el cable de alimentaci6n adecuadamente a una toma de pared estandar con tres clavijas y toma a tierra. 2. No enchufe ningun otro electrodomestico en el mismo receptaculo que esta unidad. 3.
  • Page 22 Instrucci6n SiMBOLOS UTILIZADOS EN ESTE MANUAL Este simbolo le avisa del riesgo de descarga electrica. Este simbolo le alerta de la posibilidad de lesiones personales da_os a la propiedad. Caracteristicas nacional para instalaciones electricas. Este manual sirve como guia para DVERTENCIA: este aparato debe instalarse de acuerdo...
  • Page 23 Seguridad e/_ctrica ADVERTENCIA: este aparato debe conectarse a tierra adecuadamente. El cable de alimentaci6n de este aparato esta equipado con una clavija de tres patillas con toma de tierra. Para minimizar el riesgo de descarga el6ctrica, utilice la clavija con un enchufe con toma de tierra estandar de tres ranuras. Si el enchufe no dispone de una ranura de toma de tierra, p6ngase en contacto con un electricista cualificado para que cambie el enchufe antes de utilizar el deshumidificador.
  • Page 24 Seguridad el#ctrica USO TEMPORAL DE UN ADAPTADOR Desaconsejamos totalmente el uso de un adaptador debido a los potenciales riesgos de seguridad. Para conexiones temporales, utilice Qnicamente un adaptador incluido en UL, disponible en la mayoria de tiendas de electricidad locales. Para desenchufar el cable de alimentaci6n del adaptador, hagalo con una mano en...
  • Page 25 Instrucciones de funcionamiento ll;i ¸¸!i!iii!ii!i ¸ii ¸iiil;ili ¸il;iiii!i ¸!!!iiii ¸i_ll_i_ii_;_i!_il_!_lili_l_lliil!_i_lil;illlii!_il!i_llll!_llll_iil_i;il_!ll_i_ii ¸II ¸ii!i ¸ii ¸!i!iiii!_iiii!!! ili!!ii!iiiiiii!i!!i!iiiii!iiiii!i!iiii ¸iiiii_! iHijoh i iiI i!_'i_i!i ¸_i!_i_i_iii_iiii!i_i!i_iii!_ii!!_!_i_ii_i_i ¸_iiii_ii_ii!i_iiii_!!_i ¸_i_i_i ¸I ¸ii_i_!_i ¸_iii_!i_i_i_i_!i_i_, '¸il,ii ¸i_!ii!!iiii!ili u_ o PANEL DE CONTROL Su deshumidificadortiene un panel de control en el que se incluye un indicadorde autoapague,una velocidad del ventiladory un control de la humedad.
  • Page 26 Instrucciones de funcionamiento APAGUE AUTOMATICO El deshumidificadortiene un detectorde nivel de agua que apaga la unidad cuando la cubeta esta Ilena,o cuandose quitade su lugar y no se vuelve a poner en la posici6nadecuada. La cubeta debe colocarse en la posicioncorrectapara que el deshumidificadorfuncione.
  • Page 27 Instalaci6n UBICACION ADECUADA DEL DESHUMIDIFICADOR • Utiliceel deshumidificadoren un • Utilice el deshumidificadoren • Use el deshumificadorpara evitar zonas de lavaderos,secadoras, s6tano para ayudar a evitar que la humedaddane los lugares daSospor humedad. baSosy lavavajillasque tengan en los que guarda libros. humedadexcesiva.
  • Page 28 Mantenimiento Este deshumidificador esta disetado para funcionar en cualquier epoca del afio. Practicamente no necesita cuidados. No obstante, debe revisar el Riesgo de descarga electrica deshumidificador e inspeccionar los serpentines anualmente. • Desconecte el cable de alimentaci6n del enchufe antes de realizar cualquier mantenimiento. Posiblemente prefiera que sea el Centro de Reparaciones y Recambios de Sears quien Ileve a •...
  • Page 29 Mantenimiento SOLUCIC)N DE PROBLEMAS El deshumidificador puede funcionar de modo anormal cuando: • AsegQrese dequelaclavija detdeshumidificador esta deshumidificador completamente insertada enel enchufe. noseenciende • Compruebe losfusibles o elcuadro detinterruptor automatico y cambie el fusible o vuelva a conectar el interruptor. •...
  • Page 30 Nota Deshumidificador...
  • Page 31 Master Protection Agreements Acuerdos de Proteccion Especializada Congratulations on making a smart iEnhorabuena! Ha realizado una compra inteligente. purchase. Su nuevo aparato Kenmore® esta diseSado y fabricado Your new Kenmore ® product is designed para ofrecede aSos de buen funcionamiento.
  • Page 32 Your Home iiiiiiiiiiiiiiii_ iiiiiiiiiiiiiiiii For repair- in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter sold ....iiiiiiiiiiiiiiii_ iiiiiiiiiiiiiiiii For the replacement parts, accessories owner's manuals that you need to do-it-yourself....
