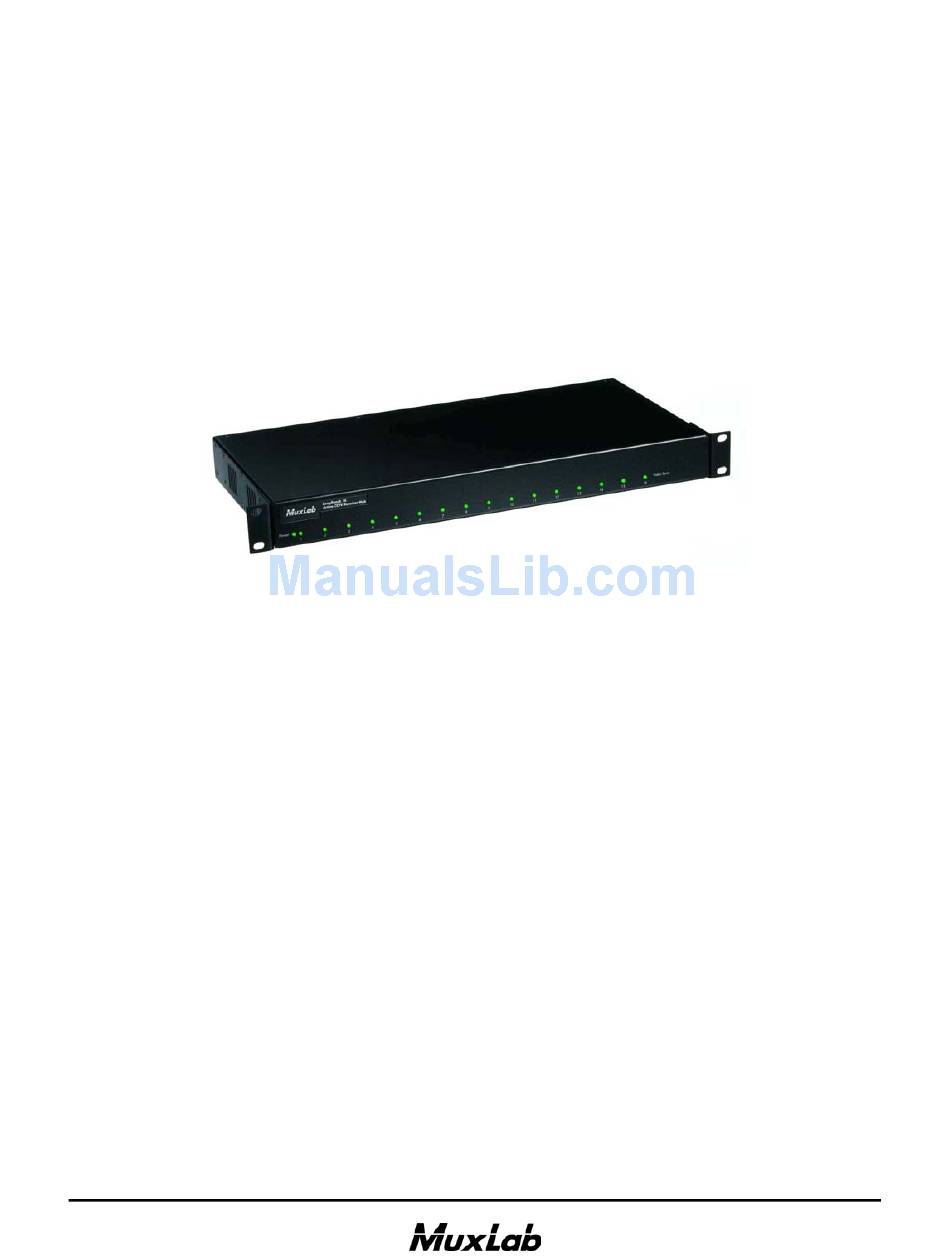

VideoEase
LongReach
16
™
™
Active CCTV Receiver Hub
(500120,500121,500122,500123)

Installation Guide

P/N: 94-000369-C, SE-000405-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VideoEase LongReach 16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MuxLab VideoEase LongReach 16

Summary of Contents for MuxLab VideoEase LongReach 16

  • Page 1: Installation Guide

    VideoEase LongReach ™ ™ Active CCTV Receiver Hub (500120,500121,500122,500123) Installation Guide P/N: 94-000369-C, SE-000405-C...
  • Page 2 Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author. Trademarks : MuxLab, VideoEase and LongReach are registered trademarks of MuxLab Inc. Page 2...

  • Page 3: Table Of Contents

    © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Table of Contents 1. Overview ........................4 1.1. Description......................4 1.2. Features......................4 2. Technical Specifications ....................5 3. Installation Procedure ....................6 3.1. Parts List ......................6 3.2. Product Overview .....................6 3.3. Pre-Installation Checklist .................7 3.4.

  • Page 4: Overview

    The LongReach 16 supports up to 4,500 ft (1,371m) via Category 5/6 twisted pair cable when used in conjunction with MuxLab’s passive CCTV Baluns (p/n 500000, 500009, 500022 and 500023) at the camera end.

  • Page 5: Technical Specifications

    © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Technical Specifications Environment CCTV equipment for security and surveillance. RS-343 (RS-170) NTSC, PAL Devices CCTV cameras, DVR, IP camera encoders, monitors, switchers, multiplexers and other CCTV equipment. Transparent to the user...

  • Page 6: Installation Procedure

    © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Installation Procedure 3.1. Parts List The LongReach 16 comes with the following parts. Please verify that all pieces are present before proceeding. • Base Unit (Factory configuration: rack mount) •...

  • Page 7: Pre-Installation Checklist

    DVR, CCTV multiplexer or matrix switcher at the central monitoring location. 2. The LongReach 16 is used in conjunction with MuxLab’s passive CCTV Baluns (p/n 500000, 500009, 500022, or 500023). The passive CCTV Baluns are connected at the CCTV source, which is usually the CCTV camera.

  • Page 8: Physical Installation

    © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide 3.4. Physical Installation The LongReach 16 has three mounting options; desktop, 19” rackmount or wallmount. The product comes with two (2) mounting brackets and four (4) rubber stand-offs to allow it to be configured for either option. The product is factory set for rackmounting.

  • Page 9: Installation Procedure - Utp/Utp Version

    CCTV balun and the hub. Multipair cables are supported as long as they are Category 5 or better. Figure 7: Camera connection 4. Ensure that the power is turned off on DVR or mux. Install a MuxLab passive CCTV balun on each port of the DVR. The 500009 is recommended for this purpose.
  • Page 10 © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Video Input Figure 8: DVR connection, UTP/UTP version 6. Connect the floating 24VAC power transformer first to the hub and then plug the power supply into an AC power outlet. If power is present, then the green power LED will be ON.

  • Page 11: Installation Procedure - Utp/Coax Version

    © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide 3.6. Installation Procedure – UTP/Coax Version The LongReach 16 is available in a UTP/Coax version (500122, 500123) where the hub is located near the central monitoring system (DVR). In order to install the product in this configuration, please follow the steps below: 1.
  • Page 12 © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Figure 11: Typical Configuration, UTP/Coax version Page 12...

  • Page 13: Troubleshooting

    2 V DC or AC. against static discharges (i.e.; is not perfect inside metal, grounded cage) When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready: • Unit model number. • List of tests performed.

  • Page 14: Product Warranty Policy

    Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.
  • Page 15 © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Page 15...
  • Page 16 © MuxLab Inc. LongReach 16 Active CCTV Receiver Hub Installation Guide Tel.: (+1) 514 905-0588 Fax: (+1) 514 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: videoease@muxlab.com Page 16...
