Summary of Contents for MuxLab 100510

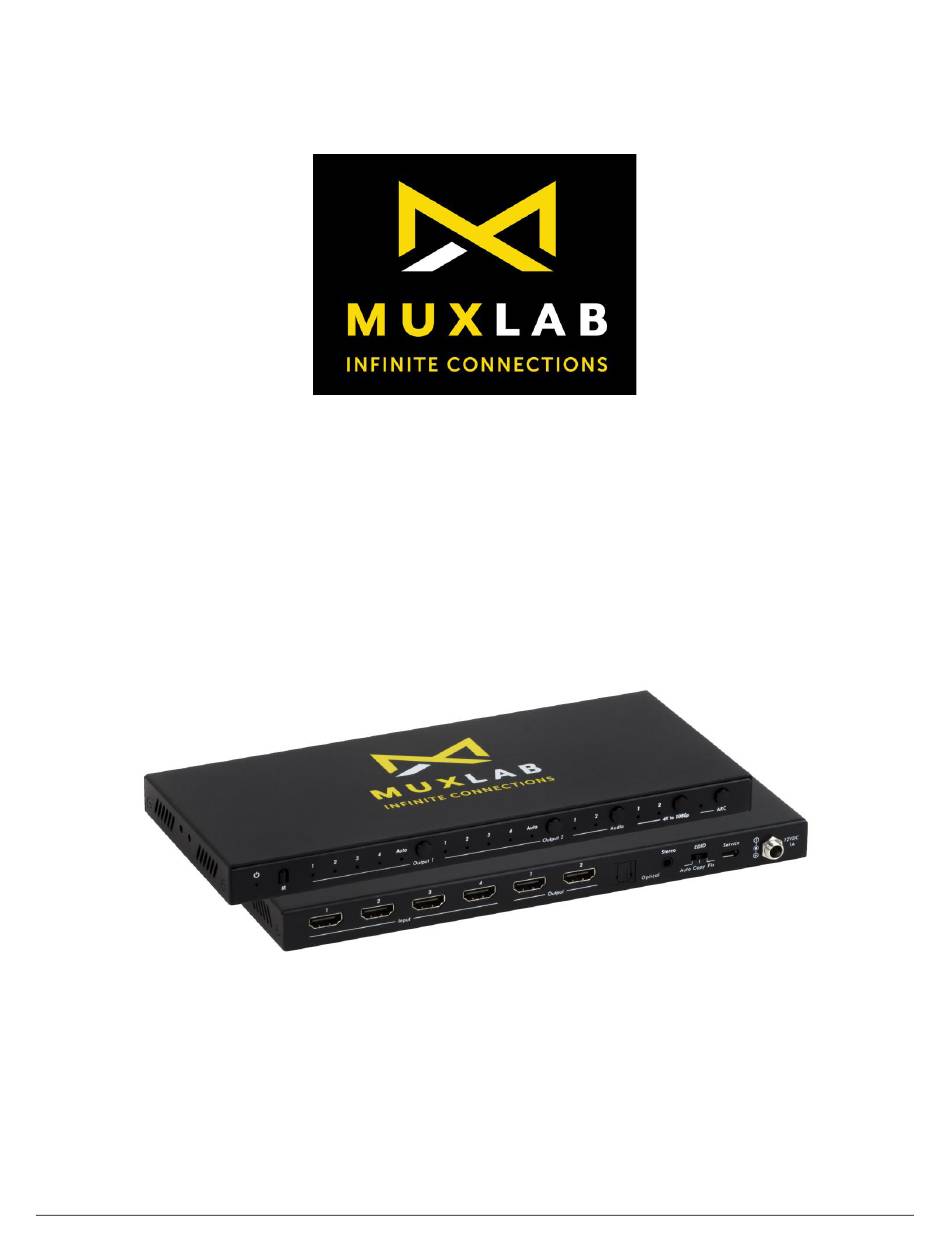

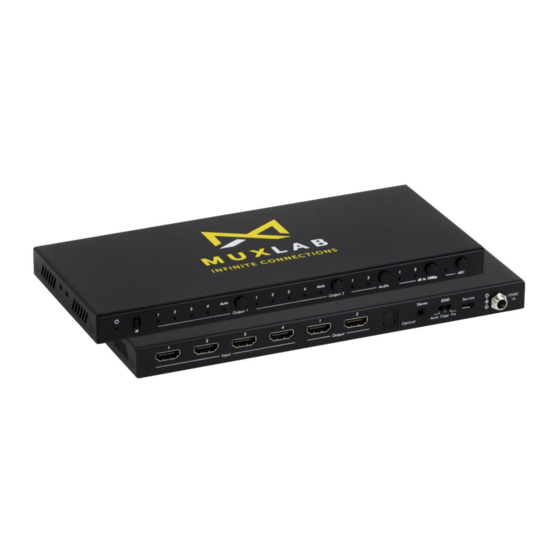

- Page 1 HDMI 4x2 Matrix Switch 4K60 Operation Manual 100510 © Muxlab Inc. 2020 94-000936-A / SE-000936-A...
- Page 2 ⚫ Unplug the power when left unused for a long period of time. ⚫ Information on disposal of this device: do not burn or mix with general household waste, please treat as normal electrical waste. NOTICE: Please read this manual carefully before using this product. © Muxlab Inc. 2020...
-
Page 3: Table Of Contents
⚫ One (1) Quick Reference Sheet ⚫ One (1) HDMI Matrix IR Remote ⚫ Two (2) Mounting Ears Notes：Please confirm if the product and the accessories are all included. If not, please contact the supplier from whom you purchased the unit. © Muxlab Inc. 2020... -
Page 4: Specifications
3.8W (max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Dimensions 251mm(W) × 105mm(D) × 20mm(H) Weight 620g Warranty 1 Year © Muxlab Inc. 2020... -
Page 5: Panels Description
LED will illuminate. ▪ If the ARC function is turned on, press the Audio button to select and return the audio signal from Output 1 or Output 2 to the digital optical output. The © Muxlab Inc. 2020... -
Page 6: Rear Panel
STD: Output 1 and Output 2 display device defaults to 1080P. Service Firmware update port. Power Connects to the 12VDC, 1A power adapter for unit power. The power adapter must also be plugged into an appropriate AC outlet. © Muxlab Inc. 2020... -
Page 7: Remote Control
B button to select and return the audio signal from Output 1 or Output 2 respectively, to the digital optical output. The corresponding blue LED will illuminate. Note that in this case the analog L/R port is muted. © Muxlab Inc. 2020... -
Page 8: Connections And Operation
HDMI signal, access the display’s menu and adjust the resolution (lowest to highest until the signal is displayed). Please note that a 24 Hz vertical refresh rate may work better than 60 Hz or higher. © Muxlab Inc. 2020... -
Page 9: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. 2321 Cohen Road, Montreal, Quebec, Canada. H4R 2N7 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: © Muxlab Inc. 2020 www.muxlab.com...
