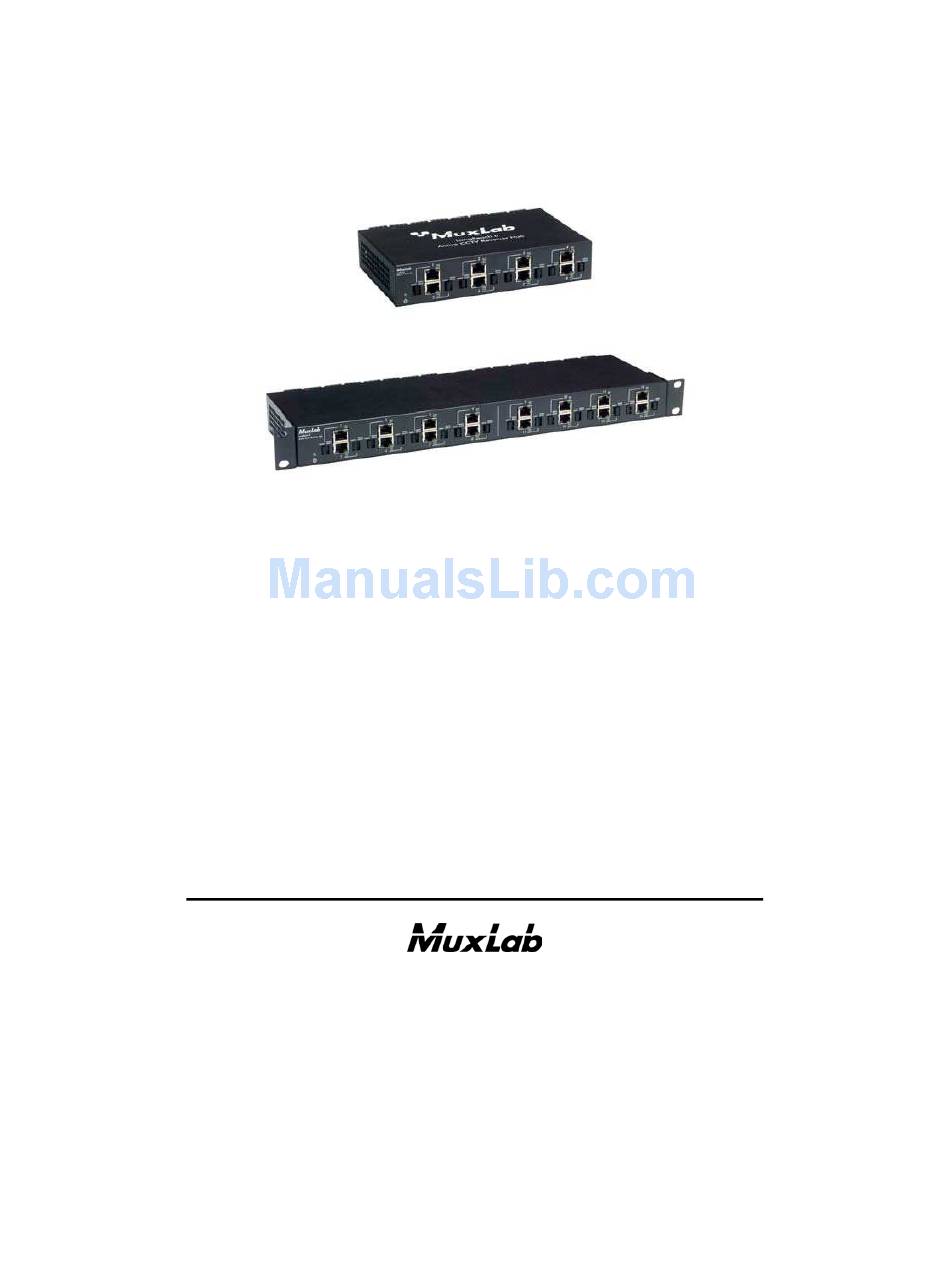

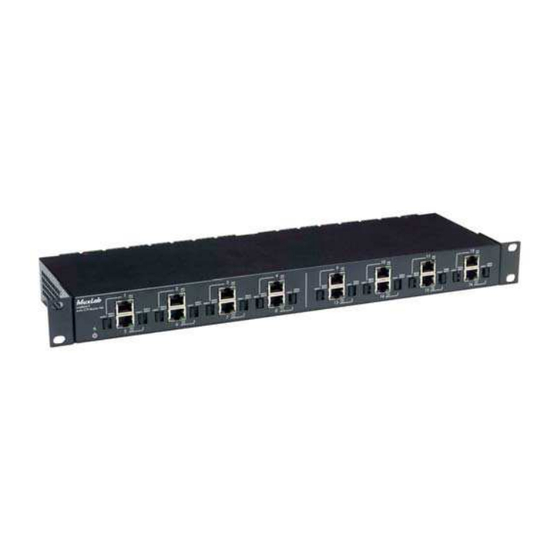

Page 1: Installation Guide
LongReach II Active CCTV Receiver Hub 500126 [8P], 500127 [16P] Installation Guide P/N: 94-000709-A SE-000709-A... - Page 2 LongReach II Active CCTV Receiver Hub Installation Guide Copyright Notice: Copyright © 2012 MuxLab Inc. All rights reserved. Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without prior written permission of the author.
-
Page 3: Table Of Contents
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Table of Contents 1. Overview .................4 1.1. Description............4 1.2. Features.............5 2. Technical Specifications ..........6 3. Installation Procedure ..........10 3.1. Pre-Installation Checklist .......10 3.2. Physical Installation (500127) ......11 3.3. Installation Procedure ........13 4. -
Page 4: Overview
CCTV video signals to be transmitted up to 1 mile (1.6 km) via a Category 5e/6 twisted pair cable when used in conjunction with MuxLab’s passive CCTV baluns (i.e. 500000, 500009, 500022, 500024) at the camera end. The LongReach II Hub features Automatic Gain Control (AGC) and Ground Loop Isolation (GLI) for reliable and stable image quality. -
Page 5: Features
• Ground Loop Isolation • Diagnostic LEDs • Connects directly to CCTV receiver equipment • Works with passive CCTV Baluns • Supports MuxLab mounting accessories (500900/902/910/915) • Requires floating 5V DC, 13 W power supply (included) • 2-year warranty... -
Page 6: Technical Specifications
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Technical Specifications Specifications CCTV composite baseband video; NTSC, Environment PAL, SECAM Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equip. Transparent to the user Transmission Video 20 Hz to 8 MHz. - Page 7 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Remote Power (i.e.; 24 VAC, 28 VAC) Remote low voltage power supported via Wiring two (2) twisted pairs. A Class II power supply is recommended. Max. Current 2.5 A rms or DC Max.
- Page 8 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Specifications (Cont’d) RJ45 Pin Signal 500022 Mode 500024/500029 Configuration Mode *Reverse polarity *Power A (+) 1, 3 1, 3, 5 sensitive if 12DC camera is used *Power B (-) 2, 6...
- Page 9 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Specifications (Cont’d) Enclosure Aluminium 500126 (8-port): Dimensions 8.4” x 5.15” x 1.65” (21.4 x 13.1 x 4.2 500127 (16-port): 16.9” x 5.09” x 1.65” (42.9 x12.9 x 4.2 Weight 500126: 2.8 lb. (1.3 kg) 500127: 4.6 lb.
-
Page 10: Installation Procedure
CCTV DVR, IP encoder or matrix switcher at the central monitoring location. 2. The LongReach II Hub is used in conjunction with MuxLab’s passive CCTV baluns (i.e.: 500009, 500022, 500024/29). The passive CCTV Balun is connected at the CCTV source, which is usually the CCTV camera. -
Page 11: Physical Installation (500127)
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 4. The LongReach II Hub must be powered by a 5V DC, 13 W floating (non-grounded Ring of the PSU DC plug) power supply (supplied with the product). 5. The LongReach II Hub is calibrated to work with CCTV sources that conform to RS-343 (RS-170). - Page 12 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 2. If the product is to be installed on a desk, then remove the rackmount brackets with a standard Philips screwdriver and store the brackets for future use. Peel the backing off the rubber standoffs and affix them to the corners underneath the base of the unit.
-
Page 13: Installation Procedure
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 3.3. Installation Procedure 1. For video-only applications, connect the passive CCTV Balun (500000 or 500009) to the CCTV camera video output port. 2. Connect one twisted pair to the passive CCTV Balun. - Page 14 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 4. If remote power, video and PTZ control is to be transmitted, use 500022 balun. Refer to the specification table regarding maximum distances and set the slide switch on the LongReach II Hub to “500022”.
- Page 15 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 9. Due to the Automatic Gain Control, the camera image may take a few seconds to stabilize. This is normal. The LongReach II Hub automatically restores the video camera signal to its original quality, compensating for effects due to the presence of a UTP cable and electrical noise.
- Page 16 © MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 12. The following diagram illustrates typical configuration. 13. The LongReach II Hub is equipped with resettable fuses to protect the circuitry. In the event of a power surge, the fuse(s) will trip and the green LED will dim.
-
Page 17: Troubleshooting
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide Troubleshooting The following table describes some of problem symptoms, probable causes, and possible solutions. If the information below does not solve the problem, the technical support contact information can be found at the end of this section. -
Page 18: Technical Support Information
© MuxLab. LongReach II Active CCTV Receiver Hub Installation Guide 4.1. Technical Support Information When contacting your nearest MuxLab dealer or MuxLab Technical Support, please have the following information ready: • Unit model number • Cabling layout. Include camera and DVR/IP encoder... -
Page 19: Product Warranty Policy
Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent. -
Page 20: Muxlab Inc
Product more than six months old, including shelf life. The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product.
