FT1200 Handbook
COMPACT

Advertisement

   Also See for Mitsubishi Electric Apricot FT1200

   Summary of Contents for Mitsubishi Electric Apricot FT1200

  • Page 1

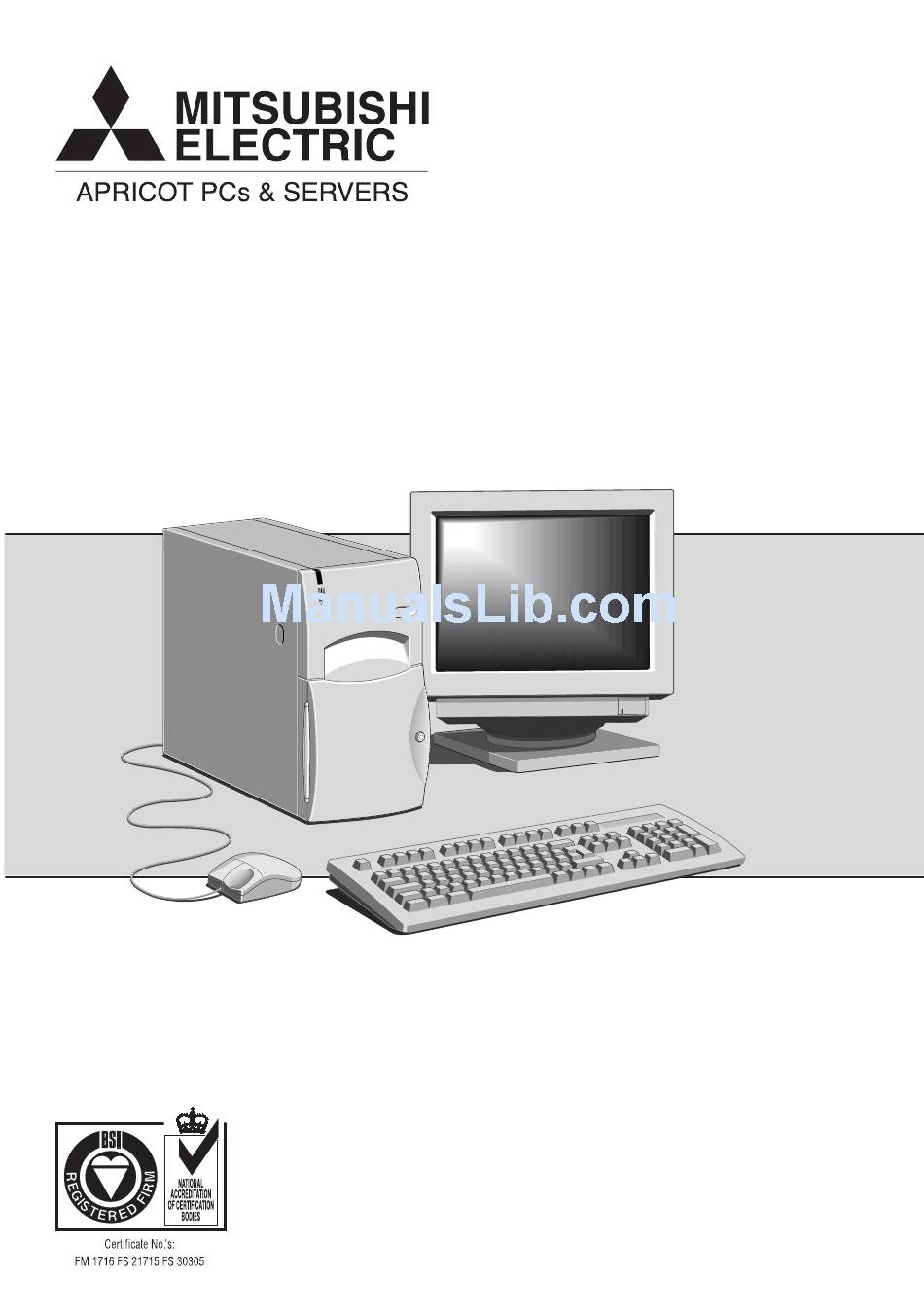

    Apricot SERIES FT1200 Handbook COMPACT...

  • Page 2

    APRICOT FT S ERIES with Pentium®II processor FT1200 HANDBOOK...

  • Page 3

    ® Intel and Pentium II are registered trademarks of Intel Corporation. ® ® Microsoft, MS-DOS, Windows 95 and Windows NT are registered trademarks of Microsoft Corporation in the US and other countries. Other trademarks mentioned within this document and not listed above are the properties of their respective owners.

  • Page 4: Table Of Contents

    CONTENTS Safety and Regulatory notices General Maintenance and Transporting Standards and Legalities Power connection Welcome Unpacking Pictorial guide to the system unit Removing panels General advice Connecting the components Turning on the PC Shutting down the PC Using the computer for the first time 1/10 Backing-up the pre-installed software 1/10...

  • Page 5

    C o n t e n t s SCSI drives SCSI Device support Hard disk configurations HDD jumpers Installing in the forward drive bay Installing in the rear drive bay Installation of a removable media drive Using the SCSISelect Utility Using the SCSI Disk Utilities 4/15 Motherboard Features &...

  • Page 6: Safety And Regulatory Notices

    SAFETY AND REGULATORY NOTICES General Electrical The computer uses a safety ground and must be earthed. The system unit AC power cord is its ‘disconnect device’. Ensure that the system unit is positioned close to the AC power outlet and that the plug is easily accessible.

  • Page 7

    S A F E T Y & R E G U L A T O R Y N O T I C E S Ergonomic When positioning the system unit, monitor and keyboard, take into account any local or national regulations relating to ergonomic requirements.

  • Page 8

    S A F E T Y & R E G U L A T O R Y N O T I C E S Maintenance Switch off and disconnect all cables before attempting to clean the computer. Do not use sprays, solvents or abrasives that might damage the system unit surface.

  • Page 9

    IMPORTANT This system complies with the CE Marking Directive and its strict legal requirements. Use only parts tested and approved by Mitsubishi Electric PC Division. Failure to do so may result in invalidating both the compliance and your warranty. All expansion cards, drives and peripherals must carry the CE mark to ensure continued compliance.

  • Page 10: Power Connection

    S A F E T Y & R E G U L A T O R Y N O T I C E S Power Connection Typical AC plugs 250V 125V 250V 250V 250V BS1363A SHUCO NEMA 5-15P SRAF 1962/DB16/87 ASE 1011 U.

  • Page 11

    S A F E T Y & R E G U L A T O R Y N O T I C E S Connecting to the AC power supply IMPORTANT Any peripheral equipment that requires an AC power cord must be earthed. Use the following guidance to connect the components together.

  • Page 12: Welcome

    WELCOME This chapter gives you a quick tour of your new FT1200 Server, the main features, plus some of the components it may contain. Throughout this manual ‘Windows’ means Microsoft Windows NT 4.x or higher, unless otherwise stated. WARNING Read the Safety & Regulatory Notices section at the start of this manual before using the computer for the first time.

  • Page 13: Pictorial Guide To The System Unit

    W e l c o m e Pictorial guide to the system unit COM PAC Reserved for future options CD activity indicator Hard disk activity indicator Lockable front door Power Mode indicator CD emergency eject hole button CD E button OWER JECT CD-ROM disc drawer (platter)

  • Page 14

    W e l c o m e 10 10 1 Microphone input socket Voltage selector switch Line audio, (left) in (right) out AC power inlet from AC supply Network connector Fan cover (do not use to lift) Serial port (COM 2) Caselock Parallel (printer) port Handles to assist side panel removal...

  • Page 15: Removing Panels

    W e l c o m e Use the P button to turn on the computer and change power OWER modes. This switch can be secured by closing and locking the front door. this will also prevent unauthorised access to the removable media drives.

  • Page 16

    W e l c o m e Slide the panel carefully towards the rear of the system using the handle provided. After about 2 to 3 cm of movement it is possible to lift the panel vertically, clear of the system. See the following chapters for more information: ♦...

  • Page 17

    W e l c o m e Power supply unit (PSU) First or “master” hard disk drive (HDD) Forward drive bay for removable media drives and/or a second HDD Diskette drive SCSI adapter connections ATAPI IDE and floppy drive connectors Memory ‘DIMM’...

  • Page 18: General Advice

    W e l c o m e General advice This computer is designed to be used in a normal home or office environment. Here are a few hints for choosing a suitable site: ♦ Place the system unit flat on a sturdy, level surface, free from vibration.

  • Page 19: Connecting The Components

    W e l c o m e Connecting the components Use the following guidance to connect the components together. It is important that you take each step in the order indicated. Before connecting any components, ensure that the AC power supply is switched off or disconnected, and that the system unit, the monitor, and any peripherals are turned off.

  • Page 20: Shutting Down The Pc

    W e l c o m e place or ‘pre-installed’ on the hard disk, so that the operating system is ready for you when you turn on the computer. NOTE If a diskette is in the diskette drive when the computer is turned on, the computer will attempt to boot using that diskette.

  • Page 21: Using The Computer For The First Time

    Mitsubishi PCs arrive with a pre-installed operating system or ‘Software’. Additional software may be pre-installed at the factory or by your Mitsubishi Electric PC supplier. We strongly recommend that you copy or ‘back-up’ any pre-installed software soon after setting up the system. This is particularly important for systems that are supplied without installation diskettes for the software on the hard disk.

  • Page 22: Improving Your Display Settings

    Windows is sure to display correctly whatever monitor you have. Most modern monitors, including Mitsubishi Electric monitors, can display higher resolutions than standard VGA. You can change the setting to one that more closely matches your own monitor, to get the best performance from it.

  • Page 23: If Your Hard Disk Is Larger Than 2 Gigabytes

    W e l c o m e If your hard disk is larger than 2 gigabytes If you have Windows NT, the first 2 Gbytes are formatted (using FAT) as a primary partition. The rest of the disk is untouched. You can repartition and reformat the disk using the Disk Administrator tool in the Administrative Tools (Common) folder.

  • Page 24: Removable Media Drives

    REMOVABLE MEDIA DRIVES Diskette drive Your FT1200 Server is fitted with a 1.44 Mbyte diskette drive. This accepts either 1.44 Mbyte (HD) or 720 Kbyte (DD) diskettes. Each diskette has a rigid plastic cover, with a metal shutter that guards the disk surface. Never touch the exposed surface under the shutter –...

  • Page 25

    R e m o v a b l e m e d i a d r i v e s Ejecting a diskette ♦ Wait until the drive’s activity indicator is unlit, then press the button. EJECT If a diskette becomes stuck in the drive, perhaps because its label has peeled back, do not attempt to remove it with tweezers or any similar implement;...

  • Page 26: Cd-rom Drive

    R e m o v a b l e m e d i a d r i v e s CD-ROM drive The CD-ROM drive can retrieve multimedia data from CD-ROM discs and multi-session Photo-CD discs. It can also play normal music CDs (the drive has its own headphone jack and associated volume control).

  • Page 27

    R e m o v a b l e m e d i a d r i v e s Inserting a compact disc Press the button on the front of drive. EJECT Place the CD centrally, printed side up, on the platter. Push the button again, or gently push the front of the EJECT...

  • Page 28: Dat Tape Drive (option)

    R e m o v a b l e m e d i a d r i v e s DAT tape drive (option) It is recommended to regularly make a backup of the software on the system hard drives. A DAT tape drive is one of the simplest and most convenient methods.

  • Page 29

    R e m o v a b l e m e d i a d r i v e s Inserting a DAT tape COM PACT Hold the cassette with its metal plate downward and the open tape edge towards the computer. Without using undue force, press the cassette against the drive tape slot.

  • Page 30: Expansion Cards

    EXPANSION CARDS Expansion cards (also known as expansion boards, controllers or adapters) are small self-contained circuit boards which extend the capabilities of the computer. For example, a graphics card could provide more specialised video functions than those offered by the on-board video system, or a modem card could provide a connection to the Internet via a telephone line.

  • Page 31: Configuring The Card

    E x p a n s i o n C a r d s Configuring the card Part of the installation procedure for an expansion card involves setting up or “configuring” the card so it will work correctly in the computer.

  • Page 32

    E x p a n s i o n C a r d s ISA Interrupt request level (IRQ) The “interrupt request level” or “IRQ” is the means by which the expansion card sends a signal to get the attention of, or interrupt, the processor.

  • Page 33

    E x p a n s i o n C a r d s Base memory address Some expansion cards are fitted with memory of their own, usually read-only memory (ROM) containing functional extensions to the computer’s BIOS (basic input/output system) ROM. Some cards also have random-access memory (RAM).

  • Page 34: Installing The Card

    IMPORTANT This system complies with the CE Marking Directive and its strict legal requirements. Use only parts tested and approved by Mitsubishi Electric PC Division. Failure to do so may result in invalidating both the compliance and your warranty. All expansion cards, drives and peripherals must carry the CE mark to ensure continued compliance.

  • Page 35

    E x p a n s i o n C a r d s feature cable into the motherboard before you install the card; otherwise, the card may get in the way of the connector. See the Motherboard Features & Upgrades chapter to locate the VESA/AMC connector.

  • Page 36: Reserving Isa Legacy Resources

    E x p a n s i o n C a r d s Reserving ISA legacy resources If the computer does not automatically detect the new expansion card the first time you turn it on, start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”.

  • Page 37: Scsi Drives

    SCSI DRIVES This chapter describes installation of and support for SCSI devices, how to configure them and how to use the SCSISelect utility. SCSI Device Support The motherboard has an Adaptec AIC-7895 dual-channel SCSI controller chip integrated as a PCI bus master. The controller supports data path widths of 8-bit (narrow SCSI) at a data transfer rate of up to 20 MB/sec and 16-bit (wide SCSI) at a data transfer rate of up to 40 MB/sec.

  • Page 38: Hard Disk Configurations

    S C S I d r i v e s First or “master” hard disk drive (HDD) Slot for a second hard disk drive Slot for a removable-media drive Rear drive bay for two SCSI hard disk drives Hard disk configurations Two options are available for SCSI control;...

  • Page 39: Hdd Jumpers

    S C S I d r i v e s HDD jumpers Jumper Function Function (DCAS-xxxxx) (DDRS-xxxxx) ID Bit 3 (MSB) ID Bit 3 (MSB) ID Bit 2 ID Bit 2 ID Bit 1 ID Bit 1 ID Bit 0 (LSB) ID Bit 0 (LSB) Disable Auto Spin up Enable Auto Spin up...

  • Page 40: Installing In The Forward Drive Bay

    S C S I d r i v e s Installing in the forward drive bay To install a second hard disk drive in the forward drive bay: Turn off the computer and unplug all power cords. If there is a diskette in the diskette drive, remove it. Take suitable anti-static precautions and remove all the system panels.

  • Page 41: Installing In The Rear Drive Bay

    S C S I d r i v e s Installing in the rear drive bay The rear drive bay has a cooling fan for the processors mounted on the rear. This has a power connection to the motherboard. Turn off the computer and unplug all power cords. Take suitable anti-static precautions and remove the system side panel.

  • Page 42: Installation Of A Removable Media Drive

    S C S I d r i v e s Partitioning and formatting the drive The new drive will initially be blank. Before you can use the drive, you must partition and format it. Although drives can be formatted using Windows, it is recommended to use the SCSISelect utility described later in this chapter.

  • Page 43

    S C S I d r i v e s Pull out the metal blanking plate from the front of the internal drive bay metalwork. Carefully slide the new drive into the bay from the front and secure it on both sides using the special screws provided with the drive.

  • Page 44: Using The Scsiselect Utility

    S C S I d r i v e s Using the SCSI Select Utility The SCSISelect Utility enables you to: ♦ Modify the SCSI controller's configuration (including termination) ♦ Change SCSI device settings that conflict with other device settings ♦...

  • Page 45

    S C S I d r i v e s SCSI Disk Utilities When selected, this brings up the SCSI Disk Utilities Menu. Configuration Menu NOTE In the utility, an asterisk (*) indicates the default setting for a field. Host Adapter SCSI ID Specifies the SCSI ID of the host adapter.

  • Page 46

    S C S I d r i v e s Boot Device Configuration Boot Channel Specifies the SCSI channel from which the computer should boot. The options are: ♦ ♦ A First (default) B First Boot SCSI ID Specifies the SCSI ID of the device from which you wish to boot. The options are ID 0–15.

  • Page 47

    S C S I d r i v e s Enable Disconnection Sets whether the motherboard allows SCSI devices to disconnect from the SCSI bus. Enabling disconnection allows the motherboard to perform other operations on the SCSI bus while the SCSI device is temporarily disconnected.

  • Page 48

    S C S I d r i v e s Include in BIOS Scan Specifies whether a device is included in the SCSI BIOS scan at boot. Selecting No removes the device from the scan. The device will not be assigned a SCSI ID.

  • Page 49

    S C S I d r i v e s Use Extended BIOS Translation only with MS-DOS 5.0 or higher. You do not need to enable this option if you are using another operating system such as NetWare, Windows NT, or UNIX. When you partition a disk larger than 1 GB, use the MS-DOS fdisk utility as you normally would.

  • Page 50

    S C S I d r i v e s ♦ All Disks (All removable-media drives supported by the BIOS are treated as hard disk drives) ♦ Disabled (No removable-media drives are treated as hard disk drives. In this situation, software drivers are needed because the drives are not controlled by the BIOS) Display <Ctrl-A>...

  • Page 51: Using The Scsi Disk Utilities

    S C S I d r i v e s Using the SCSI Disk Utilities To enter the SCSI Disk Utilities, select the SCSI Disk Utilities option from the SCSISelect menu. When you select this option, SCSISelect scans the SCSI bus (to determine the devices installed) and displays a list of all SCSI IDs and the devices assigned to each When you select a specific ID and device, a small menu appears, displaying two options: Format Disk and Verify Disk Media.

  • Page 52: Motherboard Features & Upgrades

    MOTHERBOARD: FEATURES & UPGRADES General features Accelerated Graphics Port (A.G.P.) Support The Accelerated Graphics Port (A.G.P.) is a high- performance interconnect for graphics-intensive applications, such as 3D graphics. A.G.P. is independent of the PCI bus and is intended for exclusive use with graphics displays. A.G.P.

  • Page 53

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s traffic and when it detects a Magic Packet, it sends a signal through the Wake on LAN connector to wake up the computer.

  • Page 54

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Audio Subsystem The optional audio subsystem features the Crystal CS4236B multimedia codec. The CS4236B is a Plug and Play device that provides all the digital audio and analog mixing functions needed to play and record sound on personal computers.

  • Page 55

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s OM06320 Onboard serial port 2 connector (optional) Ultra-wide (16-bit) SCSI connectors CPU 1 fan connector Narrow (8-bit) SCSI connector ATAPI CD audio connector (optional)

  • Page 56: Back Panel Connectors

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s OM06576 Back Panel Connectors PS/2 connector (mouse or keyboard) Parallel port connector Audio Line In jack (optional) PS/2 connector (mouse or keyboard) USB connectors...

  • Page 57: Processor Upgrades

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Processor Upgrades If your motherboard has one processor, you can upgrade the computer by replacing this processor with a faster one, or by installing an application processor.

  • Page 58

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s To Remove a Processor If you are upgrading a single processor, you need to remove the existing processor Observe the precautions in Safety and Regulatory Notices.

  • Page 59

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s To Install a Single Processor To install the processor: Observe the precautions in Safety and Regulatory Notices.

  • Page 60

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s notch in the S.E.C. cartridge fits over the key in the Slot 1 connector.

  • Page 61

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s OM06312 Removing the Termination Card Press the latches on the termination card (A) inward to release it from the retention mechanism.

  • Page 62

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s OM06308 Installing the Termination Card Slide the termination card (A) into the retention mechanism (C).

  • Page 63

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Turn off the computer, disconnect the computer’s power cord, and disconnect all external peripherals. NOTE The second processor must be identical in speed and voltage to the first processor.

  • Page 64

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s retention mechanism (C). Ensure that the alignment notch in the S.E.C. cartridge fits over the key in the Slot 1 connector.

  • Page 65: How To Install More Memory

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s The computer starts the Setup program. Setup displays the Maintenance menu. Use the arrow keys to select the Processor Speed feature and press <Enter>.

  • Page 66

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s OM06326 Location of DIMM Sockets Observe the precautions in Safety and Regulatory Notices.

  • Page 67: How To Replace The Battery

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Hold the DIMM by the edges; remove it from its antistatic package. Make sure the clips at either end of the socket are pushed away from the socket.

  • Page 68

    CAUTION Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by your Mitsubishi Electric supplier. Discard used batteries according to the battery manufacturer’s instructions. Observe the precautions in Safety and Regulatory Notices.

  • Page 69: Motherboard Connectors

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Motherboard Connectors J1E1 J0F2 J2E1 J1F1 J0E1 J1M1 J0A1 J1M2 J2E2 J3F2 J9A1 J10A1...

  • Page 70

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s ATAPI CD Audio Connector (J1F1) Signal Name Left CD In CD_common CD_common Right CD In ATAPI-Style Telephony Connector (J0E1)

  • Page 71

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Wake on LAN Connector (J6D1) Signal Name +5 VSB Ground MP_WAKEUP Wake-on-Modem Connector (J9A1) Signal Name SLOT_RI_N...

  • Page 72: Front Panel Connectors

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Front Panel Connectors The motherboard has connectors for controls and indicators typically located on the front panel of the computer.

  • Page 73

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Connector Signal Name A. Speaker SPKR_HDR PIEZO_IN Ground B. Reset SW_RST Ground C.

  • Page 74: Motherboard Resources

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Motherboard Resources Memory Map Address Range Address Range Size Description (decimal) (hex) 1024 K - 1048576 K 100000 - 3FFFFFFF...

  • Page 75

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Address (hex) Size Description 0048 - 004B 4 bytes PIIX4- Counter/Timer 2 0060 1 byte Keyboard Controller Byte - reset IRQ...

  • Page 76

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s Address (hex) Size Description 03CE - 03CF 2 bytes Video (VGA) 03D4 - 03D5 2 bytes Video (VGA)

  • Page 77: Pci Configuration Space Map

    M o t h e r b o a r d : f e a t u r e s & u p g r a d e s PCI Configuration Space Map Device Function Description Number (hex) Number (hex) Number (hex) Intel 82443LX (PAC) Intel 82371AB (PAC ) A.G.P.

  • Page 78: Bios Setup & Menus

    BIOS SETUP AND MENUS The motherboard’s system BIOS is contained in a flash memory device on the motherboard. The BIOS provides the power-on self test (POST), the BIOS Setup program, the PCI and IDE auto- configuration utilities, and the SCSISelect Utility. The BIOS is always shadowed.

  • Page 79

    B I O S s e t u p a n d m e n u s Security Passwords The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the Setup program and for booting the computer, with the following restrictions: ♦...

  • Page 80: Using The Setup Program

    B I O S s e t u p a n d m e n u s Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a pop-up screen requesting that you confirm clearing the password. Select Yes and press <Enter>. Setup displays the Maintenance menu again.

  • Page 81: Setup Menus

    B I O S s e t u p a n d m e n u s Jumper Settings for Setup Program Modes Mode Jumper Description Normal BIOS uses current configuration and passwords for booting. Configure After the POST runs, Setup starts and displays the Maintenance menu. There are options for setting the processor speed and clearing passwords.

  • Page 82: Maintenance Menu

    B I O S s e t u p a n d m e n u s Maintenance Menu Use this menu to specify the processor speed and clear the Setup passwords. Setup only displays this menu in configure mode. Feature Options Description...

  • Page 83: Floppy Options Submenu

    B I O S s e t u p a n d m e n u s Floppy Options Submenu Feature Options Description Diskette A: Disabled Specifies the capacity and physical size of diskette drive A. 1.2 MB, 5¼″ 720 KB, 3½″ 1.44/1.25 MB, 3½″...

  • Page 84: Advanced Menu

    B I O S s e t u p a n d m e n u s Feature Options Description Transfer Mode Standard Specifies method for transferring data between the hard drive and system memory. Fast PIO 1 Fast PIO 2 Fast PIO 3 Fast PIO 4 (default)

  • Page 85: Resource Configuration Submenu

    B I O S s e t u p a n d m e n u s Resource Configuration Submenu Feature Options Description Memory C800 - CBFF Available (default) | Reserved Reserves specific upper Reservation memory blocks for use CC00- CFFF Available (default) | Reserved by legacy ISA devices.

  • Page 86: Keyboard Configuration Submenu

    B I O S s e t u p a n d m e n u s Feature Options Description Mode Output Only Selects the mode for the parallel port. Bi-directional Output Only operates in AT-compatible mode. (default) Bi-directional operates in bi-directional PS/2-compatible mode. EPP is Extended Parallel Port mode, a high-speed bi-directional mode.

  • Page 87: Video Configuration Submenu

    B I O S s e t u p a n d m e n u s Video Configuration Submenu Feature Options Description Palette Snooping Disabled (default) Controls the ability of a primary PCI graphics controller to share a common palette with an ISA Enabled add-in video card.

  • Page 88: Power Menu

    B I O S s e t u p a n d m e n u s Power Menu Feature Options Description Power Management Disabled Enables or disables the BIOS power management feature. Enabled (default) Inactivity Timer Off (default) Specifies the amount of time before the computer enters standby mode.

  • Page 89: Hard Drive Submenu

    B I O S s e t u p a n d m e n u s Feature Options Description First Boot Device Removable devices Specifies the boot sequence from the available devices. To specify boot sequence: Second Boot Device Hard Drive Select the boot device with <↑>...

  • Page 90: Bios Beep Codes

    B I O S s e t u p a n d m e n u s Exit Menu Description Feature Exits and saves the changes in CMOS RAM. Exit Saving Changes Exits without saving any changes made in Setup. Exit Discarding Changes Loads the default values for all the Setup options.

  • Page 91

    B I O S s e t u p a n d m e n u s Error Message Explanation Fixed Disk 0 Failure or Fixed Disk 1 A fixed disk is not working or not configured properly. Check Failure or Fixed Disk Controller to see if the fixed disk is installed properly.

  • Page 92: Troubleshooting

    TROUBLESHOOTING This chapter offers advice if you suspect a fault with your computer. It is concerned mainly with problems caused by the computer itself; problems more often arise from other sources such as your operating system or application software. It must also be remembered that it can be very easy to leave off or dislodge cables inside the computer when fitting expansion cards, or upgrading the motherboard, or indeed anything that requires temporary removal of the system cover.

  • Page 93

    T r o u b l e s h o o t i n g Power-on self-test (POST) Whenever the computer is turned on, the BIOS POST routine tests various hardware components, including memory, and compares the actual configuration of the computer with that recorded in CMOS memory.

  • Page 94: Common Problems

    T r o u b l e s h o o t i n g another system diskette, if possible. Make sure that a boot device is correctly specified with the BIOS Setup utility. If the problem persists contact your supplier or authorised maintainer.

  • Page 95

    T r o u b l e s h o o t i n g grease and dust from the rollers inside the mouse with a cotton swab moistened with a solvent cleaner. Keyboard If the keyboard response is poor, something may be trapped under the keys.

  • Page 96

    T r o u b l e s h o o t i n g CD-ROM drive If you have problems accessing a CD, check that you have allowed a few seconds for the disk to spin up to full speed, that the disk is the correct way up in the drive (printed side upwards) and that it is a data CD.

  • Page 97: Equipment Log

    EQUIPMENT LOG Use this equipment log to record information about your PC. You may wish to cut it out and keep it in a safe place. Manufacturer’s data You should record the model codes and serial numbers of the system components. You can update this with information about any expansion cards fitted.

  • Page 98

    E q u i p m e n t l o g Expansion cards Manufacturer Description Serial number Other information It may be useful to note any additional information here such as date of purchase, supplier, etc., along with the phone number of your maintenance provider.

  • Page 99
