INSTR
¼" SONY SUPER HAD CCD COLOR DAY & NIGHT
MINITRAX DOME CAMERA
ART. 40797
Please read this manual thoroughly before use
and keep it for future reference.
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
http://www.comelit.it – E mail:
export.department@comelit.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40797 and is the answer not in the manual?

Questions and answers

Related Manuals for Comelit 40797

Summary of Contents for Comelit 40797

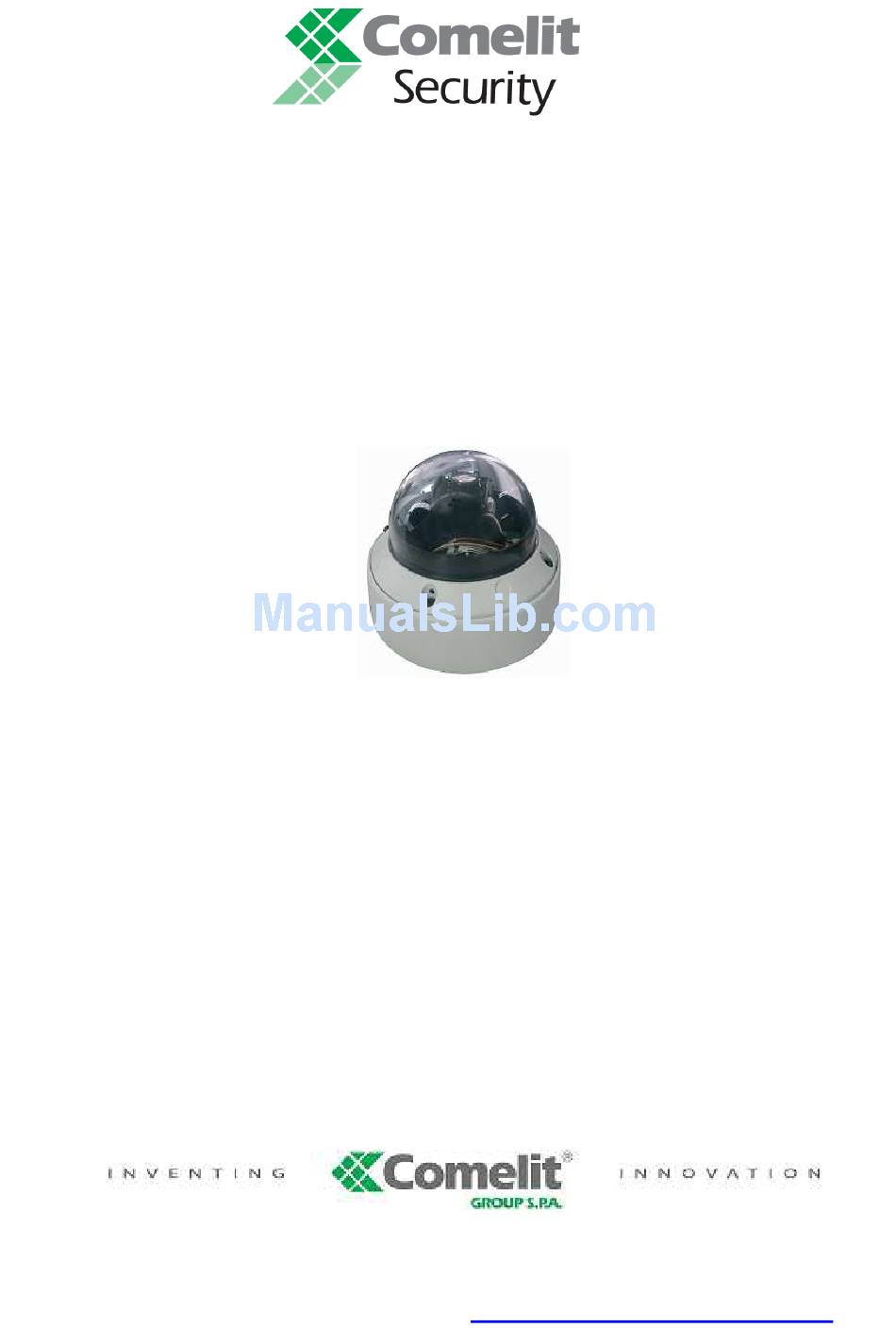

  • Page 1 INSTR ¼” SONY SUPER HAD CCD COLOR DAY & NIGHT MINITRAX DOME CAMERA ART. 40797 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail:...
  • Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Limitation Of Liability

    ISSUE 1 - JULY 2007 LIMITATION OF LIABILITY THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH CHANGES.

  • Page 4: Important Safeguards

    Important Safeguards 1. Read Instructions All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Cleaning Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
  • Page 5 12. Servicing Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage requiring Service Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or the plug has been damaged. B.
  • Page 6 FCC COMPLIANCE STATEMENT. FCC INFORMATIONS: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE RESIDENTIAL INSTALLATION.
  • Page 7 Introduction 1.1 Features The PTZ Dome keyboard controller and the PTZ Dome camera make up the building blocks for any surveillance/security system. Using multiple keyboard controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.

  • Page 8: Operation Requirements

    1.2 Operation Requirements ALARM INPUT ALARM OUTPUT SENSOR SIREN FLASHING LIGHT RS-485 MULTIPLEXER J-BOX CAMERA.1 CAMERA.2 CAMERA.3 ..VIDEO RS-485 RS-485 VIDEO CONTROLLER DVR / VCR MONITOR Typical System Configuration...

  • Page 9: Installation And Connection

    Installation and Connection 2.1 Package Contents Dome camera Instruction manual (This document) Template sheet Accessory kit Mounting screws (PH 6 x 35.0) Plastic anchors O-Ring Torx wrench (T-25) Accessory connector 2PIN Terminal Block 3PIN Terminal Block 4PIN Terminal Block Dome Camera Manual Accessory connector Template sheet...

  • Page 10: Base Installation

    2.2 Base Installation 1. Make mounting holes and cable hole in the place (ceiling) to wich this dome camera is installed using the supplied template sheet. Warning: The total mass of the main unit is approx 1.3kg. Check whether the ceiling to which the Dome Camera is installed is strong enough to hold the unit mass.

  • Page 11: Basic Configuration Ptz Dome Camera System

    2.3 Basic Configuration PTZ Dome Camera System CAUTION Do not connect the power cable until all other connections have been completed. If you complete the whole connection of cameras, then you have to cut the extra cable. VIDEO(BNC) MONITOR DVR / VCR 3PIN POWER CONNECTION WHITE...

  • Page 12: Setting Dome Camera Termination

    2.4 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the “485-TERMINATION” ON at the DOME SETUP MENU of the OSD (Refer to 3.9-2 485-TERMINATION). Without proper termination, there is potential for control signal errors.
  • Page 13 2.5 Setting the Protocol of Dome Camera Dip Switch2 Dip Switch1 Dome ID Setting Dome Camera Function Dome Camera Protocol Function S/W-No. Function NTSC NTSC/PAL Figure 1 - Dome Camera Function Select Switch No. 8 No. 9 No. 10 Protocol Fastrax-ll Pelco-D Pelco-P...

  • Page 14: Setting Address (Id) Of Dome Camera

    2.6 Setting Address (ID) of Dome Camera To prevent wrong operation and malfunction, each dome camera must have a unique address (ID). The factory default setting is 1. Refer to Figures 1 and Table 1 for setting the dome camera address (ID) and protocol selection.
  • Page 16 For example : ID Address ID Address ID Address...

  • Page 17: Connecting Wiring

    2.7 Connecting Wiring 2.7-1 Connecting to the RS-485 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex. 2.7-2 Connecting Video out connector Connect the video out(BNC) connector to the monitor or video input of the DVR.

  • Page 18: Program And Operation

    Program and Operation Notice The symbols shown below mean some action of the joystick controller is required. : move joystick up and down direction. : move joystick left and right direction. : twist joystick. : push defined key. 3.1 Start up Screen START UP PROTOCOL : FASTRAX-II DOME : 01...

  • Page 19: Preset Menu

    3.3 Preset Menu PRESET MENU NUMBER: 01 TITLE: ========== 0/1234567890 1/1234567890 2/1234567890 3/1234567890 4/1234567890 5/1234567890 HOME POSTION: 07 EXIT 306.2 017.4 : move cursor up and down. : move cursor left and right or select or change values. : move dome camera to saved preset point at NUMBER:xx, or character at exit current menu.

  • Page 20: Home Position

    You can select the Home Position from the saved presets. 3.3-2 Set ShortCut Preset 1. First of all move the dome to the desired position using joystick and set the zoom position using the zoom in or zoom out. 2. Press Preset Number you want to save and press PGM and PRST button in sequence.

  • Page 21: Tour Menu

    3.4 Tour Menu TOUR MENU TOUR : 1 TITLE: ========== DWELL TIME: 10 SEC SPEED: 07 == == == == == == == == == == == == == == == == SAVE EXIT : move cursor up and down. : move cursor left and right or select or change values.

  • Page 22: Auto Scan Menu

    3.5 Auto Scan Menu AUTO SCAN MENU SCAN: 1 TITLE: ========== START POINT: 000.0 000.0 POINT: 000.0 000.0 SCAN DIR. : CW SPEED: 07 SWAP: OFF SAVE EXIT : move cursor up and down. : move cursor left and right or select or change values. : change character at TITLE: exit current menu.
  • Page 23 9. SWAP will change the PAN position between START POINT and END POINT. 10. Select SAVE to save this Auto Scan. 11. Select EXIT to escape this menu. 3.5-2 Set ShortCut Auto Scan1 You can adjustable the Auto Scan 1’s Pan Limit by using the ShortCut button.

  • Page 24: Area Title Menu

    3.6 Area Title Menu AREA TITLE MENU AREA: 1 TITLE: AREA1====== START POINT: 000.0 POINT: 045.0 SAVE EXIT : move cursor up and down. : move cursor left and right or select or change values. : change character at TITLE: exit current menu.

  • Page 25: Alarm Menu

    3.7 Alarm Menu ALARM MENU INPUT: NC OUTPUT: NO OPTION: TIME OUT PRESET: 01 HOLDING TIME: 10 SEC SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. exit current menu. 3.7-1 Set Alarm INPUT: NC / NO / OFF You can select alarm input types here.

  • Page 26: Camera Setup Menu

    3.8 Camera Setup Menu CAMERA SETUP MENU FOCUS CONTROL WB CONTROL AE CONTROL L/L CONTROL PICTURE NIGHT SHOT CONTROL INITIALIZE CAMERA EXIT : move cursor up and down. : select. : exit current menu. FOCUS CONTROL Controls the focus mode and digital zoom. WB CONTROL Controls the white balance mode.

  • Page 27: Focus Control Menu

    3.8 Camera Setup Menu, continued 3.8-1 Focus Control Menu FOCUS CONTROL MENU MODE: AUTO DISTANCE: 0.1M DIGITAL ZOOM: OFF SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.

  • Page 28: Wb Control Menu

    3.8 Camera Setup Menu, continued 3.8-2 WB Control Menu WB CONTROL MENU MODE: AWB RGAIN: BGAIN: SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu. MODE: AWB / INDOOR / OUTDOOR / MANUAL / WAWB - AWB : Auto White Balance mode.

  • Page 29: Ae Control Menu

    3.8 Camera Setup Menu, continued 3.8-3 AE Control Menu AE CONTROL MENU MODE: AUTO SHOT: NORMAL SHUTTER: IRIS: GAIN: BRIGHT: 30 BLC MODE: OFF BLC LEVEL: SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.
  • Page 30 BRIGHT: 0 ~ 90 The brightness value is changeable from 0 to 90. BLC MODE: ON / OFF The Back Light Compensation is active when ON is set. BLC LEVEL: 0 ~ 90 The BLC Level is selectable from 0 to 90.
  • Page 31 3.8 Camera Setup Menu, continued 3.8-4 L/L Control Menu L/L CONTROL MENU SYNC: INTERNAL PHASE: SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu. MODE: INTERNAL / LINE LOCK - INTERNAL: Synchronizes camera to an internal crystal.

  • Page 32: Picture Menu

    3.8 Camera Setup Menu, continued 3.8-5 Picture Menu PICTURE MENU SHARPNESS: 08 MIRROR: OFF FREEZE: OFF NEGA/POSI: POSI DNR: ON PIP: OFF SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.
  • Page 33 3.8 Camera Setup Menu, continued 3.8-6 Night Shot Control Menu NIGHT SHOT CONTROL MENU D/N MODE: AUTO D/N LEVEL: HIGH DELAY: 10 SEC SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.
  • Page 34 3.8 Camera Setup Menu, continued 3.8-7 Initialize Camera If you run this menu, camera's all setting options are initialized as default setting. CAMERA W ILL BE INITIALIZED!! ARE YOU SURE?

  • Page 35: Dome Setup Menu

    3.9 Dome Setup Menu DOME SETUP MENU TILT AUTO FLIP: ON 485-TERMINATION: OFF ACKNOWLEDGE: ON AUTO CALIBRATION PASSWORD OSD DISPLAY HOME FUNCTION INITIALIZE DOME DOME INFORMATION SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.
  • Page 36 3.9 Dome Setup Menu, continued 3.9-4 Auto Calibration Menu AUTO CALIBRATION MENU EXECUTION EXIT : move cursor up and down. : select. : exit current menu. If there is an error on angle of the Camera, just select EXECUTION of the AUTO CALIBRATION MENU.

  • Page 37: Password Menu

    3.9 Dome Setup Menu, continued 3.9-5 Password Menu PASSWORD MENU DISPLAY: OFF CHANGE PASSWORD: ==== SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : change character at CHANGE PASSWORD: exit current menu.

  • Page 38: Osd Display Menu

    3.9 Dome Setup Menu, continued 3.9-6 OSD Display Menu OSD DISPLAY MENU DOME ID: ON PT POSITION: ON PAN DIRECTION: OFF TOUR ELEMENT: OFF AREA TITLE: OFF ALL DISPLAY DEFAULT SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values.
  • Page 39 3.9 Dome Setup Menu, continued 3.9-7 Home Function Menu HOME FUNCTION MENU MODE: ON FUNCTION TYPE: PRESET FUNCTION NUMBER: 01 DWELL TIME: 010 SEC SAVE AND EXIT EXIT : move cursor up and down. : move cursor left and right or select or change values. : exit current menu.

  • Page 40: Dome Information

    3.9 Dome Setup Menu, continued 3.9-8 Initialize Dome INITIALIZE DOME MENU PRESET DATA TOUR DATA AUTO SCAN DATA AREA TITLE DATA DOME SETUP DATA ALL DOME DATA EXIT : move cursor up and down. : select. : exit current menu. You can initialize all data separately.

  • Page 41: Troubleshooting And Maintenance

    Troubleshooting and Maintenance 4.1 Troubleshooting If you experience difficulties operating your camera, refer to the following. If the guidelines do not enable you to solve the problem, contact an authorized technician. PROBLEM CHECK Nothing appears on Check all cable connections and the the screen.

  • Page 42: Preventive Maintenance

    4.2 Preventive Maintenance Following the preventive maintenance schedule allows detection and correction of minor faults before they become serious and cause equipment failure. Periodically perform the following: 1. Inspect all connecting cables for deterioration or other damage. 2. Wipe housing with a clean damp cloth. Clean P.C.

  • Page 43: General Specifications

    Specifications 5.1 General Specifications MODEL NTSC Power Source DC12V / AC24V ±10% POWER Power Consumption 12.0 Watts Image Sensor 1/4" SONY Super HAD CCD Total Pixels 811(H) x 508(V) 795(H) × 596(V) Scanning System 2:1 interlace Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) Sync.
  • Page 44 5.1 General Specifications, continued MODEL NTSC Panning Angle 360° continuous rotation Manual : Max. 150° /sec. Panning Speed Auto : Max. 375° /sec. 0° ~ 90° [Auto Flip : Off / On] Tilting Angle Manual : Max. 150° /sec. Tilting Speed Auto : Max.
  • Page 45 5.2 Dimensions TOP VIEW SIDE VIEW BOTTOM VIEW...

  • Page 46: Appendix. Pelco Protocol Function List

    APPENDIX. PELCO PROTOCOL FUNCTION LIST FUNCTION Preset No. How To. EXAMPLE PRESET PRESET 1 - 60 No.+PRESET 1+PRESET PRESET shortcut saving NOTE1 1- 60 NOTE1 NOTE1 RUN PAN ZERO PRESET No.+PRESET 34+PRESET SCAN PRESET 61 - 64 No.+PRESET 61+PRESET SCAN LEFT LIMIT NOTE1 NOTE1 NOTE1...
  • Page 48 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it 50302171A...
