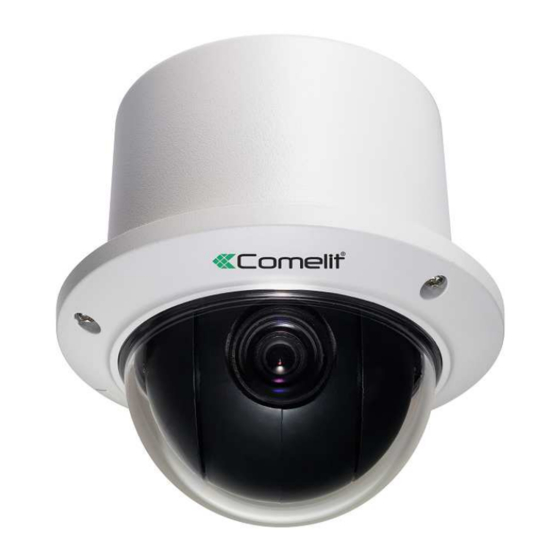

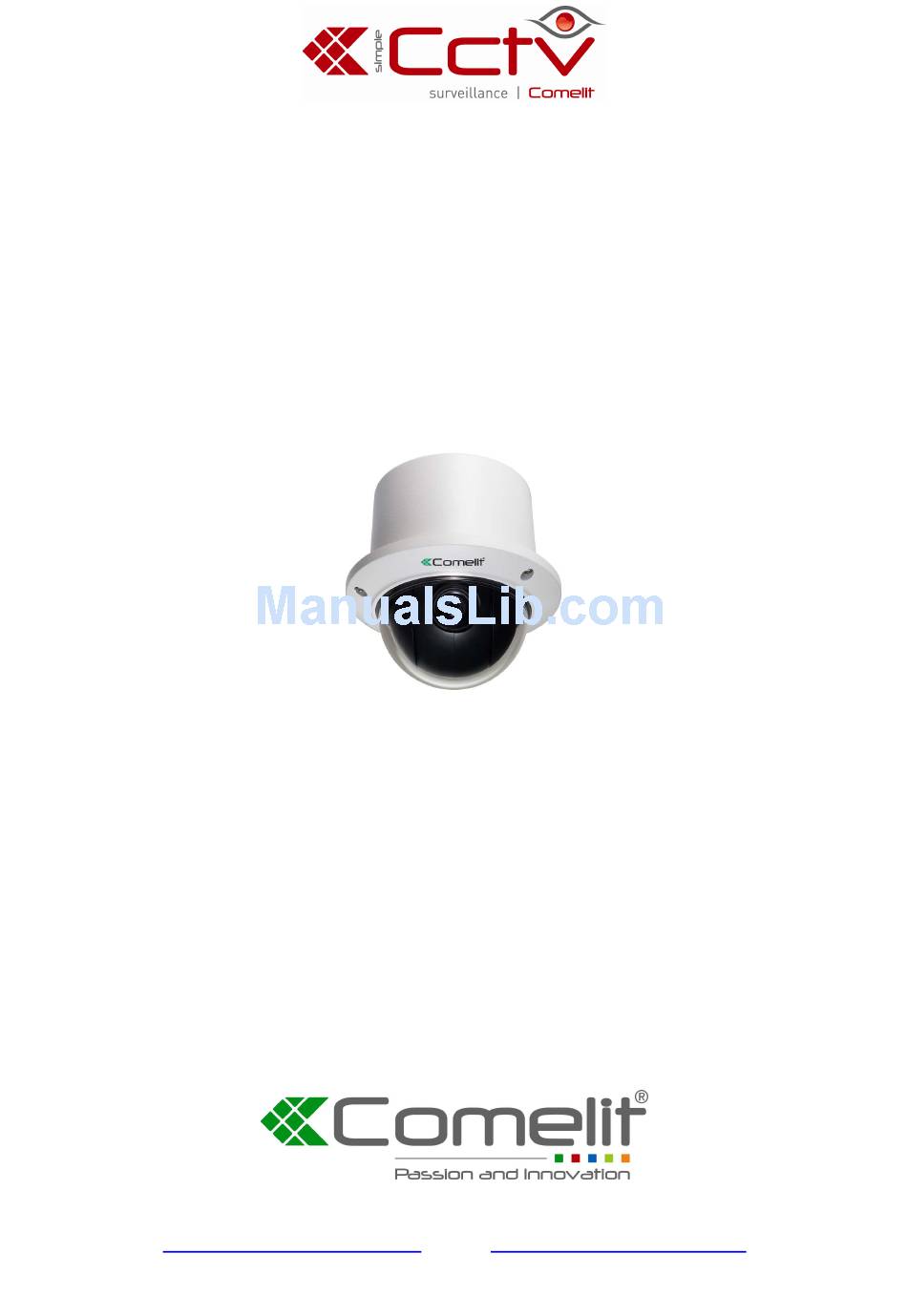

- Page 1 DOME PTZ VANDALPROOF NETWORK CAMERA ART. IPPTZ710A Please read this manual thoroughly before use, and keep for future reference Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
-
Page 3: Compliance Notice Of Fcc
Network Camera WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. -
Page 4: Important Safeguards
User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read Do not overload wall outlets and extension cords as this before the appliance is operated. can result in the risk of fire or electric shock. 2. -
Page 5: Table Of Contents
Network Camera Table of Contents Chapter 1 — Introduction..............1 1.1 In This Manual ................1 1.2 Features ................... 1 1.3 Typical Applications..............2 Remote Monitoring ..............2 Remote Recording..............2 Webcasting ................3 Chapter 2 — Installation ..............4 2.1 Package Contents .............. - Page 6 User’s Manual Alarm In ................... 29 Motion Detection ..............30 Audio Detection ............... 31 Video Blind ................32 System Event ................33 Chapter 4 — Camera Module Setup ..........35 4.1 Function ................. 36 Home Function ................ 36 Preset ..................37 Pattern..................
-
Page 7: Chapter 1 - Introduction
Network Camera Chapter 1 — Introduction 1.1 In This Manual This manual is intended for users of the network camera and includes instructions for using and managing the camera on the network. 1.2 Features This network camera compresses live video and transmits the video over Ethernet connections. The camera can be accessed, configured and managed by using the INIT (Integrated Network Installation Tool) program. -
Page 8: Typical Applications
User’s Manual 1.3 Typical Applications Remote Monitoring Remote Recording... -
Page 9: Webcasting
Network Camera Webcasting... -
Page 10: Chapter 2 - Installation
User’s Manual Chapter 2 — Installation 2.1 Package Contents Network Camera Installation CD (INIT, RASplus and iNEX Basic software, iNEX Basic User’s Manual) User’s Manuals (Camera, INIT, RASplus) Mount Kits 2.2 Illustrated Parts List Dome Cover Body Body – Top Side View Body –... -
Page 11: Cable Assembly
Network Camera 3- Lens: Optical zoom lens is installed. 4- Bottom Cover: Allows you to mount the camera to the wall or ceiling. 5- Cable Assembly: See below. 6- Wall/Ceiling Mounting Hole: Allows you to screw the camera to the wall or ceiling. 7- Dome Cover Screw Hole: Allows you to screw the dome cover to the bottom cover. -
Page 12: Factory Reset
User’s Manual NOTES: Camera and audio surveillance may be prohibited by laws that vary by region. Check the laws in your area before using this product for surveillance purposes. Peel the sheath of the wires when connecting alarm and RS485 wires and make certain the wires are not cut off by pulling out the wires. -
Page 13: Mounting
Network Camera 2.3 Mounting 1. Screw the bottom cover to the wall or ceiling with mounting screws provided with the camera. Use the mounting template sheet provided with the camera. 2. Screw the dome cover to the bottom cover. 3. Connect external devices, network and power adapter. 4. -
Page 14: Chapter 3 - Remote Setup
User’s Manual Chapter 3 — Remote Setup Remote Setup allows you to change all settings of a camera. Run the INIT program, select a on the Main screen. Select Remote Setup from the camera and click the Setup icon Setup menu and the Remote Setup screen appears. You can also display the Remote Setup screen by selecting a camera, clicking the right mouse button and selecting Remote Setup on the Main screen. -
Page 15: Quick Setup
Network Camera 3.1 Quick Setup The Quick Setup allows you to change a camera’s basic system, network, video and audio settings. 3.2 System You can change a camera’s system information, import or export all settings, and add users or groups. General Language: Choose the language to be used during remote setup. -
Page 16: Date/Time
User’s Manual Setup: Load Default Setup…: Click to return all except date/time and camera module settings to the original factory settings. You can select whether or not network settings will be included when the setup is applied. Refer to the 3.3 Network for details of the network settings. Import Setup…: Click to apply the settings saved as a .dat file format to the camera. -
Page 17: User/Group
Network Camera Automatic Sync: Check the box to automatically synchronize the time with a time server. Enter the IP address or the domain name of the time server and set the time interval for synchronization. If the time server uses the DVRNS function, selecting the Use DVRNS box allows you to enter the name instead of the IP address or the domain name of the time server. -
Page 18: Network
User’s Manual NOTES: Only users belonging to the Administrator group can make User/Group changes. The authority levels that can be assigned are: – Upgrade: The user can upgrade the software. – Setup: The user can set up the system. – Color Control: The user can control brightness, contrast, hue and saturation for cameras. –... -
Page 19: Dvrns
Network Camera Manual: Select when the camera is using a static IP address for network connection, and set up LAN parameters manually. DHCP: Select when the camera is networked via DHCP (Dynamic Host Configuration Protocol). Click the OK button, and a temporary IP address is automatically assigned to the camera. - Page 20 User’s Manual Use NAT: Check the box when the camera uses a NAT (Network Address Translation) device for network connection. Camera Name: Enter the camera name to be registered on the DVRNS server. Check whether or not the name is available by clicking the Check button. Help Desk: Choosing the OK button registers the camera on the DVRNS server.
-
Page 21: Port
Network Camera Port Admin, Watch, Record, Audio, WebGuard, RTSP: Enter port numbers for connections to the camera by using the remote programs or web browser. Remote Setup is closed after saving the changes (Admin port number only). Use HTTPS: Check the box to enhance the security of WebGuard pages by using the HTTPS protocol when running the WebGuard program. -
Page 22: Bandwidth Control
User’s Manual NOTE: When the Admin port is changed, the current settings are saved and Remote Setup will be closed. CAUTIONS: When changing the port settings, you must change the port settings on remote programs too. When using the HTTPS protocol, the ONVIF protocol might not work. Bandwidth Control You can control the network bandwidth by limiting the network bandwidth depending on the network traffic. -
Page 23: Security
Network Camera Security IP Filtering: Check the box to use the IP filtering function. You can allow or block connections to the camera by designating IP addresses. Add: Click the button to add IP addresses to the Allow List or Deny List to allow or block connection to the camera. -
Page 24: Ieee 802.1X
User’s Manual IEEE 802.1X Check the IEEE 802.1X box to use the IEEE 802.1X network connection authentication function. Certificates: Uploads a certificate or private key for network connection depending on the authentication type. Entering a private key password might be required depending on the authentication type. -
Page 25: Video
Network Camera 3.4 Video You can set up camera setting and features for streaming, webcasting and MAT. Camera Assign an RS485 ID to the PTZ camera. NOTE: When you control a PTZ camera via RS485 connection, the control device should be connected to the RS485 port properly. -
Page 26: Streaming
User’s Manual Streaming Primary, Secondary: The camera supports dual stream video. The secondary stream setting is dependent on the primary stream setting. When in the dual stream mode, the resolution and quality settings of the secondary stream will be used during event actions (FTP upload and image attachment to Emails). -
Page 27: Webcasting
Network Camera Webcasting The camera can stream live video from the camera to a website. Copy the HTML Code displayed on the screen and paste it in your web page code. NOTE: To use the webcasting service, you must check the Allow Anonymous Login option during 3.2 System –... -
Page 28: Mat
User’s Manual Check the MAT box to use the MAT (Motion Adaptive Transmission) function for video streaming and recording. Sensitivity: Set the motion sensitivity. The higher the number is, the more sensitive it is. Inactivity Period: Set the inactivity period. The camera will transmit or record images in Frame Rate set below until any change is detected after the inactivity period when no motion is detected during the preset inactivity period. -
Page 29: Audio
Network Camera 3.5 Audio You can set up audio in. Audio In Audio CODEC: Select an audio codec. Input: Check the box to enable audio in and select the proper audio-in device. You can also adjust the volume. 3.6 Event Action You can set up event actions to be taken when the camera detects events. -
Page 30: Alarm Out
User’s Manual Alarm Out Check the Alarm Out box to activate alarm out. Dwell Time: Select the alarm-out dwell time. An alarm out is activated for the preset dwell time after detecting an event. Schedule: Set up the period to enable alarm out. An alarm out can be activated only during this period. -
Page 31: Email
Network Camera Email Check the Email box to send an email. SMTP Server, Port: Enter the IP address or domain name and port number of the SMTP server attained from your network administrator. You can use the domain name instead of the IP address if you set up the DNS server when setting up the network. -
Page 32: Remote Callback
User’s Manual Remote Callback Check the Remote Callback box to send a callback message to remote systems (Not supported for the WebGuard program). IP Address, Port: Enter the IP addresses and port numbers of the remote systems to send a message. Retry: Select the number of times to try sending a message if it fails to send. -
Page 33: Ftp Upload
Network Camera FTP Upload Check the FTP Upload box to upload event detected images in JPEG file format to an ftp server. FTP Server: Click the Add button to register an ftp server. Clicking the Remove button deletes the registered ftp server. When an event is detected, the event detected images will be uploaded in JPEG file format to the ftp server registered as a primary server. -
Page 34: Event
User’s Manual Upload Frequency: Displays only when the upload type is set to Always. Set up the upload rate, and the preset number of images will be uploaded to the ftp server during the preset time. Upload I image per: Displays only when the upload type is set to Event. Set up the upload rate. -
Page 35: Alarm In
Network Camera Alarm In Check the Alarm In box to set up an alarm-in event. When the camera senses an input on the alarm input connector, it considers it as an event. Title: Enter the alarm-in device’s name. Type: Select the alarm-in type. Event Action: Check the box for each action the camera will take whenever it detects an alarm-in event. -
Page 36: Motion Detection
User’s Manual Motion Detection Check the Motion Detection box to set up a motion detection event. When the camera detects a motion in a configured motion detection zone, it considers the motion as an event. Sensitivity: Set the motion sensitivity for daytime and nighttime independently. Minimum Portion: Adjust the minimum percentage of detection blocks that must be activated in order to be considered as a motion event for daytime and nighttime independently. -
Page 37: Audio Detection
Network Camera Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program). FTP Upload: Check the box to upload images to an ftp server. Move PTZ to: Select the desired preset number that you want the camera to move to. You must set preset locations for the camera using remote programs or a web browser. -
Page 38: Video Blind
User’s Manual Alarm Out: Check the box to trigger an alarm-output signal. Send Email: Check the box to send an email. Selecting Image Attachment attaches an event detected image file (.JPG) to the email. Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program). -
Page 39: System Event
Network Camera Send Email: Check the box to send an email. Selecting Image Attachment attaches an event detected image file (.JPG) to the email. Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program). FTP Upload: Check the box to upload images to the ftp server. - Page 40 User’s Manual Send Email: Check the box to send an email when there is no change of alarm-in event status. Remote Callback: Check the box and select the remote systems to send a message when there is no change of alarm-in event status (Not supported for the WebGuard program). NOTE: You must properly configure the Email and Remote Callback settings to send an email or a message.
-
Page 41: Chapter 4 - Camera Module Setup
Network Camera Chapter 4 — Camera Module Setup Device Menu allows you to change camera module settings by using remote programs (RASplus or iNEX Basic). Run a remote program and enter the PTZ mode. Click the Advanced Menu icon, and the PTZ Advanced Menu screen appears. Speed: Allows you to select the speed of pan, tilt and zoom operation. -
Page 42: Function
USer’S Manual MAIN MENU FUNCTION ALARM SCREEN CAMERA SETUP EXIT MENU NOTE: The ALARM menu function iS not Supported . 4.1 Function The FUNCTION menu sets up functions of camera movement such as Preset, Pattern, Scan or Tour. MAIN MENU FUNCTIONS FUNCTION HOME FUNCTION... -
Page 43: Preset
Network Camera Preset The menu sets up the Preset function which moves the camera to the preset position. I. Enter the menu as follows: FUNCTIONS PRESET HOME FUNCTION NO. F I B TITLE xxxxxxxxxxxx PRESET 00I A A F ----------------- PATTERN 002 MMO -----------------... -
Page 44: Scan
USer’S Manual FUNCTIONS PATTERN SETUP HOME FUNCTION TITLE 001 : PATTERM01 PRESET 002 : PATTERN 02 PATTERN 003 : – – SCAN 004 : – – TOUR TOTAL RECORDS : 013 EXIT SAVE AND EXIT NO.: Indicates a Pattern number. Selecting a number in the list and clicking the Move to Origin button deletes the function set to the number. -
Page 45: Tour
Network Camera 2. Enter the title by using the Zoom icon. 3. Set up the speed by using the Zoom icon. 4. Enter the Edit mode by clicking the Zoom icon to set up a starting position. 5. Move to the starting position of the scan. 6. -
Page 46: Screen
User’s Manual NOTES: All functions should be preset before being referred to in the tour menu. Otherwise functions won’t be selectable when setting up tour. The Tour functions in the second level Tour will be ignored when called by the first level Tour. -
Page 47: North Direction
Network 0amera S0REEN MENU PRIVA0Y ZONE SETUP LANGUAGE TITLE METHOD PRIVA0Y ZONE MASK NORTH DIRE0TION: 000.0 V.OFF ZONE TITLE NONE - - - - - 0AMERA TITLE : DOME NONE - - - - - OSD DISPLAY NONE - - - - - EXIT MENU NONE - - - - -... -
Page 48: Zone Title
USer’S Manual 3. Save the current direction by clicking the Focus icon. 4. Move to the SAVE AND EXIT menu and click the (Direction) icon. Zone Title The menu sections a view angle and names the sectioned angle. The name will be displayed on the screen in the corresponding sectioned angle. -
Page 49: Osd Display
Network Camera SCREEN MENU LANGUAGE PRIVACY ZONE NORTH DIRECTION: 000.0 ZONE TITLE CAMERA TITLE : DOME OSD DISPLAY EXIT MENU 2. Enter a title by using the Direction or Zoom icon. Clicking the Enter or ESc button in the PTZ Advanced Menu screen saves or cancels the entering. OSD Display The menu enables or disables OSD display. -
Page 50: Camera
USer’S Manual 4.3 Camera The Camera menu sets up camera related settings. MAIN MENU CAMERA MENU FUNCTION FOCUS CONTROL : AUTO ALARM WB CONTROL SCREEN EXPOSURE SETUP CAMERA BACK LIGHT : OFF SETUP SHARPNESS : 31 EXIT MENU DIGITAL ZOOM : OFF NIGHT SHOT CAMERA INITIALIZE... -
Page 51: Setup
Network Camera 4.4 Setup The Setup menu sets up screen related settings. MAIN MENU SETUP MENU FUNCTION FLIP FUNCTION : ON ALARM PIT SPEED : FAST SCREEN PRESET FREEZE : OFF CAMERA PANNING RANGE: SETUP TILT LIMIT: ON EXIT MENU CALIBRATION LINE LOCK CONTROL FACTORY DEFAULT... -
Page 52: Chapter 5 - Webguard
User’s Manual Chapter 5 — WebGuard You can monitor live video images from the camera on the web browser by using the WebGuard program. Computer system requirements for using WebGuard are: ® ® ® Operating System: Microsoft Windows XP x86 (32 Bit) (Service Pack 3), Microsoft ®... - Page 53 Network Camera NOTES: There might be a problem with the bottom of the WebGuard page being cropped caused by the address or status bars in Microsoft Internet Explorer 7.0. In this situation, it is recommended that websites open windows without address or status bars by changing Internet setting.
- Page 54 User’s Manual Log Out: Click to log out of the WebGuard program. Version: Position the mouse pointer on the WebWatch logo to see the WebGuard program version. Information: The Information window displays the login information of WebGuard. Full Display: Clicking the button displays the video in full screen. Pressing the Esc button on a keyboard returns to the previous screen.
- Page 55 Network Camera NOTES: The image adjustment for the monitoring screen works only in the pause mode. A camera name change in the Web Watch mode does not affect the camera name set up on the camera. Leaving the Camera Title blank causes the camera name set up on the camera to display.
-
Page 56: Appendix
User’s Manual Appendix Map of Screens (Remote Setup) -
Page 57: Troubleshooting
Network Camera Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Confirm that the camera has power. No Live Video Check network connections on your PC and a camera. Check if there is dust or dirt on the lens and clean the lens with a clean cotton cloth or brush. - Page 58 32°F to 122°F (0°C to 50°C) Operating Humidity 0% to 90% Power Supply 12 VDC Power Consumption Max. 8.4W Approval FCC, CE, IP66 Specifications are subject to change without notice. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it V1.2...
