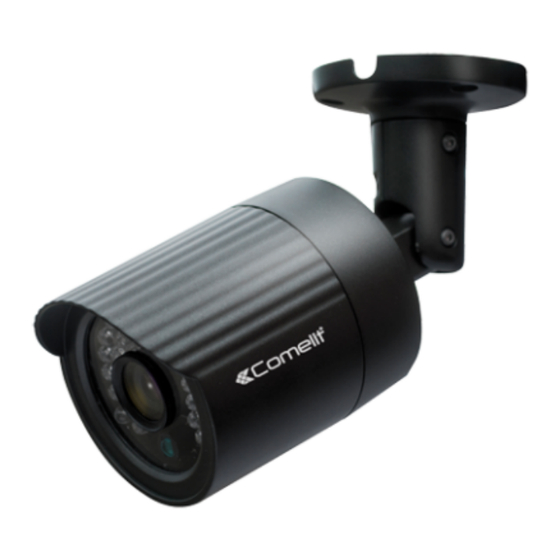

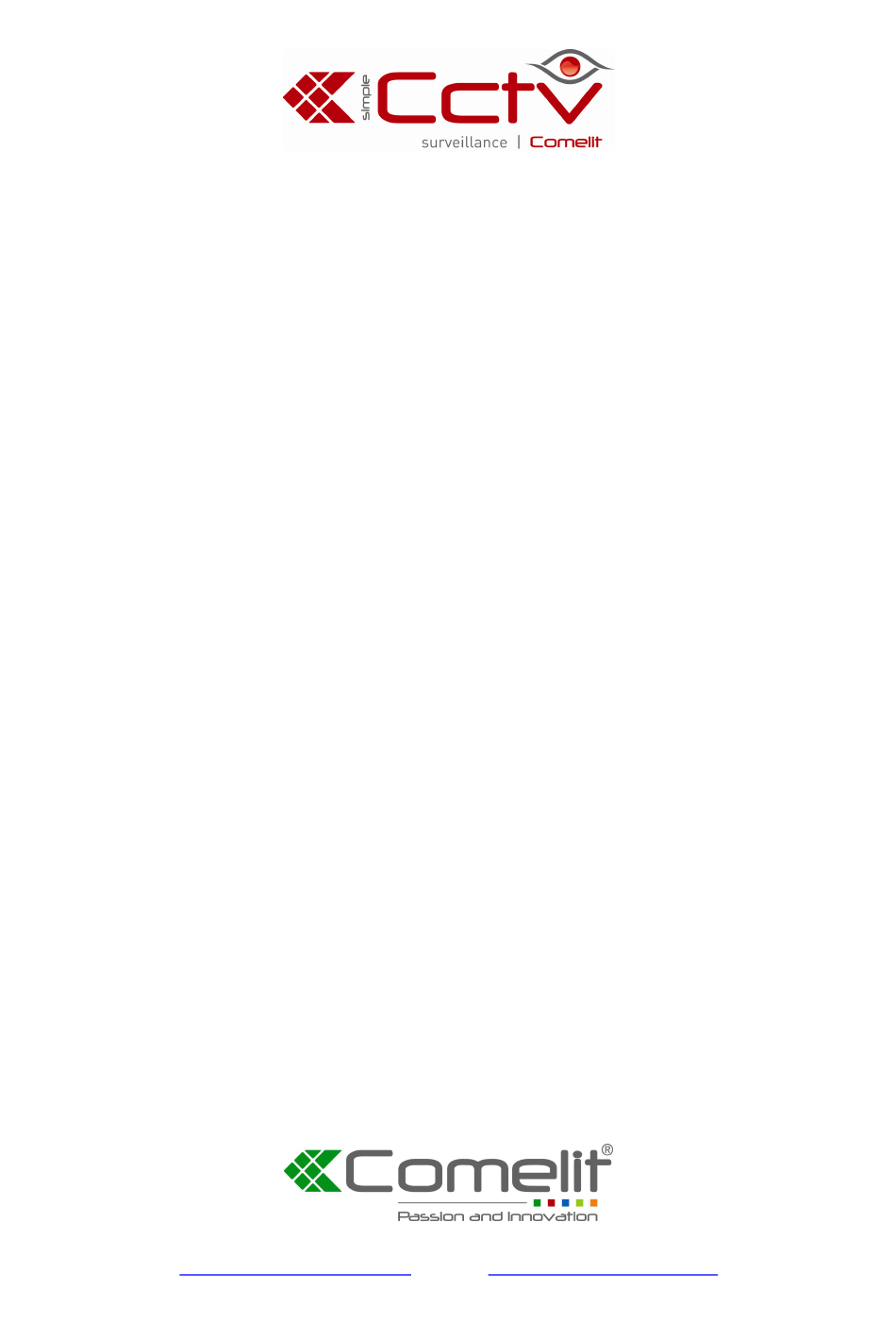

- Page 1 CAMERAS IP START SERIES ART. IPCAM101A IPCAM102A IPCAM152A IPCAM162A IPCAM166A IPCAM168A Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
-
Page 2: Table Of Contents
Contents 1. Login Interface ..........................3 2. Preview ............................4 2.1 Open/Close Preview ......................5 2.2 Full-screen Preview ......................5 2.3 Electronic Zoom-in ......................5 2.3 PTZ Control ........................6 3. File Management........................... 8 3.1 Search ..........................8 3.2 Review Playback Image ...................... 8 3.3 View Preview Image ...................... - Page 3 4.6.1 System Update ....................... 23 4.6.2 Auto Reboot ......................23 4.6.3 Stream Info ......................23 4.6.4 HD Disk ......................... 23 4.6.5 Restore ........................23 4.6.6 Local Setting ......................24 5. Exit .............................. 24...
-
Page 4: Login Interface
Statement The instruction is for guidance only. Detailed information is in accordance with the product. The instruction may include some technical inaccuracies or typographical error thought it is prepared with our every effort. The product or procedures described in the instruction may be changed or updated at any time without prior notice. Screenshots used in the instruction are from the other machine and are only for indications and explanations. -
Page 5: Preview
If it cannot be installed automatically, you can choose to manually install it. Then, you can: Input user name: admin (default setting) Input password: null (default setting) Select language: Chinese or English Click [Submit], as shown in the following figure: 2. -
Page 6: Open/Close Preview
Click to open all the equipment 2.1 Open/Close Preview Click to open all the sub stream Click to open a single device Click to open a single device sub stream 2.2 Full-screen Preview Click the full-screen icon in the lower right corner to preview in full screen. In the preview window, right click (or Esc key) to exit from full screen display. -
Page 7: Ptz Control
2.3 PTZ Control PTZ control: you can use eight directional keys to rotate front-end devices, and AUTO indicates auto-rotation. Zoom in/out: to adjust degree of zooming in/out Focus: to adjust size of focus Aperture: to adjust size of aperture Speed: use the slider to regulate the PTZ speed Bright: to adjust the brightness of the screen Contrast: to adjust the contrast of the screen Saturation: to adjust the saturation of the screen... - Page 8 [Call a cruise] Call a cruise by selecting a cruise number from the "cruise" drop-down list and then clicking " " button. [Delete a cruise] Delete a cruise by selecting a cruise number from the "cruise" drop-down list and then clicking "...
-
Page 9: File Management
3. File Management 3.1 Search Select the start time, and click the button, the lower part displays searched images and videos (double click to display files) Note: You can change video or image storage path, which will be detailed later. 3.2 Review Playback Image To review playback images under the C:\Program Files\PLAYBACK directory, double click the file, as shown in the following figure:... -
Page 10: View Preview Image
(Note: the front end device should support SD card storage to enable this function) 3.3 View Preview Image To review preview images under the C:\Program Files\PREVIEW directory, double click the file, as shown in the following figure:... -
Page 11: View Backup File
3.4 View Backup File To review playback video files under the C:\Program Files\BACKUP directory, double click the file, as shown in the following figure: playback speed stop slow fast frame voice capture start (Note: the front end device should support SD card storage to enable this function) 3.4 View Images in File Management To view files in file management under the C:\Program Files\FILE directory, double click it. -
Page 12: Rs232
To view and edit basic information of the device 4.1.2 RS232 To set RS232 parameters 4.1.3 Decoder To set RS485 parameters (combined with PTZ) 4.1.4 DST Setting... -
Page 13: Channel Parameters
DST setting: to enable and set DST parameter 4.2 Channel Parameters 4.2.1 Display Settings 1) Channel No.: to change a channel No. 2) Channel Name: to modify the name for a specific channel 3) Time Format: to change a time format for a specific channel 4) Date Format: to change a date format for a specific channel 5) OSD location: to set the name and time for a specific channel 6) Parameter adjustment: to adjust brightness, contrast and saturation for a specific channel... -
Page 14: Video Parameters
(Note: change of "video settings" will directly change front-end Network camera parameters.) 4.2.3 Video Parameters Set "Video Parameter" for front end devices 1) Current channel: select a different channel number (the webcam has only one channel) 2) Day/night auto switch: externally triggered, auto, color, black/white, day/night switching (0-30) is completed in 3 seconds by default. -
Page 15: Motion Detection
1) Channel No.: to change a channel No. 2) Enable: check Enable/Disable 3) All day: if it is checked, it is recorded all day 4) Week: select a different week day 5) Time section: you can set different types of records in 8 sections for a day 6) Week copy: you can copy set parameters to other weeks 7) Pre-record: set the pre-record time to trigger event record 8) Post-record: set the post-record time to trigger event record... -
Page 16: Video Tampering
Settings on motion detection area: Check "Drawing" to select the area to be detected Click "Clear" to clear the designated area for the current channel Sensitivity: the higher the sensitivity is, the better the motion detection effect is. Linkage: Alarm on monitor: view alarm information on the monitor Audio warning: the device gives warning sound Upload to center: view alarm information in the control center Email linkage: after an alarm is triggered, it will send an email to the designated email address... -
Page 17: Video Mask
Arm schedule: You can set 8 sections of arm schedule, and then copy them to each week, as shown in the following figure: Mask set: Check "Drawing" to set the area giving mask alarm, and adjust the sensitivity, as shown in the following figure: Linkage: Choose a linkage mode if an alarm is triggered, as shown in the following figure: 4.2.7 Video Mask... -
Page 18: Network Parameters
Video Mask Effect 4.3 Network Parameters 4.3.1 Network Settings 1) NIC type: select a NIC type as required. 2) IP address: input IP address. 3) Auto config.: if this is enabled, the device will auto gain a valid IP address according to DHCP of the router. 4) Device port: input the device port number. -
Page 19: Ddns Settings
12) Alarm host IP: input the IP address of the alarm host. 13) "Alarm host port": input the port No. of the alarm host. 14) "Enable PPPOE" : check it to enable this feature. ·Input PPPOE user name. ·Input device dynamic address. ·Input PPPOE password. -
Page 20: Settings
Outbox settings: Email address: input the address of the outbox Password: input the password of the outbox Confirm password: confirm the password Attachment: capture when attachment alarms Identity verification: verify before sending an email Inbox setting (Note: you can set three receiving emails at most) Sending server settings: Sending interval: set the interval time to send an email SMTP server: set the address of the smtp server for the sending email... -
Page 21: Wifi Settings
4.3.6 WiFi Settings WiFi: connect to an external WiFi device, enable WiFi features and click refresh, and the device will automatically search the wireless network. Input related parameters and click "Save", as shown in the following figure: 4.4 Alarm & Exception 4.4.1 Alarm Input 1) Select the alarm No. -
Page 22: Alarm Output
4.4.2 Alarm Output 1) Select the alarm No. for alarm output 2) Select the delay for outputting an alarm (when the alarm finishes, the alarm outputs in the delayed time) 3) Alarm schedule 4) Copy set parameters to the related week day 4.4.3 Exception Setting Including: HDD full, HDD fault, network broken, IP address conflict, illegal access and video signal exception, as shown in the following figure. -
Page 23: Online User Display Current Online User Information
Admin is the administrator (default) Default indicates general users with permissions authorized to default users.(default) Click [Add] to add a user, as shown in the following figure: Click [RightsPermission] to assign permission to the new user, as shown in the following figure: Click [Delete] to delete the new user 4.5.2 Online User display current online user information... - Page 24 4.6.1 System Update Click the related update package to locate it and click "Update". 4.6.2 Auto Reboot Selecting "maintenance mode" and "maintenance time", the device will reboot according to the designated mode. 4.6.3 Stream Info To view information about main stream and sub stream of current channels. 4.6.4 HD Disk To view its capacity and free space, as well as to format it.
- Page 25 Playback capture: to modify the path of the playback capture Backup capture: to modify the path of the backup capture File capture: to modify the path of the file capture 5. Exit Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
