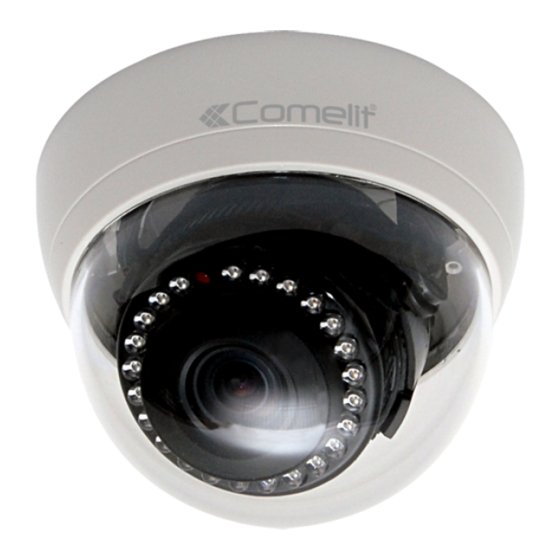

Summary of Contents for Comelit IPCAM720A
- Page 1 Quick User Guide Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail : export.department@comelit.it...
- Page 2 3. Installation Guide 3. The Smart Manager Installation Software 4. Accessory Kit 4. The Comelit RAS Solution User’s Manual 5. Template Sheet 5. The Comelit RAS Solution Software Check your package to make sure that you received the complete system, including all...
-
Page 3: Installation
PC, while a direct cable is used for connection to a hub/switch Micro SD memory slot Insert the Micro SD memory card up to 32GB. SD memory card SD memory card [IPCAM720A] [IPCAM700A] [IPCAM722A] SD memory card Micro SD card slot... - Page 4 Connecting the Power Connect the DC 12V power adaptor to the camera. [IPCAM720A] [IPCAM700A] [IPCAM722A] [IPCAM702A] [IPCAM727A] Name Description Power Cable Cable for Power source (DC 12V) Ethernet Cable Cable for Ethernet (POE)
- Page 5 Network Connection (Zero Configuration Networking) IP cameras, NVR, and COMELIT RAS Solution support ZERO configuration. Installation is simple and convenient. No need any network setting. If there is no DHCP to assign the IP address, it will search the computer IP address or NVR which is running in the LAN. And then it will set the IP address automatically.
-
Page 6: Network Connection (Ip Assignment)
Network Connection (IP assignment) When a camera is connected without Zero configuration function to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager” utility on the CD. (Default IP 192.168.30.220) 1. -
Page 7: Operation
2. OPERATION The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google® Chrome® with Windows. Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. How to Access from a browser 1. -
Page 8: Resetting To The Factory Default Settings
4. Release the Reset button. 5. The network camera resets to factory defaults and restarts after completing the factory reset. Reset Button [IPCAM720A] 1. Switch off the Network Camera by disconnecting the power adapter. 2. Remove the front cap of the camera. - Page 9 1. Switch off the Network Camera by disconnecting the power adapter. 2. Press and hold the Reset button while reconnecting the power. 3. Keep the Reset button pressed during about 2 seconds or more than. 4. Release the Reset button. 5.
-
Page 10: More Information
1. Switch off the Network Camera by disconnecting the power adapter. 2. Press and hold the Reset button with a straightened paperclip while reconnecting the power. 3. Keep the Reset button pressed during about 2 seconds or more than. 4. Release the Reset button. 5. - Page 11 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail : export.department@comelit.it...
