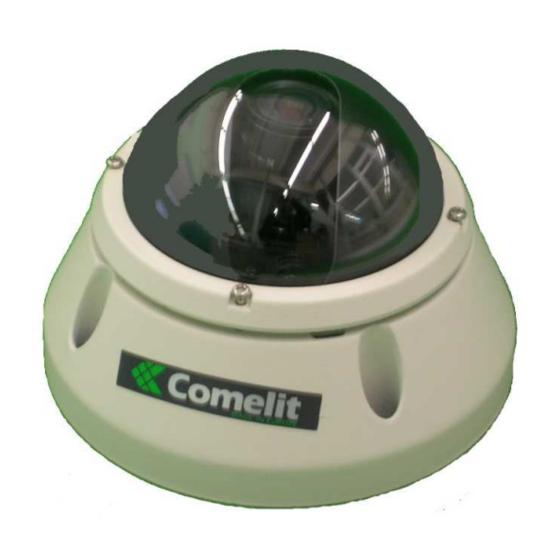

1/3” CCD OUTDOOR VANDALPROOF DOME HOUSING DAY & NIGHT CAMERA, 12 V DC ART. 40646 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.eu e-mail:export.department@comelit.it...
WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION: Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
FCC COMPLIANCE STATEMENT. FCC INFORMATIONS: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USE AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT ISTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO...
Page 4
READ AND KEEP THESE INSTRUCTIONS Please read this manual thoroughly before use and keep it for future reference. CLEANING Unplug this equipment from the wall outlet before cleaning it. Use a mild household detergent, never use strong solvent. Clean the unit with a slightly damp soft cloth. ATTACHMENTS Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.
Page 5
REPLACEMENT PARTS When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may results in fire, electric shock or other hazards. SAFETY CHECK Upon completation of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.
Page 6
TABLE OF CONTENTS INTRODUCTION CAMERA CONNECTIONS BASIC CAMERA INSTALLATION INSTALLING & ADJUSTING CAMERA MODULE BASE INSTALLATION STRUCTURE OF THE SETUP MENU OPERATING CAMERA LENS ADJUSTMENT DC AUTO IRIS L E N S TROUBLESHOOTING AND MAINTENANCE SPECIFICATIONS EXTERNAL DIMENSIONS...
INTRODUCTION The camera provides high-quality images using SONY CCD tecnology especially designed for closed-circuit (CCTV) and security surveillance applications. Features: High resolution and high performance 1/3” SONY Super HAD CCD Technology Excellent picture quality 540 lines (color) of resolution 0.5 lux (color) and 0.01 lux (B/W) @ F.1.2 Sensitivity Auto electronic shutter [1/60(1/50) ~ 1/120,000] and manual electronic shutter modes OSD (On Screen Display)
CAMERA CONNECTIONS 1. Lens : 4-9mm D&N A/I varifocal lens for wide area monitoring 2. Power : 12V DC / 24V AC +/-10% 50/60Hz +/-1Hz input (red wire +, white wire -) Use certified / listed class 2 power supply transformer only.
BASIC CAMERA INSTALLATION Unpack and identify the followings parts from the product carton: A. Camera B. Mounting screw C. Instruction manual (this manual) D. Torx screw driver Note : make sure the power is turned off when connecting the power adaptor cable To mount the board camera on the camera mount bracket, place the 4 board camera supports on the 4 slot holes near the front and rear of the camera mount...
INSTALLING & ADJUSTING CAMERA MODULE Use the following drawings to install the camera module to the housing. 3 axis camera construction. Camera lens can be mov ed horizontally or v ertically and freely swiv eled to any angle.
BASE INSTALLATION CAUTION: when installing the camera outdoors, the following instructions must be followed closely 1. Loosen the four Torx screws on the housing cover. DO NOT remove the screws from the cover. 2. Adhere the drilling guide label on the proper location. 3.
STRUCTURE OF THE SETUP MENU EXPOSURE -LENS -BRIGHTNESS -BACKLIGHT -SHUTTER -AGC -SENSE UP WHITE BAL -WB MODE -RED CONT -BLUE CONT -PUSH AUTO DAY/NIGHT -D/N MODE -AUTO LEVEL -FILTER DLY -SENSOR IN MOTION -DETECT MODE AREA -DETECT AREA -SENSITIVITY -ALARM TIME PRIVACY -AREA -MASK...
OPERATIING CAMERA <SETTINGS> Settings can be made using the 5 buttons located at the base of the camera: 1) [ENTER] ON or OFF OSD menu 2) [UP] / [DOWM] UP or DOWN of cursor 3) [LEFT] / [RIGHT] SUB MENU ON or Decision *when OSD menu is OFF and PAN/TILT is ON, operate by [UP], [DOWN], [LEFT] e [RIGHT] for PTZ.
Page 15
<EXPOSURE> Press the [LEFT] or [RIGHT] button to access the menu. EXPOSURE ▶ LENS D C/E L C BRIGHTNESS 0~60 BACKLIGHT ON/O F F SHUTTER 1/60(1/50)~1/ 1 0 0 0 0 OFF/ LO W / MI D / H I G H OFF/x2 ~x 32 SENSE UP RETURN...
<WHITE BAL> Press the [LEFT] or [RIGHT] button to access the menu. WHITE BAL ▶ WB MODE ATW / AWC / MANUAL RED CONT 0~127 0~127 BLUE CONT ON/OFF PUSH AUTO RETURN 1) WB MODE - ATW this mode can be used within the colour temperature range 2.300°...
Page 17
<DAY/NIGHT> Press the [LEFT] or [RIGHT] button to access the menu. DAY/NIGHT ▶ D/N MODE AUTO/DAY/NIGHT/EXT AUTO LEVEL 0~18 FILTER DLY 4~10 SEC SENSOR I N NOT USE / NO / NC RETURN 1) D/N MODE this camera has a function which automatically changes to - AUTO the appropriate mode for daytime or night-time.
Page 18
<MOTION> Press the [LEFT] or [RIGHT] button to access the menu MOTION ▶ ON/OFF DETECT MODE +… DETECT AREA SENSITIVITY 1~60 SEC ALARM TIME RETURN 1) DETECT MODE ON e OFF can be selected. * turning on becomes invalid while displaying OSD and becomes effective only after setup DETECT AREA.
Page 19
<DETECT AREA> Press the [LEFT] or [RIGHT] button to access the menu. cursor inactive active - A thick gray shows the cursor. - When it is transparent, the area becomes active. * Default is all transparent, it is all active. - When it is light gray, the area becomes inactive.
Page 20
<PRIVACY> Press the [LEFT] or [RIGHT] button to access the menu PRIVACY ▶ AREA MASK ON/OFF LEVEL 0~15 3~124/ 6~150 DOWN 5~126/ 8~152 LEFT 0~187/ 0~185 RIGHT 2~189/ 2~187 RETURN 1) AREA 1 to 4 can be selected. 2) MASK ON or OFF can be selected.
Page 21
<OPTION> Press the [LEFT] or [RIGHT] button to access the menu. OPTION +… ▶ TITLE POSI/NEGA NEGA/POSI 0~15 SHARPNESS NORMAL/MIRROR/VERTICAL/RO MIRROR TATE OFF/ON1~ON8 ZOOM ON/OFF PAN/TILT 0 ~ 524 / 0 ~ 624 PHASE RETURN 1) TITLE TITLE is displayed. 2) NEGA/POSI NEGA or POSI can be selected.
Page 22
<TITLE> Press the [LEFT] or [RIGHT] button to access the menu. TITLE BS POS END ABCDEFGH I J KLM NOPQRSTU VWXYZ abcdefghi j k l nopqrs t uvwxyz 012 3 456 78 9 : ; . * / + - ~ &...
Page 23
<DISPLAY> Press the [LEFT] or [RIGHT] button to access the menu. DISPLAY ▶ TITLE ON/OFF MOTION DET ON/OFF RETURN 1) TITLE ON or OFF can be selected. 2) MOTION DET ON or OFF can be selected. 3) RETURN return to MAIN menu. Video out check Video out Monitor di test...
LENS ADJUSTMENT Filed of view: adjust setting from Tele (T) to Wide (W) field of view. Focus: adjust lens focus from Near (N) to infinity (∞). Focus Field of view DC AUTO IRIS LENS Image size 1/3" CCD Focal lenght 4.0 - 9.0 mm Aperture ratio 1 : 1.6...
Page 25
TRUBLESHOOTING If you experience difficulties operating your camera, refer to the following. If the guidelines do not enable you to solve the problem, contact an authorized technician PROBLEM CHECK Nothing appears on Is the camera connected with the the screen monitor? Is there power to the monitor? The image on the screen...
SPECIFICATIONS MODEL NTSC Power source 12V DC / 24V AC Power Power consumption 3.5 W Image sensor 1/3" SONY Super-HAD CCD Total number of pixels 795(H) x 596(V) 811(H) x 508(V) Scanning system 2:1 interlace Scanning frequency 15,734KHz(H) x 59,94Hz(V) 15,625KHz(H) x 50Hz(V) Sync.
EXTERNAL DIMENSIONS Dimensions 94.5 51.5 Unit: mm 2.6 L x 1.65 W x 1.65 H inch Maximum camera and lens size 6.5 L x 4.2 W x 4.2 H cm Window size 0.1 inch; 2.5mm thick impact resistant P.C (LEXAN) 3.46 inch;...
