Comelit 40861 Manual

Color ccd, autofocus, day & night, zoom camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

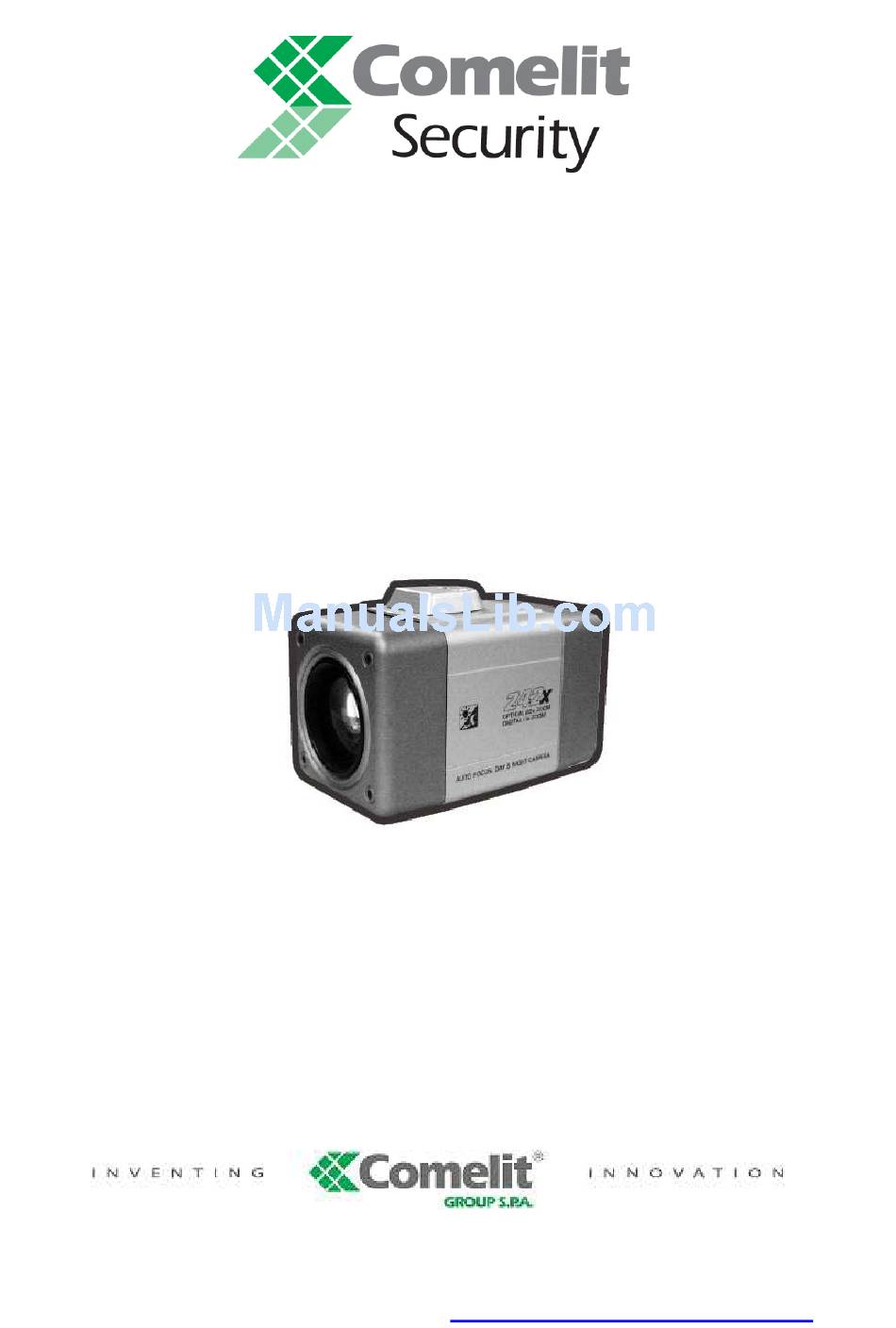

COLOR CCD, AUTOFOCUS, DAY & NIGHT,

ZOOM CAMERA

ART.40861
Please read this manual thoroughly before use
and keep it for future reference.
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
http://www.comelit.it – E mail:
export.department@comelit.it

Advertisement

Table of Contents
loading

Related Manuals for Comelit 40861

Summary of Contents for Comelit 40861

  • Page 1: Zoom Camera

    COLOR CCD, AUTOFOCUS, DAY & NIGHT, ZOOM CAMERA ART.40861 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...

  • Page 2: Limitation Of Liability

    ISSUE 3 - OCTOBER 2007 LIMITATION OF LIABILITY THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH CHANGES.

  • Page 3: Warnings And Cautions

    WARNINGS AND CAUTIONS: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION: CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).

  • Page 4: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 5: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 6 THIS PAGE INTENTIONALLY LEFT BLANK. - 3 -...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION 1.1 THE CAMERA FEATURES 2. SYSTEM INSTALLATION 2.1 PACKAGE CONTENTS 2.2 OPERATION REQUIREMENTS 3. PARTS NAME & FUNCTION 4. CONNECTION 4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL 4.2 EXTERNAL DAY/NIGHT CONTROL 4.3 RS-485 CONNECTION 4.4 EXTERNAL LENS CONTROL 4.5 EXTERNAL A/D KEY CONTROL 5.

  • Page 8: Introduction

    Introduction The Day & Night AutoFocus Zoom color DSP Camera is designed especially for closed circuit television (CCTV) and security surveillance applications. 1.1 THE CAMERA FEATURES High performance SONY 1/4" Super HAD CCD 242x zooming capability (Optical : 22x / Digital : 11x) Ultra Sensitivity Minimum illumination of 0.001 lux @F1.6 (low shutter) Excellent picture quality Various picture effects...

  • Page 9: System Installation

    System Installation Installation of the camera must be performed by qualified service personnel in accordance with all local national electrical and mechanical codes. Perform the following steps to install the camera. 2.1 PACKAGE CONTENTS Camera Instruction Manual 12 pin interface cable A/D Remote Controller (option) 2.2 OPERATION REQUIREMENTS <...

  • Page 10: Parts Name & Function

    Parts Name & Function Carefully remove the contents from the box, and verity that nothing was damaged in shipment. 4 Point - Drilling Position 502162 3A 1 – Day & Night Zoom lens Integrated lens with 22x optical and 11x digital zoom 2 –...
  • Page 11 9 – Tele/Wide button Zoom control: push Wide for wide angle views or Tele to zoom in 10 – Menu button Menu functions in the OSD display can be controlled when the OSD menu is activated 11 – Near/Far button Press the Near side to focus on near objects or the Far side to Focus on far objects.

  • Page 12: Connection

    Connection CAUTION : Do not connect the power cable until all other connections have been completed. If you complete the whole connection of cameras, then you have to cut the extra cable. 4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL...

  • Page 13: External Day/Night Control

    4.2 EXTERNAL DAY/NIGHT CONTROL Connect to an external sensor to receive day/night detection signals. External sensor switch ON/OFF DAY/NIGHT DAY : OPEN EXT-IN (RED) NIGHT : CLOSED COLOR mode: 0V output EXT-OUT B/W mode: 5V output EXT-IN (GRAY) EXT-OUT (WHITE) *Note: To validate the sensor inputs, select menu Effect - B/W - EXT 4.3 RS-485 CONNECTION...

  • Page 14: External A/D Key Control

    4.5 EXTERNAL A/D KEY CONTROL External Controller Circuit Schematic...

  • Page 15: Camera Adjustment

    Camera Adjustment 5.1 OSD MAIN SCREEN AF 22X AEAUTO NORMAL F1.6 84X CAM 01 Camera title Status of the auto exposure Status of the auto white balance Status of the focus mode Status of the zoom position, brightness, or sharpness Status of the shutter speed Status of the iris Status of the AGC (auto gain control)

  • Page 16: Main Menu

    5.2 MAIN MENU <MAIN MENU> TITLE DISPLAY/ALARM CAM SET EFFECT PRESET 5.2.1 WB (White Balance) <WB> INDOOR OUTDOOR MANUAL R/B WAWB Auto white balance mode. INDOOR Indoor white balance mode. OUTDOOR Outdoor white balance mode. MANUAL Manual mode. You can change R and B Gain manually. For changing R and B gain, use "NEAR"...
  • Page 17 5.2.2 AE (Auto Exposure) <WE> AUTO IRIS PRI SHUTTER PRI MANUAL IRIS SHUT LOWSHUT AUTO Auto exposure mode (Iris, Shutter, AGC) IRIS PRI Iris priority auto exposure mode. SHUTTER PRI Shutter priority auto exposure mode. Auto gain control on/off. MANUAL Manual exposure mode (Iris, Shutter, AGC) LOW-SHUT Display Low-Shutter mode (Mode can be changed in the...
  • Page 18 5.2.4 TITLE TITLE <TITLE MENU> A. TITLE B. Character Table C. Command Line : Move to left : Move to right < : Erase a left character > : Erase a right character S : Save title E : End 5.2.5 DISPLAY/ALARM <DISPLAY/ALARM>...

  • Page 19: Cam Set

    5.2.6 CAM SET <CAM SET> BRIGHTNESS SHARPNESS DISTANCE MAX LOW SHUT PROTOCOL SAVE PROTOCOL & BPS Select the camera ID (1 ~ 255) Select serial communication speed (2400 / 4800 / 9600 / 19200) BRIGHTNESS Select brightness level (0 ~ +90) Default value is 30.
  • Page 20 5.2.7 EFFECT <EFFECT> D-ZOOM NEGA/POSI MIRROR FREEZE D-ZOOM Digital Zoom on/off. NEGA/POGI Select the Negative or Positive picture. Select Color & B/W picture or EXT mode. MIRROR Select horizontal reverse picture. Picture In Picture on/off. FREEZE Select real and still picture. Day &...
  • Page 21 5.2.8 PRESET <PRESET> FOCUS SYNC INIT LOAD SAVE SHOT ZOOM PRESET SET ZOOM PRESET FOCUS Select auto, manual, pushauto mode. SYNC Select internal or line lock mode. Sync phase is adjustable in line lock mode. INIT Camera initialize mode selection(DEFAULT / PRESET). LOAD Load default or preset parameters of camera (DEFAULT / PRESET).

  • Page 22: Troubleshooting And Maintenance

    Troubleshooting and Maintenance 6.1 TROUBLESHOOTING If problems occur, verify the installation of the camera with the instruction in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information.

  • Page 23: Specifications

    Specifications MODEL NTSC Power Source DC 12V POWER Power Consumption 5.5 Watts Image Sensor 1/4" SONY Super HAD CCD 811(H) x 508(V) 795(H) x 596(V) Total Pixels Scanning System 2:1 interlace Scanning Frequency 15,734KHz(H), 59,94Hz(V) 15,625KHz(H), 50Hz(V) Sync. System Internal / External (Linelock) Resolution 480 TV lines(Color), 530 TV lines(B/W) Min.

  • Page 24: Dimensions

    Dimensions Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...
