User Manual

HRP615 / 717 / 819
Options :
- AV / BNC
- Touchscreen
- Front NEMA 4 / IP 65 protection
- DC power
- DVI

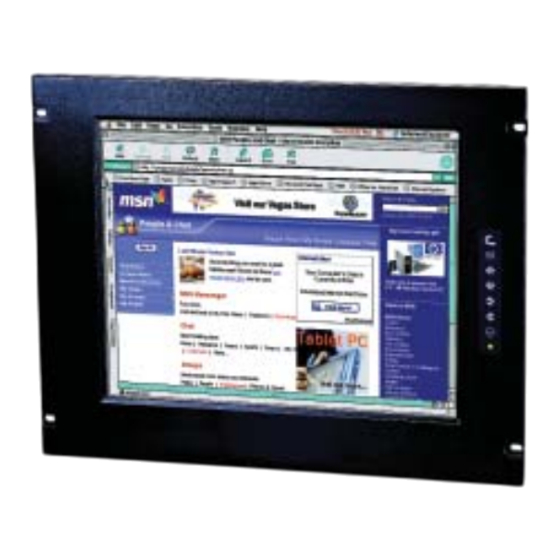

Rackmount LCD Display
- SunReadable
- 15", 17", 19" screen size

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRP615 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberView HRP615

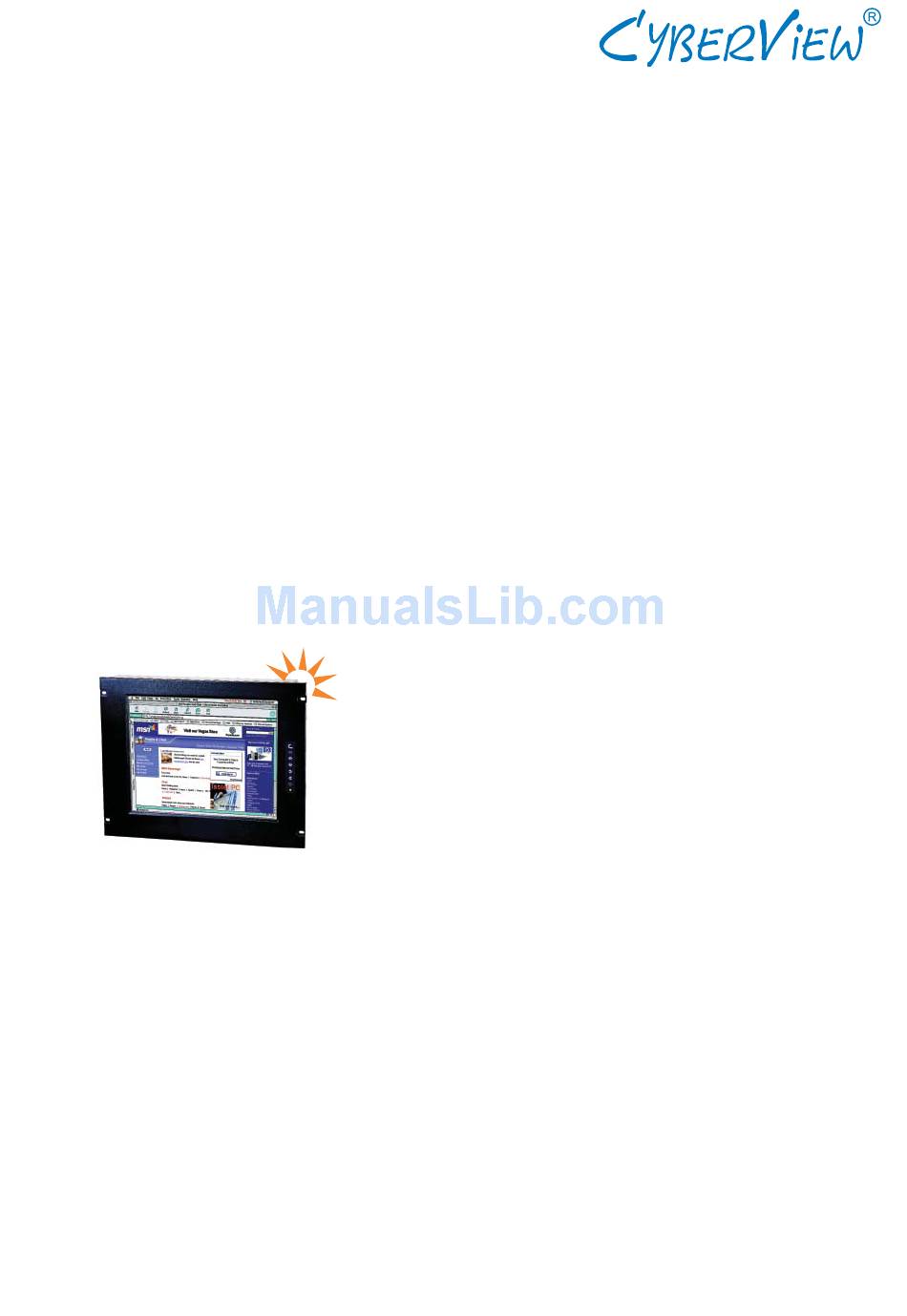

  • Page 1: User Manual

    User Manual Rackmount LCD Display HRP615 / 717 / 819 - SunReadable - 15", 17", 19" screen size Options : - AV / BNC - Touchscreen - Front NEMA 4 / IP 65 protection - DC power - DVI...
  • Page 2 BlankPage...
  • Page 3: Table Of Contents

    Contents Chapter 1 Getting Started Important Safeguards............1 Package Contents...............2 Before Installation...............3 Unpacking................3 Optional Accessories............3 Peripheral Products.............4 Structure Diagram...............4 Installation................5 Connection.................6 Chapter 2 Operation On-screen Display Operation..........6 On-screen Menu..............7 Chapter 3 LCD Specifi cation ............8 Chapter 4 AV, BNC, DVI Options DVI-D Option...............9 S-Video + RCA Input Option..........9 S-Video + BNC Input Option..........9...
  • Page 4: Important Safeguards

    Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...
  • Page 5: Package Contents

    Chapter 1 1.2 Package Contents Rackmount LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc...
  • Page 6: Before Installation

    Chapter 1 1.3 Before Installation ■ It is very important to locate the Rackmount LCD Display in a suitable environment. ■ The surface for placing and fi xing the Rackmount LCD Display should be stable and level or mounted into a suitable cabinet.
  • Page 7: Peripheral Products

    Chapter 1 1.6 Peripheral Products Item Model No. Description IP-802 / IP-1602 8 / 16-port IP PS/2 KVM CV-802 / CV-1602 8 / 16-port two console PS/2 KVM DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16-port PS/2 KVM CV-S801 / CV-S1601 8 / 16-port USB KVM UIP-1602 / UIP-3202...
  • Page 8: Installation

    Chapter 1 1.8 Installation ■ Install each screws shown in Figure 1. Figure 1. ■ Fixed the LCD into the rack. * M6 screws is not provided. Figure 2.
  • Page 9: Connection

    Chapter 1 1.9 Connection DB-15 VGA female connector Power input The Rackmount LCD Display are hot-pluggable, but components of connected Caution : devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un- plugging cables while servers and KVM are powered on may cause irreversible damage of the servers, KVM and Rackmount LCD Display.
  • Page 10: On-Screen Menu

    Chapter 2 2.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brightness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion.
  • Page 11: Chapter 3 Lcd Specifi Cation

    Chapter 3 3.1 LCD Specifi cations Item Description 1U rack mounting on slide-out rails Form Factor Grade A industrial TFT LCD panel LCD Grade 15" TFT 17" TFT 19" TFT Diagonal Size 1024 x 768 1280 x 1024 1280 x 1024 Max.
  • Page 12: Dvi-D Option

    Chapter 4 4.1 DVI-D Option DVI-D Power Remarks ■ Package includes with a 6' DVI-D cable 4.2 S-Video + RCA Input Option S-Video Power Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 4.3 S-Video + BNC Input Option S-Video BNC Power Remarks...
  • Page 13: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    Chapter 4 4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:...
  • Page 14 Chapter 4 4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Display mode Main menu Sub menu S-Video √ √ √ √ Brightness √ √ √ √ Contrast √ √ √ √ Image Sharpness √ √ Saturation √ √ √...
  • Page 15: Chapter 5 Touchscreen Options

    Chapter 5 5.1 Touchscreen Options For USB touchscreen Power For serial touchscreen Serial Power e-Resistive Model -15TRB / -15TRS -17TRB / -17TRS -19TRB / -19TRS 15" 17" 19" Screen size USB / serial Interface 82%±5% Optical transmittance ≥3H (JIS K5400) Surface hardness Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux Operating system...
  • Page 16: Chapter 6 Front Nema 4 / Ip65 Options

    Chapter 6 6.1 Front NEMA 4 / IP65 Options Rear case LCD panel 4mm protective glass (Front NEMA 4 / IP65 protection) Aluminum front panel Remarks ■ 4mm thickness of protective glass is not toughened one, please handle it carefully. P.13...
  • Page 17: Chapter 7 Dc Power Options

    Chapter 7 7.1 DC Power Options DC Power input Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage: 12-Volt...
  • Page 18: Chapter 8 Troubleshooting

    Chapter 8 8.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer.
  • Page 19: Chapter 9 Dimensions

    Weight Weight 480 x 62 mm 565 x 406 x 156 mm 6 kg 8 kg HRP615 series 18.9 x 2.4" 22.2 x 16 x 6.1" 13 lb 18 lb 480 x 62 mm 565 x 450 x 156 mm 7 kg 8.5 kg...
  • Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Austin Hughes Electronics Ltd. All rights reserved. CV-HP16-0308V4...
