Intermec EasyCoder 3240 Getting Started Manual page 48

EasyCoder 3240 Printer Getting Started
2. To compensate for uneven print quality, turn the bias adjust screw as
3. Replace the media cover.
Note: You must properly adjust the bias adjust screw to prevent premature printhead
failure and excessive platen wear.
3-12
GuideCo d e 39 Co d e 39
shown.
Note: When you adjust the bias adjust screw, the printhead rests evenly on the
drive roller and results in even print quality.

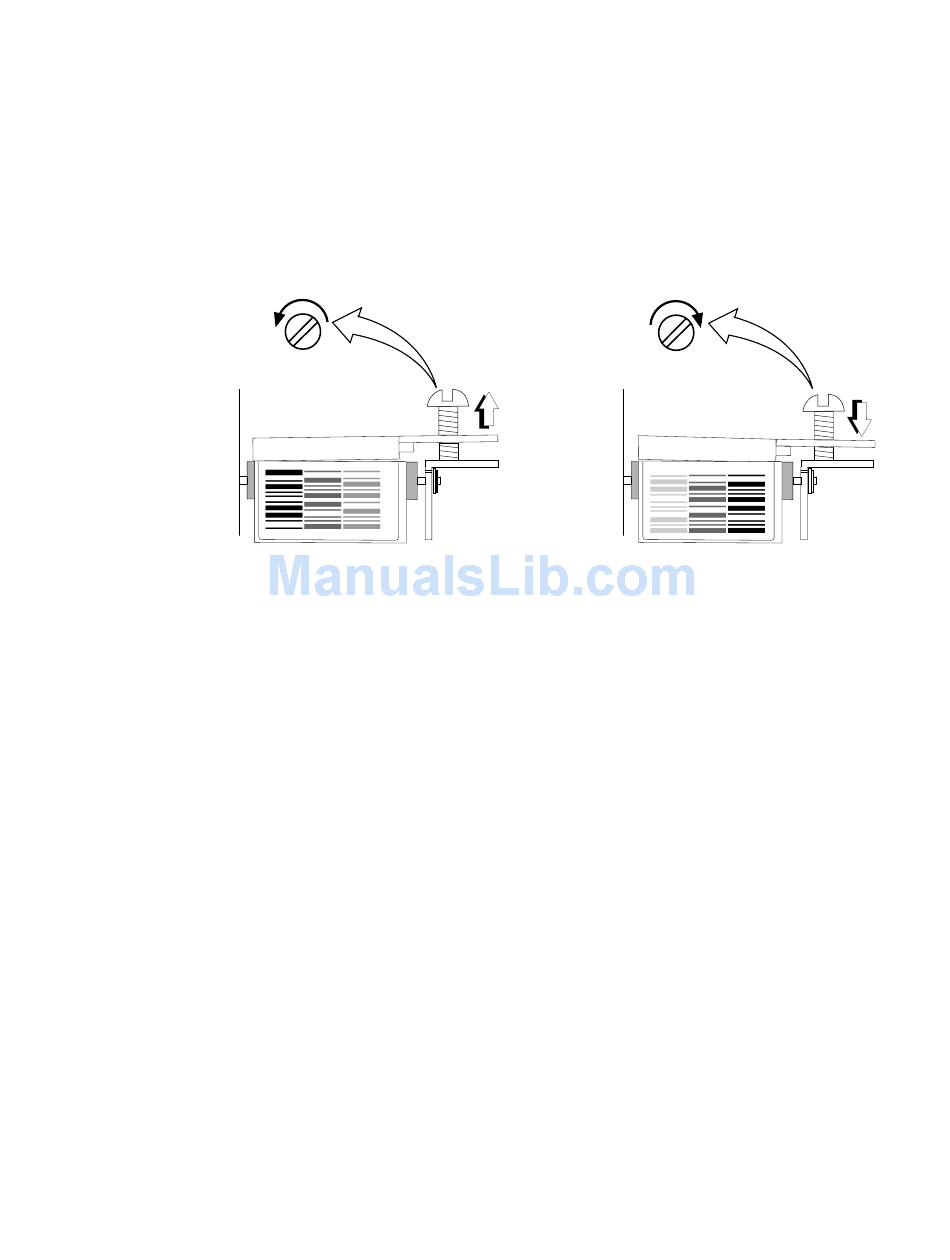

If printing is light on
the right side of label,
turn the bias adjust screw
counterclockwise.
If printing is light on
the left side of label, turn
the bias adjust screw
clockwise.
3240G.014
