Intermec EasyCoder 3240 Getting Started Manual page 29

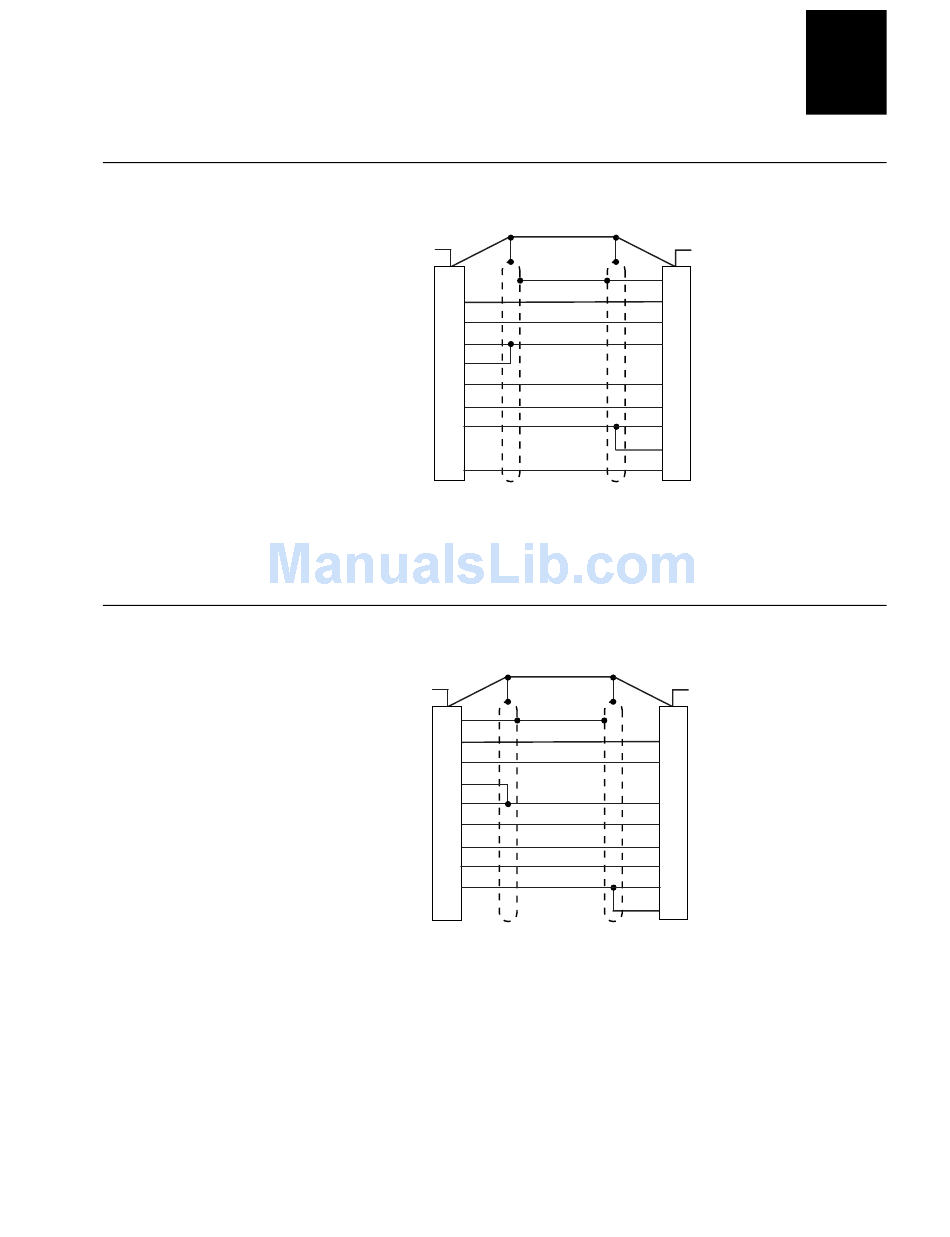

RS-232 Null Modem Cable for PC/AT (Part Number 048693)
DATA TERMINAL READY
RS-232 Null Modem Cable for PC/XT (Part Number 048668)
25-PIN (SOCKET) D-SUB
DATA TERMINAL READY
NugFont
HelvC
9-PIN (SOCKET) D-SUB
METAL BACKSHELL
RECEIVED DATA 2
TRANSMITTED DATA 3
CLEAR TO SEND 8
REQUEST TO SEND 7
4
DATA SET READY 6
CARRIER DETECT 1
GROUND 5
AT
NOTE: The metal backshell is connected directly
to the shield to achieve electrostatic discharge
(ESD) immunity.
METAL BACKSHELL
CHASSIS GROUND 1
TRANSMITTED DATA 2
RECEIVED DATA
3
REQUEST TO SEND 4
CLEAR TO SEND 5
DATA SET READY 6
GROUND 7
20
CARRIER DETECT
8
PC
NOTE: The metal backshell is connected directly
to the shield to achieve electrostatic discharge
(ESD) immunity.
C o d e 39
Connecting the Printer
SHIELD
25-PIN (PLUG) D-SUB
METAL BACKSHELL
1 CHASSIS GROUND
2 TRANSMITTED DATA
3 RECEIVED DATA
8 CARRIER DETECT
6 DATA SET READY
20 DATA TERMINAL READY
5 CLEAR TO SEND
4 REQUEST TO SEND
7 GROUND
PRINTER
SHIELD
25-PIN (PLUG) D-SUB
METAL BACKSHELL
1 CHASSIS GROUND
3 RECEIVED DATA
TRANSMITTED DATA
2
8 CARRIER DETECT
20 DATA TERMINAL READY
7 GROUND
6 DATA SET READY
4
5 CLEAR TO SEND
PRINTER
2
3240G.023
3240G.022
2-5
